AFAM chain kit for Yamaha FZ6 S Fazer 04-06 530 XSR2G chain kit

AFAM chain kit for Yamaha FZ6 S Fazer 04-06 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit for Yamaha FZ6 S Fazer RJ071 2004-2006

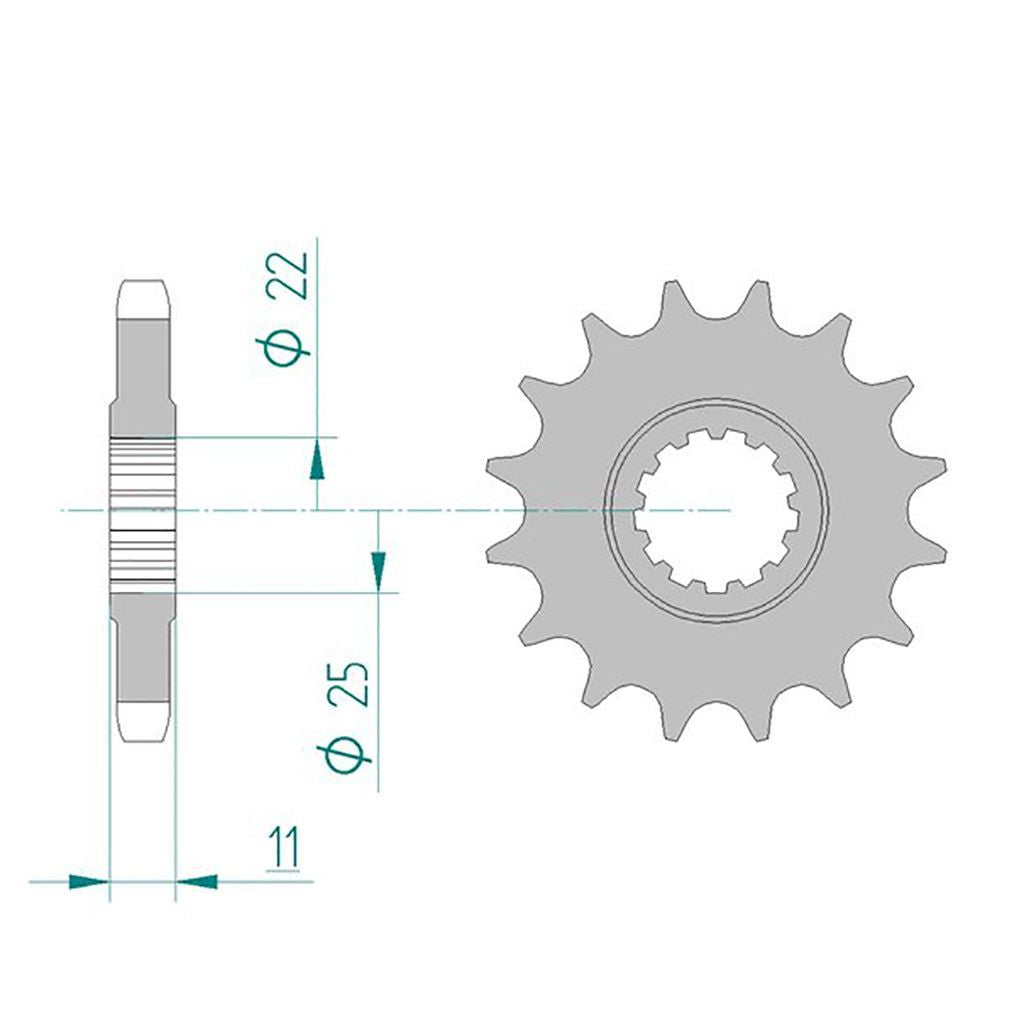

• Front sprocket: AFAM front sprocket #530 16 teeth - a21602.16
• Chain: AFAM chain 530 XSR2-G Xs-ring 118 with rivet link - a530xsr2.g.118

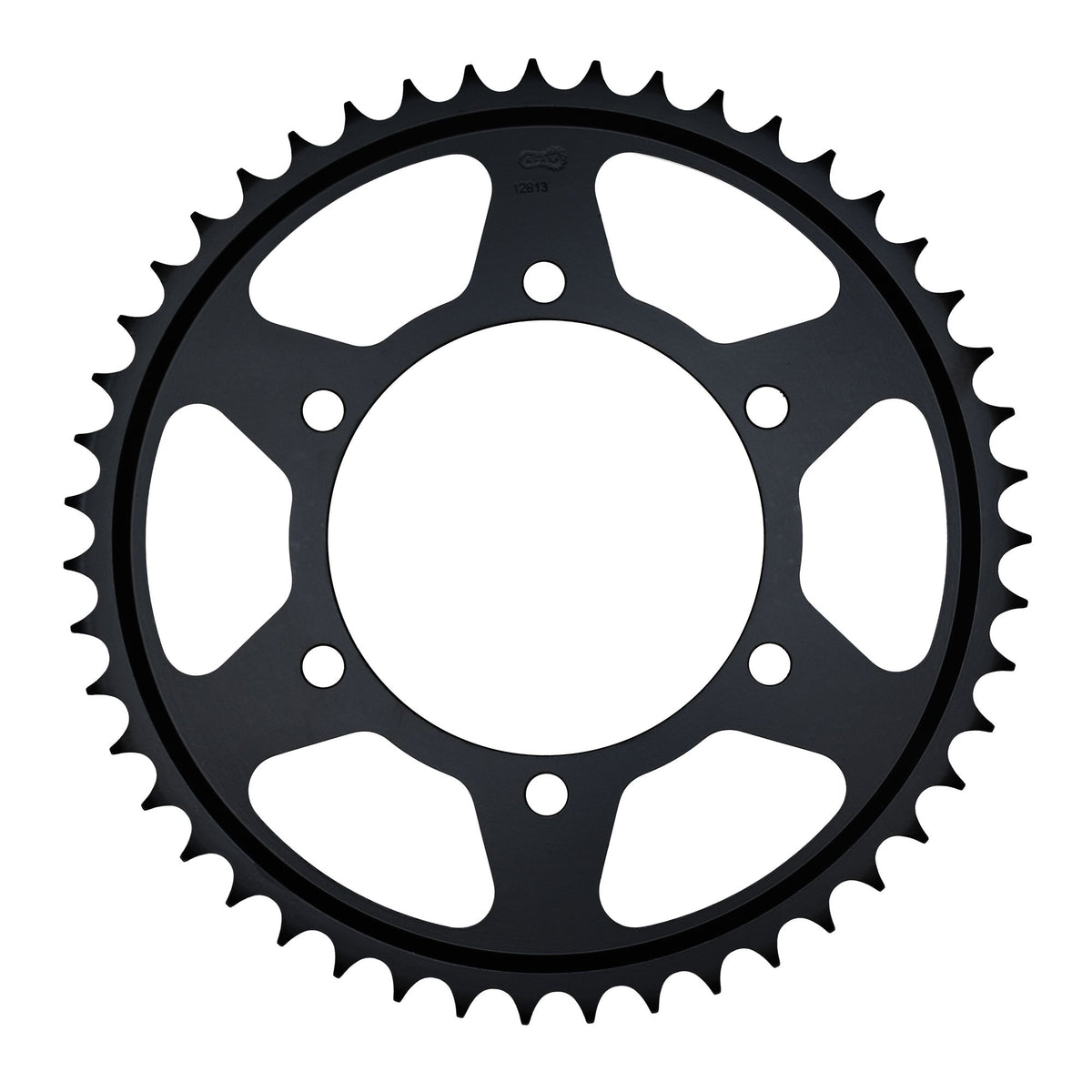

• Rear sprocket: AFAM rear sprocket STEEL #530 46 teeth - a12813.46
• Gear ratio front sprocket-chain-rear sprocket: 16-118-46

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Colour: Gold
Application by displacement: up to 1100 cc / road and sport

Technical specifications:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-54345

Suitable for

Yamaha 501 - 750 cc FZ6 S Fazer RJ071 2004
Yamaha 501 - 750 cc FZ6 S Fazer RJ071 2005
Yamaha 501 - 750 cc FZ6 S Fazer RJ071 2006
