AFAM chain kit for Yamaha FZR 1000 Genesis 87-88 530 XHR2G chain kit

AFAM Chain Kit for Yamaha FZR 1000 Genesis 87-88 530 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Yamaha FZR 1000 Genesis 2LA 1987-1988 conversion chain kit #530

• Front sprocket: AFAM front sprocket #530 16 teeth - a21602.16
• Chain: AFAM chain 530 XHR2-G Xs-Ring 110 with rivet link - a530xhr2.g.110

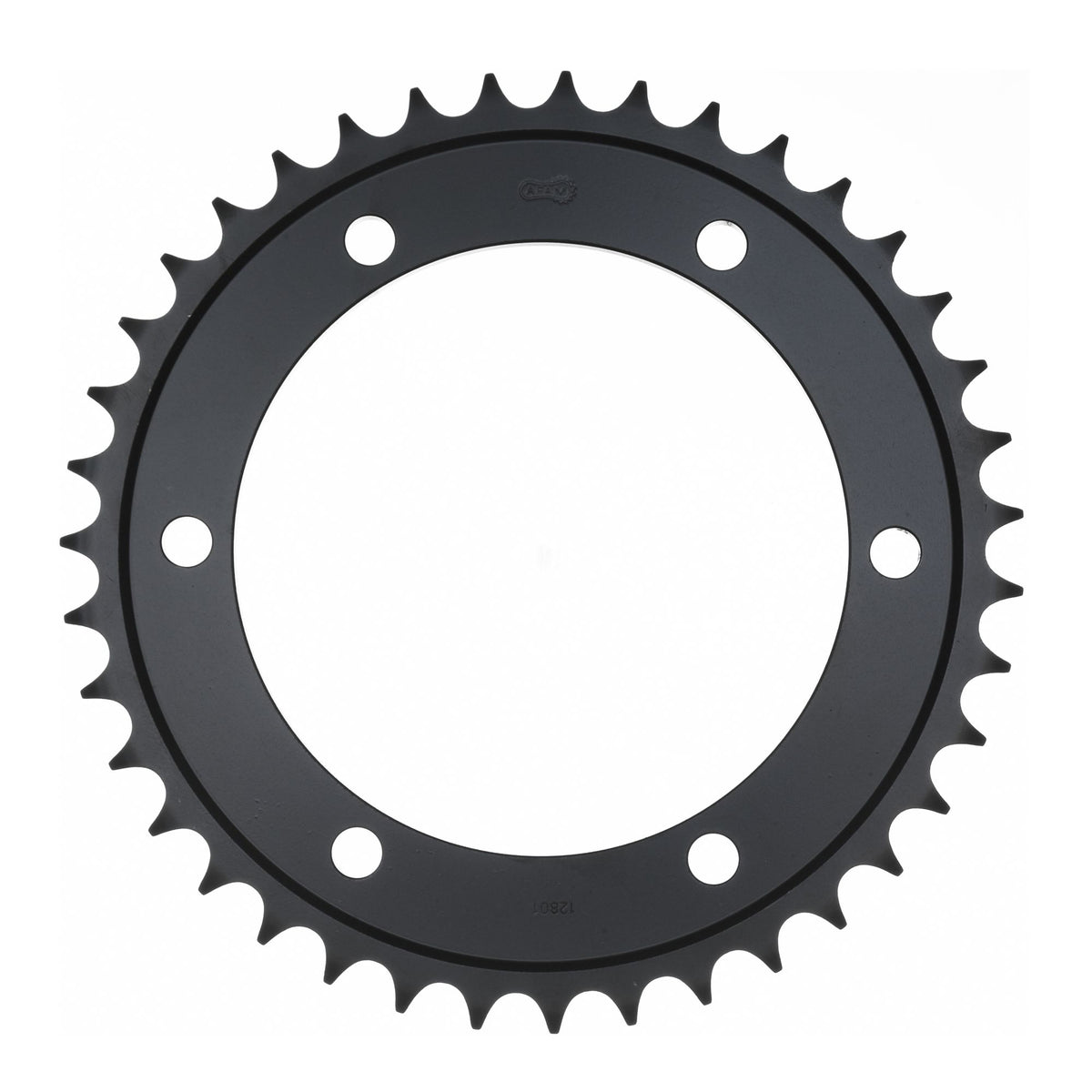

• Rear sprocket: AFAM STEEL rear sprocket #530 46 teeth - a12801.46
• Gear ratio front sprocket-chain-rear sprocket: 16-110-46 conversion #530

AFAM 530 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1400 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-53032

Suitable for

Yamaha 751 - 1000 cc FZR 1000 Genesis 2LA 1987
Yamaha 751 - 1000 cc FZR 1000 Genesis 2LA 1988
