AFAM chain kit for Yamaha FZS 1000 Fazer 01-04 530 XSR2G chain kit

AFAM Chain Kit for Yamaha FZS 1000 Fazer 01-04 530 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha FZS 1000 Fazer RN06 2001-2004

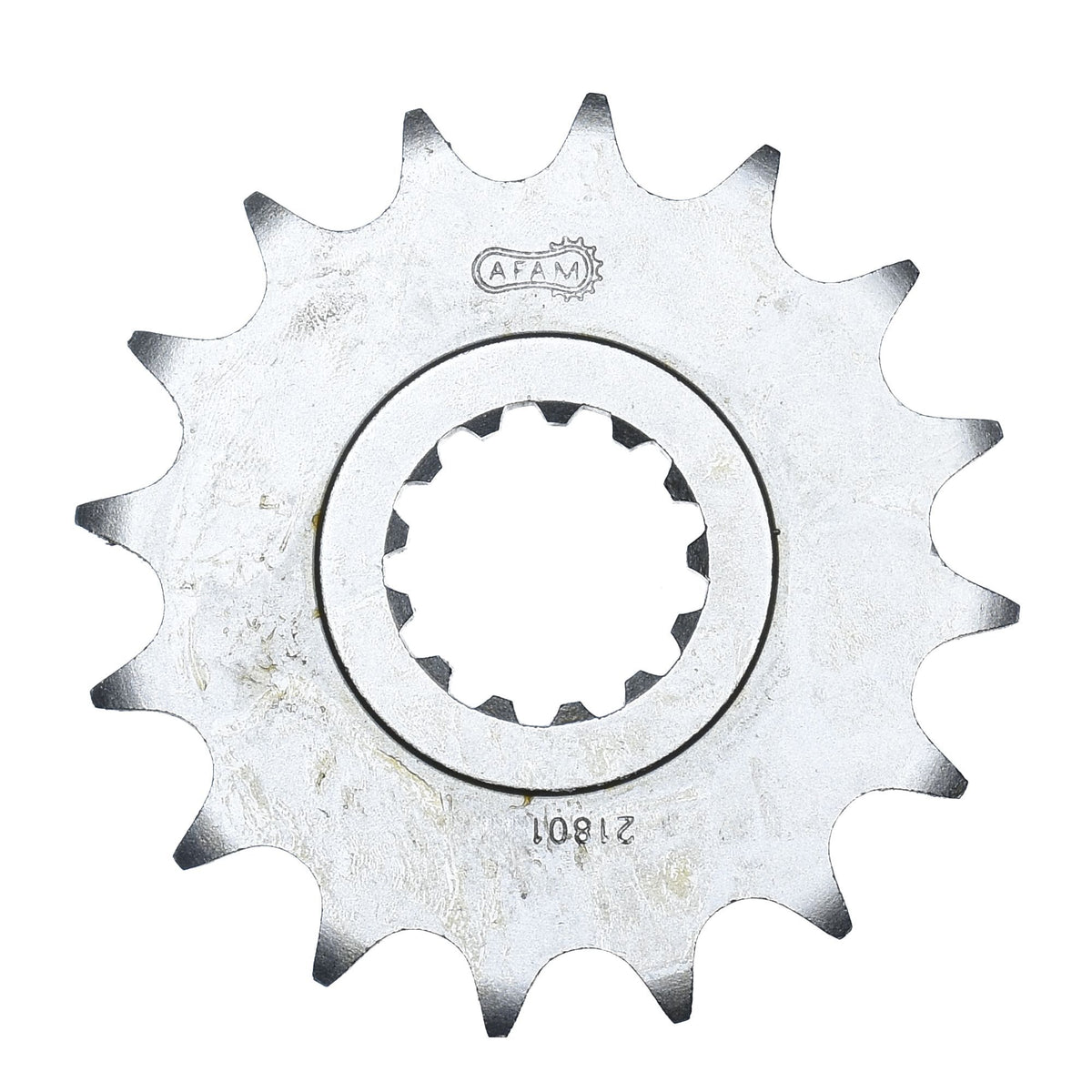

• Sprocket: AFAM sprocket #530 16 teeth - a21801.16
• Chain: AFAM chain 530 XSR2-G Xs-ring 116 with rivet link - a530xsr2.g.116

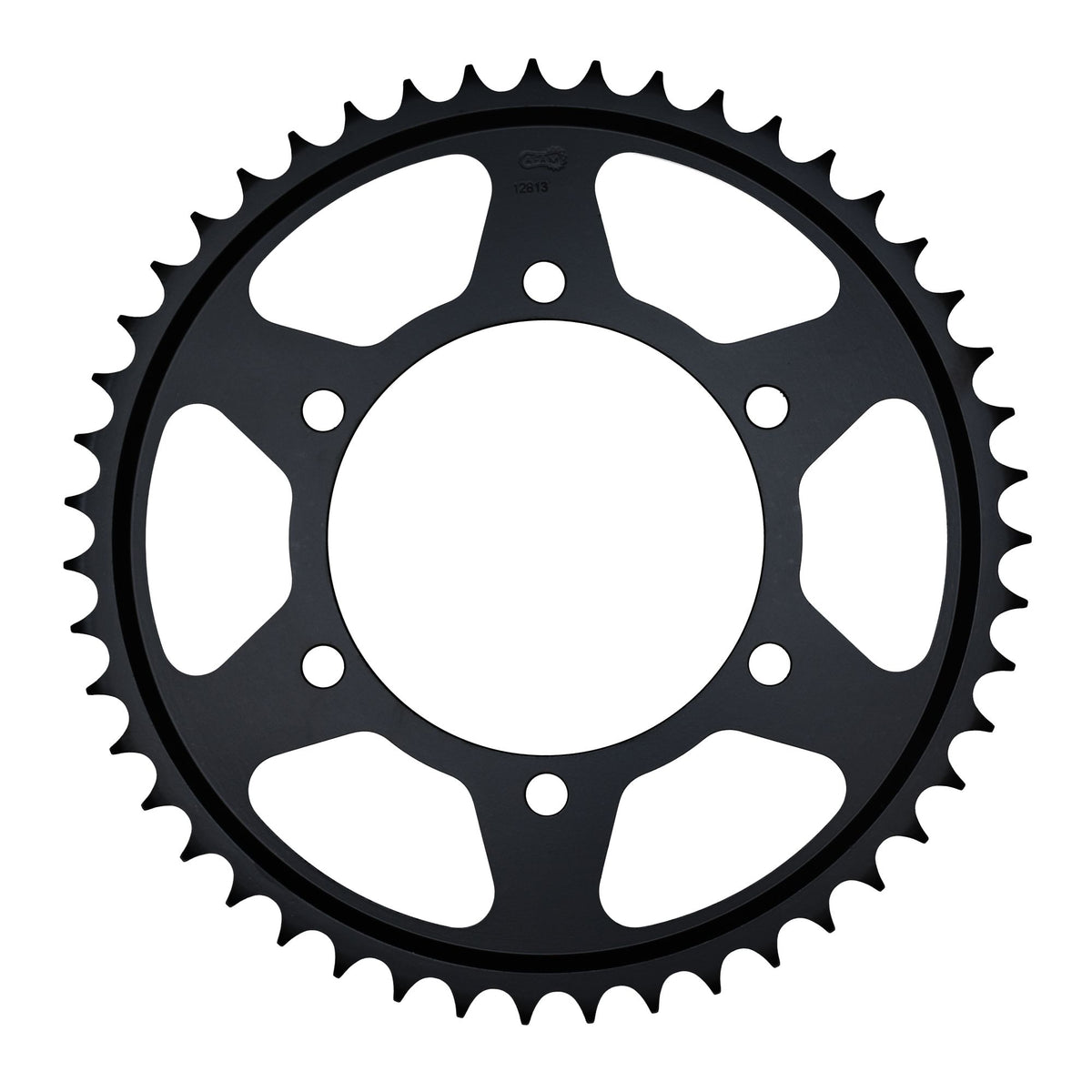

• Rear sprocket: AFAM rear sprocket STEEL #530 44 teeth - a12813.44
• Gear ratio sprocket-chain-rear sprocket: 16-116-44

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-53033

Suitable for

Yamaha 751 - 1000 cc FZS 1000 Fazer RN06 2001
Yamaha 751 - 1000 cc FZS 1000 Fazer RN06 2002
Yamaha 751 - 1000 cc FZS 1000 Fazer RN06 2003
Yamaha 751 - 1000 cc FZS 1000 Fazer RN06 2004
