AFAM chain kit for Yamaha MT-03 06-13 520 XMR3 chain kit

AFAM chain kit for Yamaha MT-03 06-13 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Yamaha MT-03 RM02 2006-2013

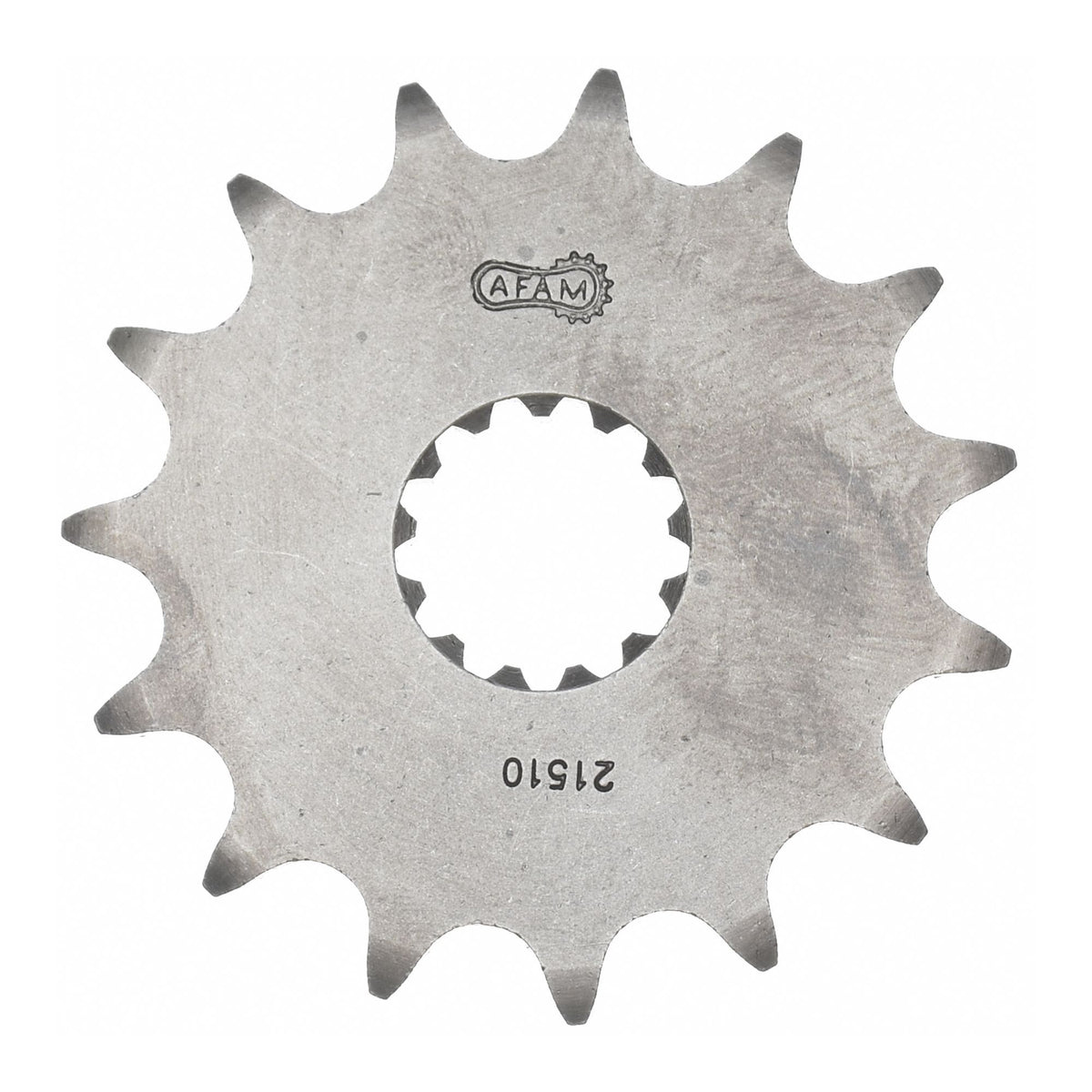

• Sprocket: AFAM sprocket #520 15 teeth - a21510.15
• Chain: AFAM chain 520 XMR3 Xs-ring 112 with rivet link - a520xmr3.112

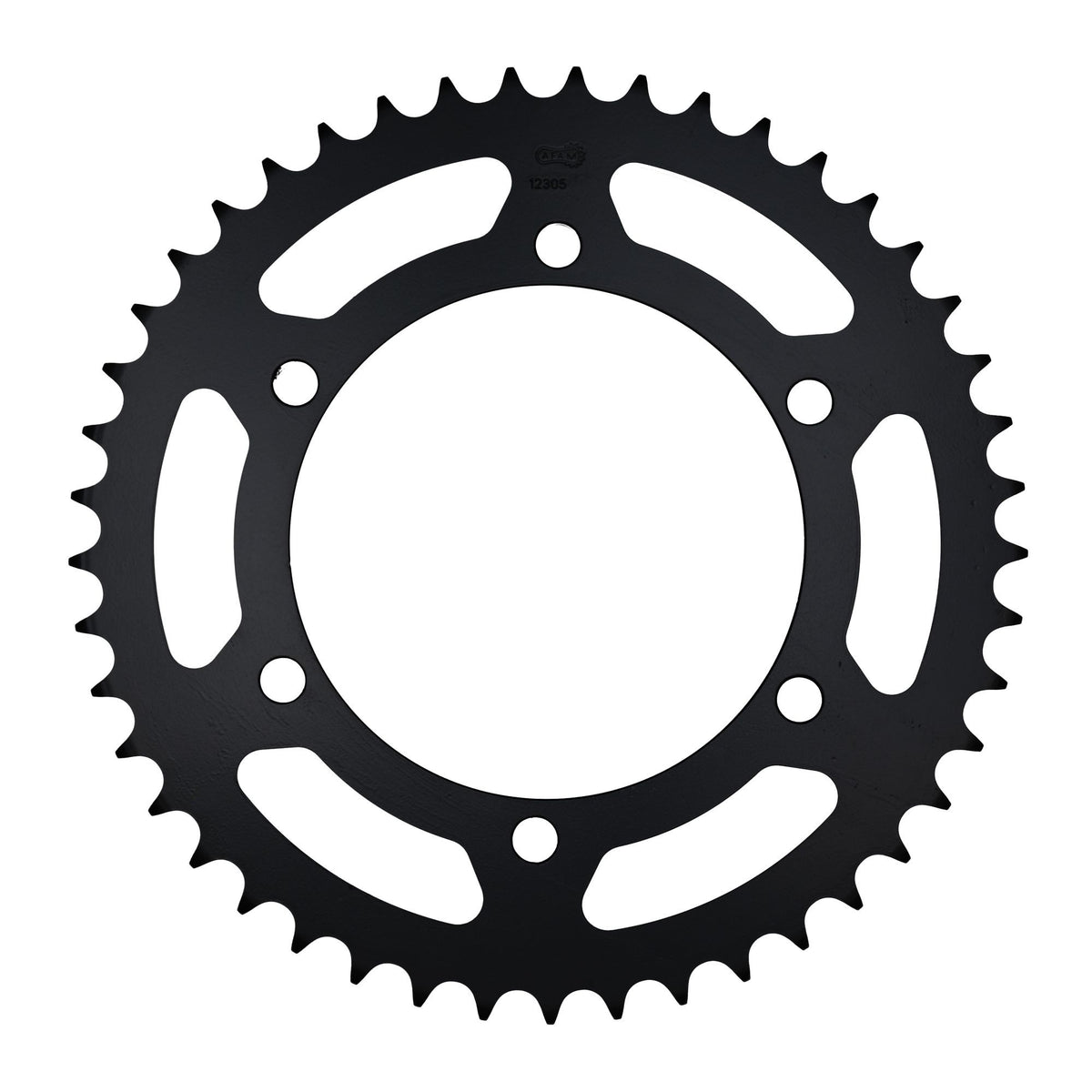

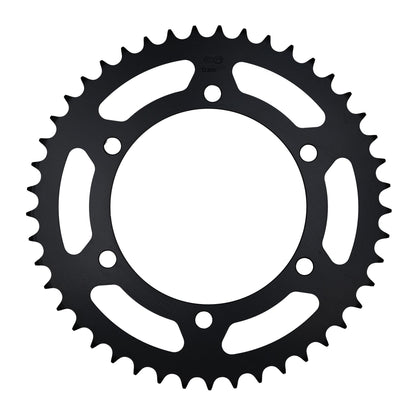

• Rear sprocket: AFAM STEEL rear sprocket #520 47 teeth - a12305.47
• Gear ratio sprocket-chain-rear sprocket: 15-112-47

AFAM 520 XMR3

Reinforced chain with smooth running properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-54603

Suitable for

Yamaha 501 - 750 cc MT-03 RM02 2006
Yamaha 501 - 750 cc MT-03 RM02 2007
Yamaha 501 - 750 cc MT-03 RM02 2008
Yamaha 501 - 750 cc MT-03 RM02 2009
Yamaha 501 - 750 cc MT-03 RM02 2010
Yamaha 501 - 750 cc MT-03 RM02 2011
Yamaha 501 - 750 cc MT-03 RM02 2012
Yamaha 501 - 750 cc MT-03 RM02 2013
