AFAM chain kit for Yamaha MT-03 ABS 18-19 520 XHR2G chain kit

AFAM Chain Kit for Yamaha MT-03 ABS 18-19 520 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit for Yamaha MT-03 ABS RH12 2018-2019

• Sprocket: AFAM sprocket #520 14 teeth - a27500.14
• Chain: AFAM chain 520 XHR2-G Xs-ring 112 with rivet link - a520xhr2.g.112

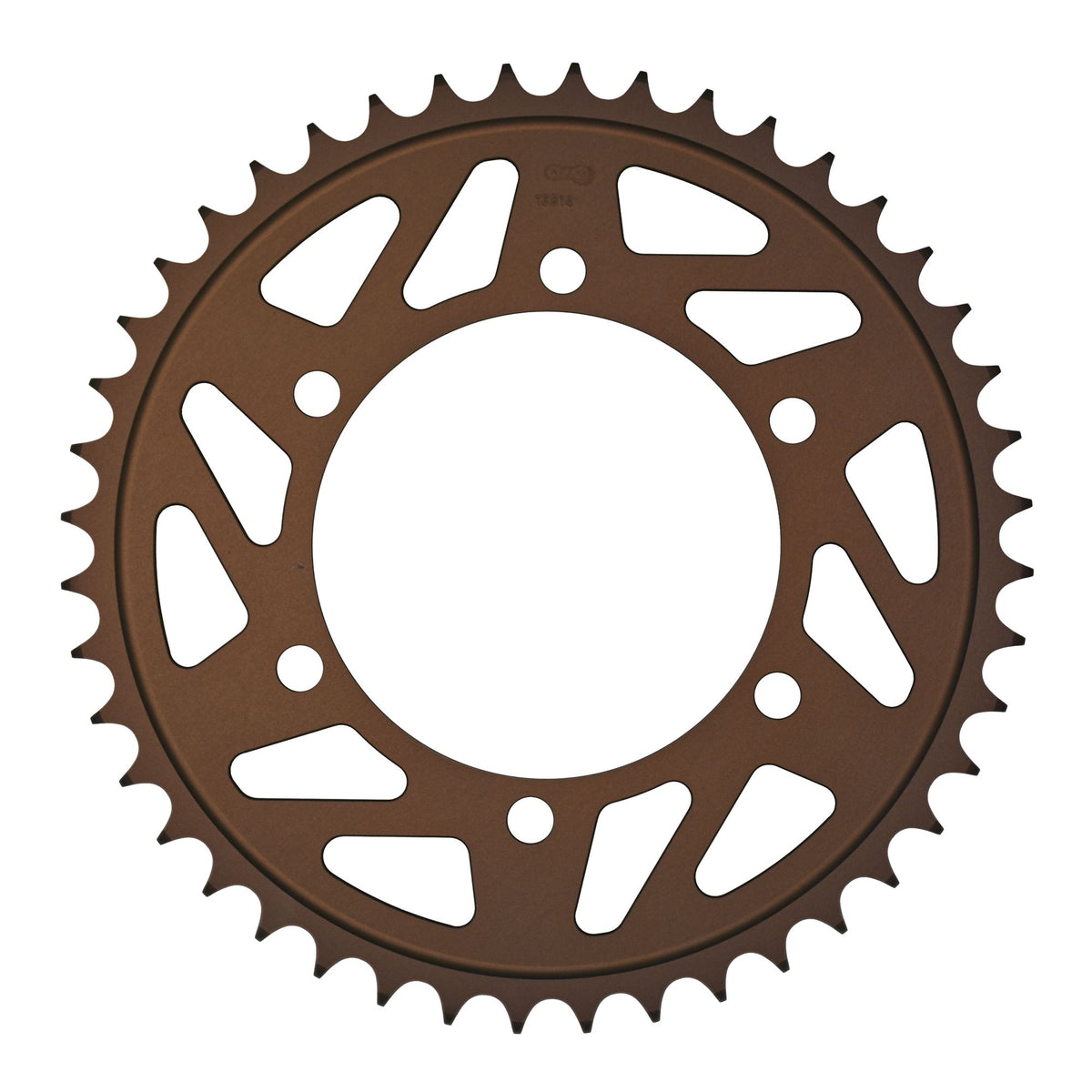

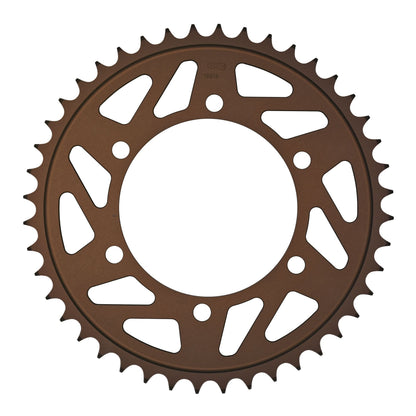

• Rear sprocket: AFAM aluminum rear sprocket #520 43 teeth - a13814.43
• Gear ratio sprocket-chain-rear sprocket: 14-112-43

AFAM 520 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-53806

Suitable for

Yamaha 251 - 500 cc MT-03 ABS RH12 2018
Yamaha 251 - 500 cc MT-03 ABS RH12 2019
