AFAM chain kit for Yamaha MT-07 2025 520 XHR2G chain kit

AFAM Chain Kit for Yamaha MT-07 2025 520 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Yamaha MT-07 RM48 2025-2025

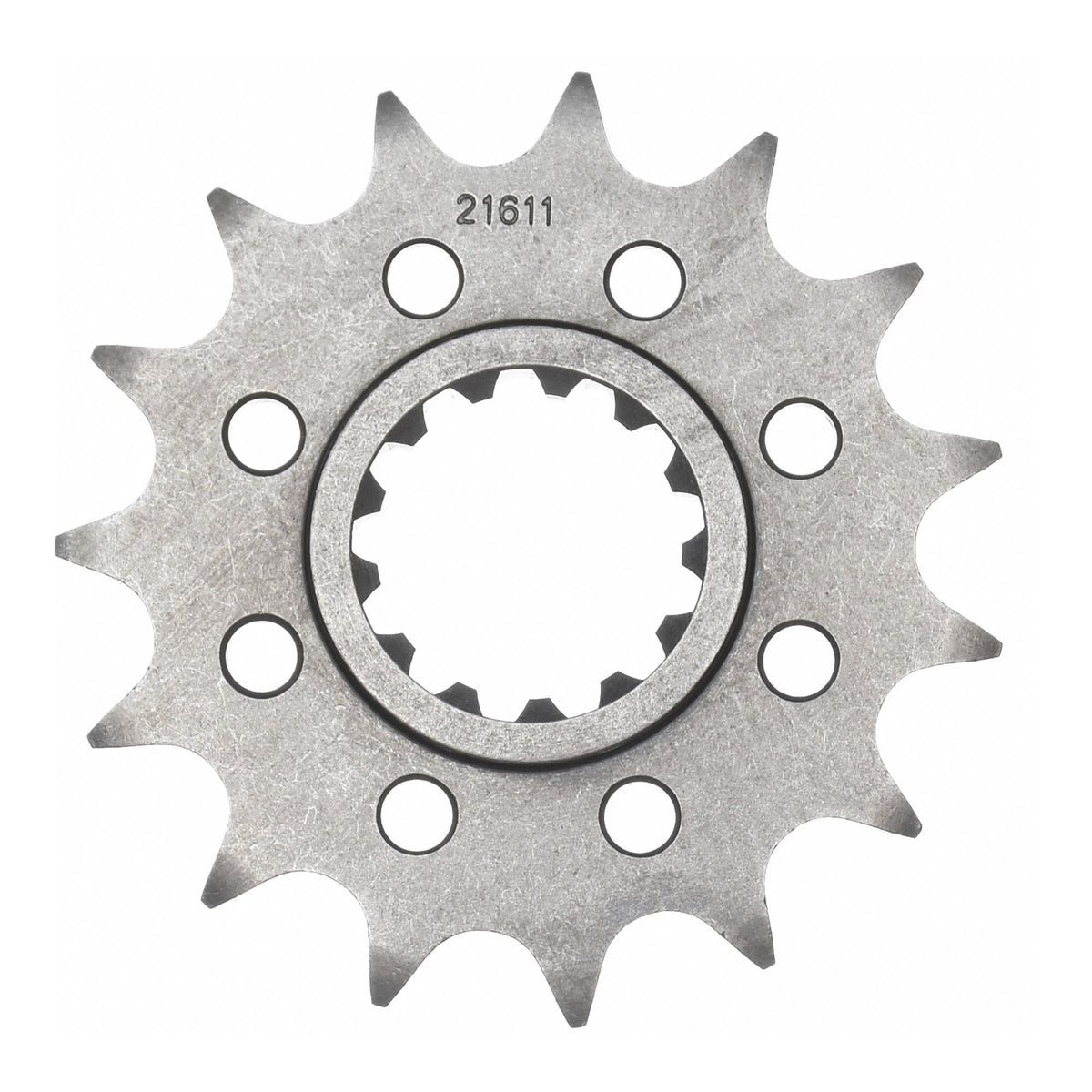

• Front sprocket: AFAM front sprocket #520 16 teeth - a21611.16
• Chain: AFAM chain 520 XHR2-G Xs-ring 108 w. rivet master link - a520xhr2.g.108
• Rear sprocket: AFAM rear sprocket STEEL #520 43 teeth - a12609.43
• Gear ratio front sprocket-chain-rear sprocket: 16-108-43

AFAM 520 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, which were not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-77826

Suitable for

Yamaha 501 - 750 cc MT-07 RM48 2025
