AFAM chain kit for Yamaha MT-10 SP ABS 16-22 525 XSR2G chain kit

AFAM chain kit for Yamaha MT-10 SP ABS 16-22 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit for Yamaha MT-10 SP ABS RN45 2016-2022

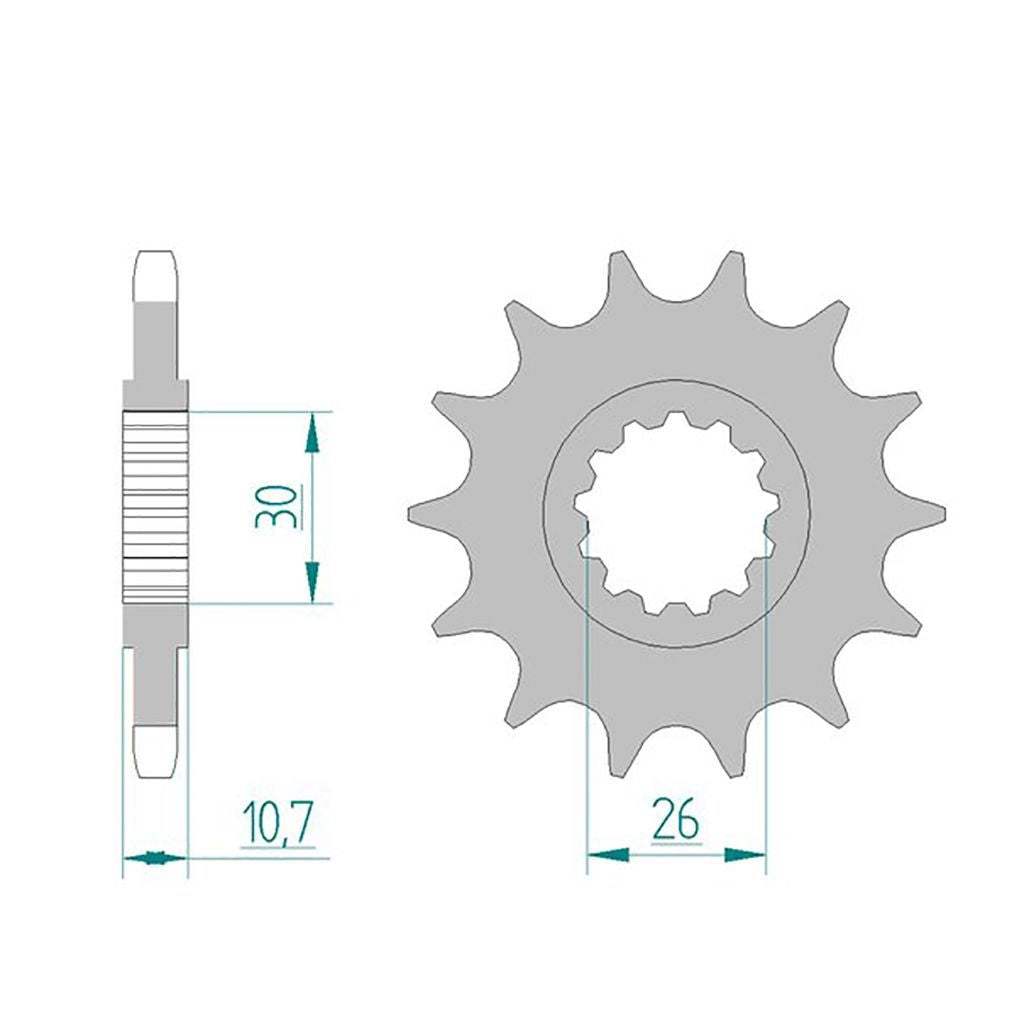

• Sprocket: AFAM sprocket #525 16 teeth - a21607.16
• Chain: AFAM chain 525 XSR2-G Xs-ring 114 links with rivet link - a525xsr2.g.114

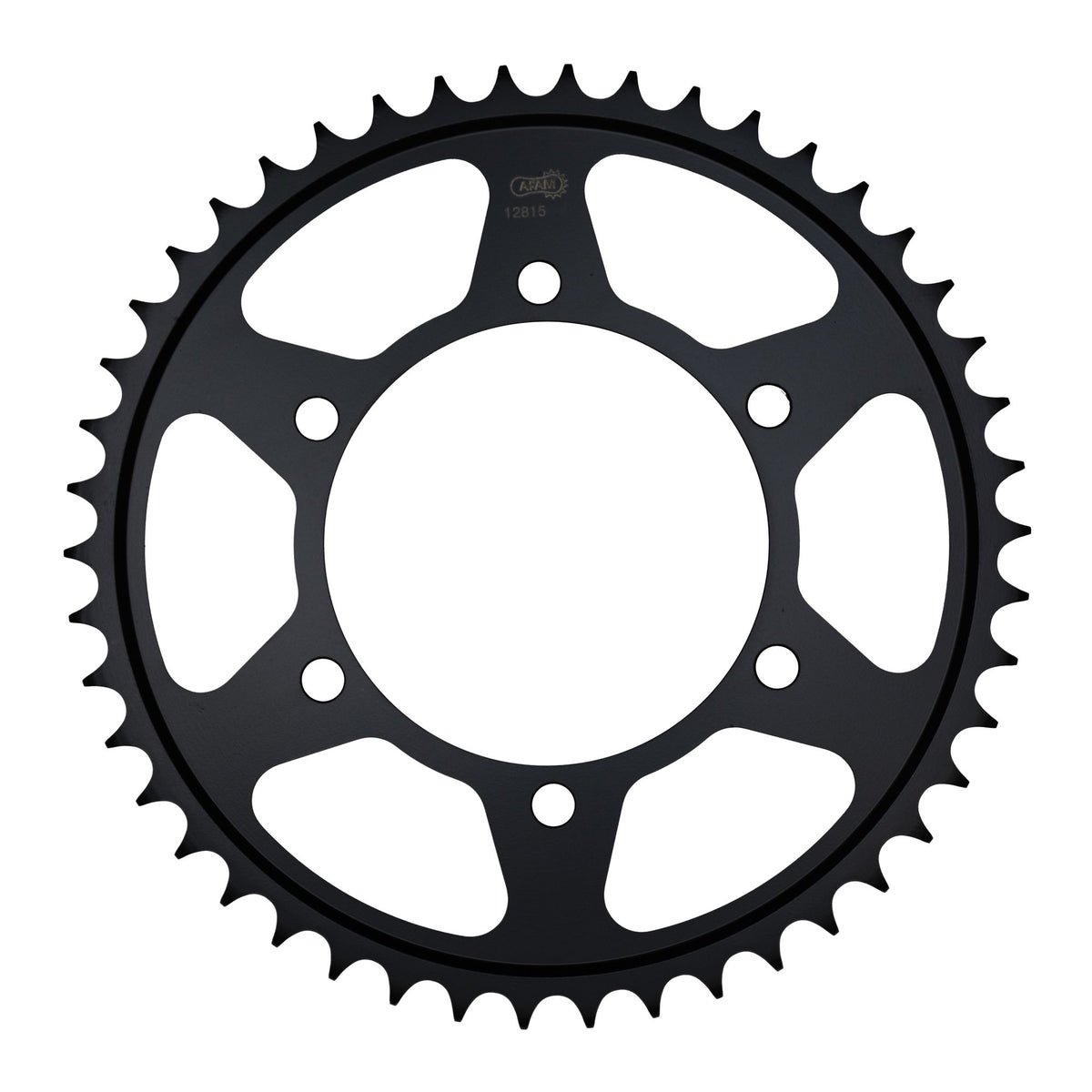

• Rear sprocket: AFAM STEEL sprocket #525 43 teeth - a12815.43
• Gear ratio sprocket-chain-rear sprocket: 16-114-43

AFAM 525 XSR2-G

Super reinforced chain with smooth running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-39377

Suitable for

Yamaha 751 - 1000 cc MT-10 SP ABS RN45 2016
Yamaha 751 - 1000 cc MT-10 SP ABS RN45 2017
Yamaha 751 - 1000 cc MT-10 SP ABS RN45 2018
Yamaha 751 - 1000 cc MT-10 SP ABS RN45 2019
Yamaha 751 - 1000 cc MT-10 SP ABS RN45 2020
Yamaha 751 - 1000 cc MT-10 SP ABS RN45 2021
Yamaha 751 - 1000 cc MT-10 SP ABS RN45 2022
