AFAM chain kit for Yamaha MT-125 ABS 15-16 428 R1G chain kit

AFAM Chain Kit for Yamaha MT-125 ABS 15-16 428 R1G Chain Kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha MT-125 ABS RE11 2015-2016

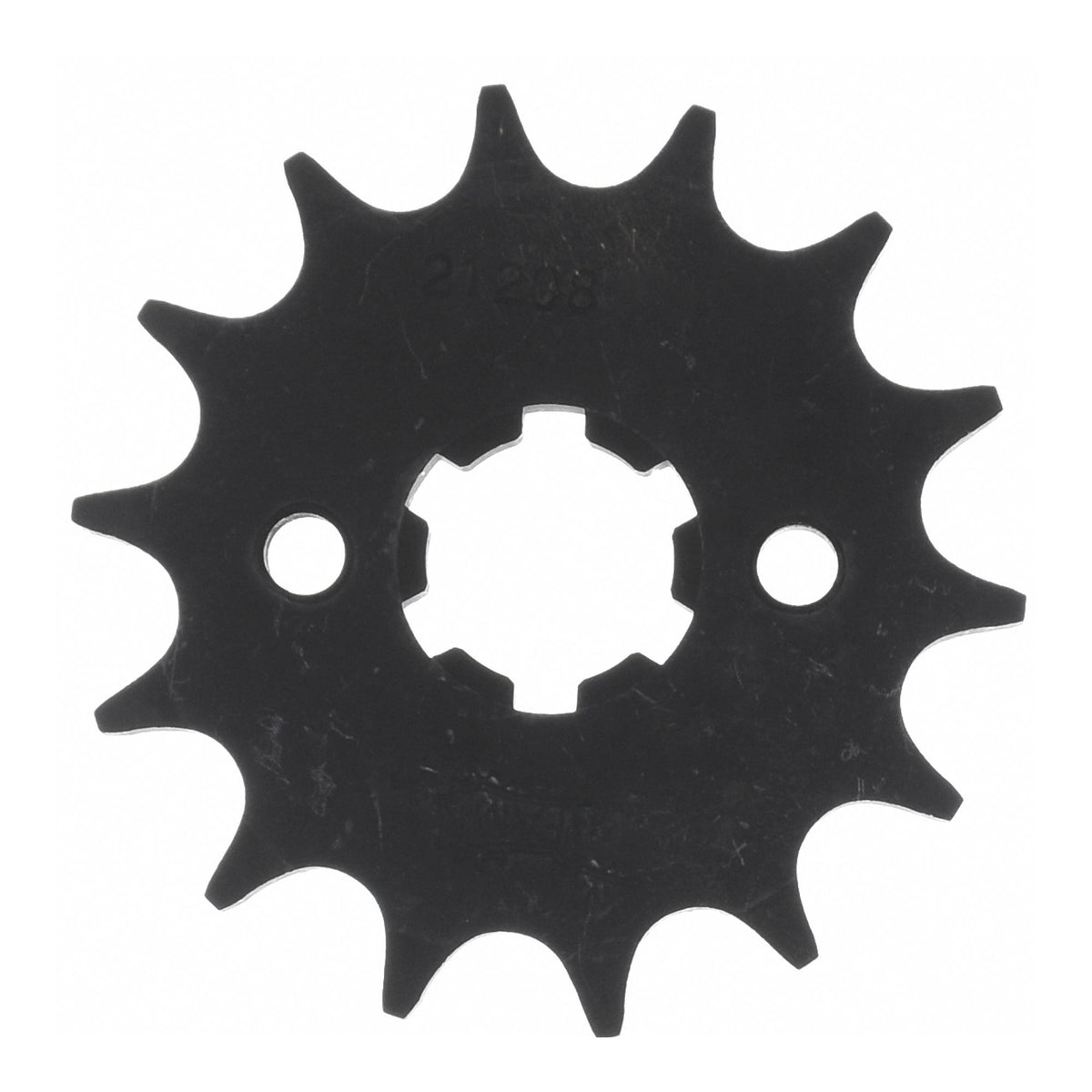

• Sprocket: AFAM sprocket #428 14 teeth - a21208.14
• Chain: AFAM chain 428 R1-G reinforced 132 with clip link - a428r1.g.132

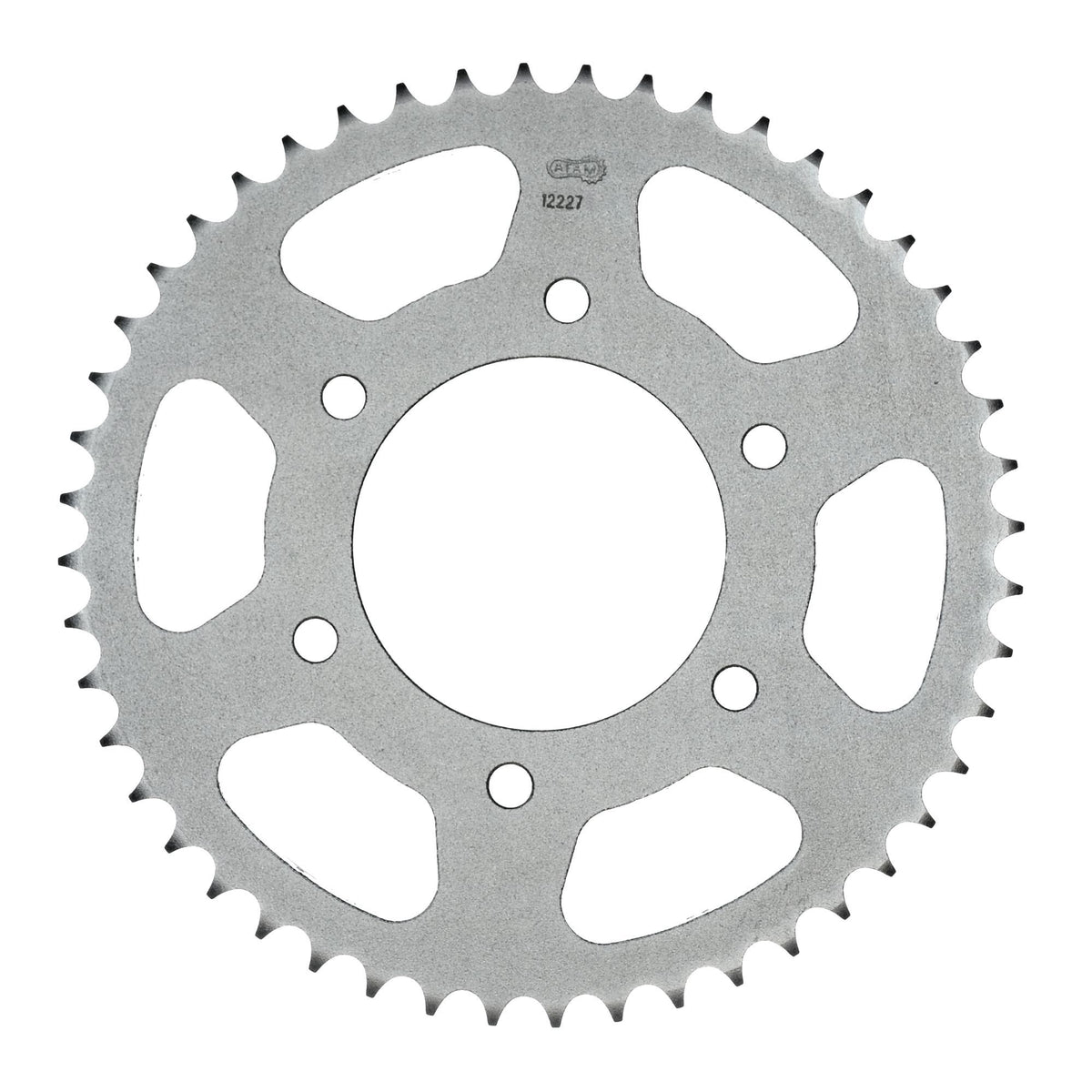

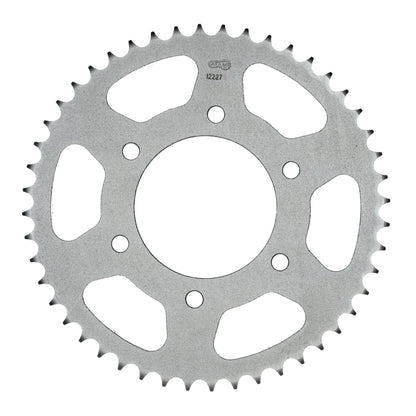

• Rear sprocket: AFAM rear sprocket STEEL #428 48 teeth - a12227.48
• Gear ratio sprocket-chain-rear sprocket: 14-132-48

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical data:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-53160

Fits

Yamaha 101 - 125 ccm MT-125 ABS RE11 2015
Yamaha 101 - 125 ccm MT-125 ABS RE11 2016
