AFAM chain kit for Yamaha SR 500 G (cast wheel) 79-83 530 XMR3 chain kit

AFAM chain kit for Yamaha SR 500 G (cast wheel) 79-83 530 XMR3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Yamaha SR 500 G (cast wheel) 2J4 1979-1983

• Front sprocket: AFAM rubberized sprocket #530 Silent Sprocket 16 teeth - a28400oem.16
• Chain: AFAM chain 530 XMR3 Xs-ring 102 w. rivet link - a530xmr3.102

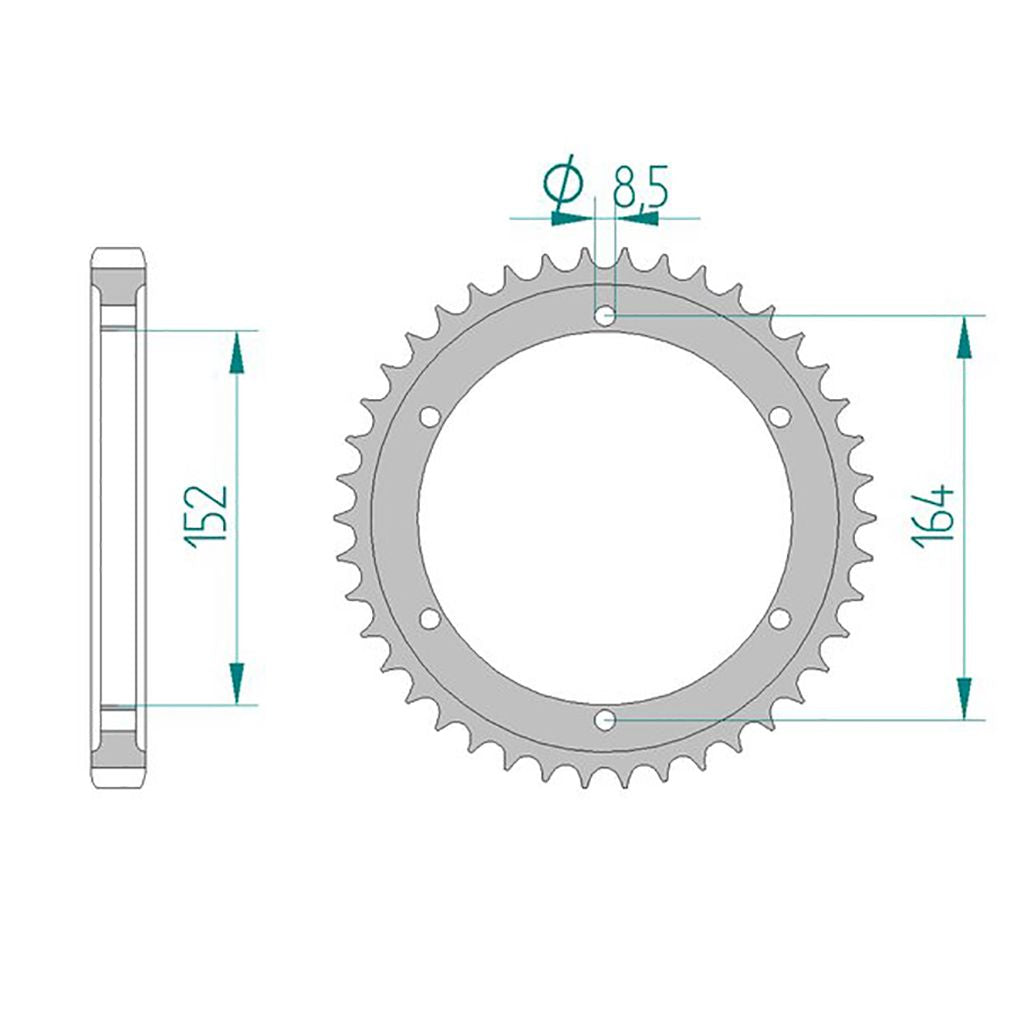

• Rear sprocket: AFAM steel sprocket #530 42 teeth - a12503.42
• Gear ratio front sprocket-chain-rear sprocket: 16-102-42

AFAM 530 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 800 cc / road

Technical specifications:
Pitch: 530
Pin length: 25.50 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 2.08 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-34022

Suitable for

Yamaha 251 - 500 cc SR 500 G (cast wheel) 2J4 1979
Yamaha 251 - 500 cc SR 500 G (cast wheel) 2J4 1980
Yamaha 251 - 500 cc SR 500 G (cast wheel) 2J4 1981
Yamaha 251 - 500 cc SR 500 G (cast wheel) 2J4 1982
Yamaha 251 - 500 cc SR 500 G (cast wheel) 2J4 1983
