AFAM chain kit for Yamaha SR 500 G (cast wheel) 79-83 530 XSR2G chain kit

AFAM chain kit for Yamaha SR 500 G (cast wheel) 79-83 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha SR 500 G (cast wheel) 2J4 1979-1983

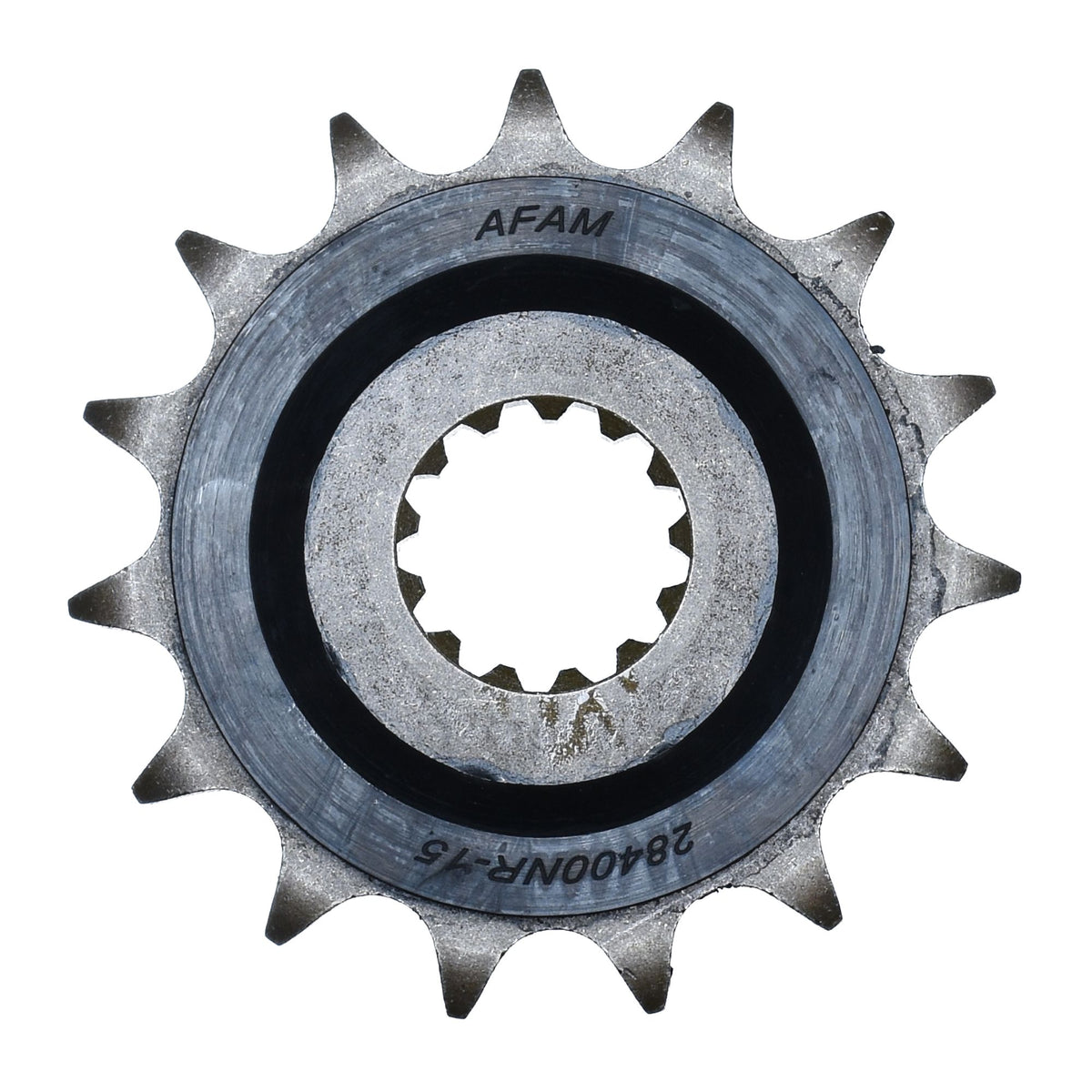

• Front sprocket: AFAM rubberized #530 Silent Sprocket 16 teeth - a28400oem.16
• Chain: AFAM chain 530 XSR2-G Xs-ring 102 super reinforced with rivet link - a530xsr2.g.102

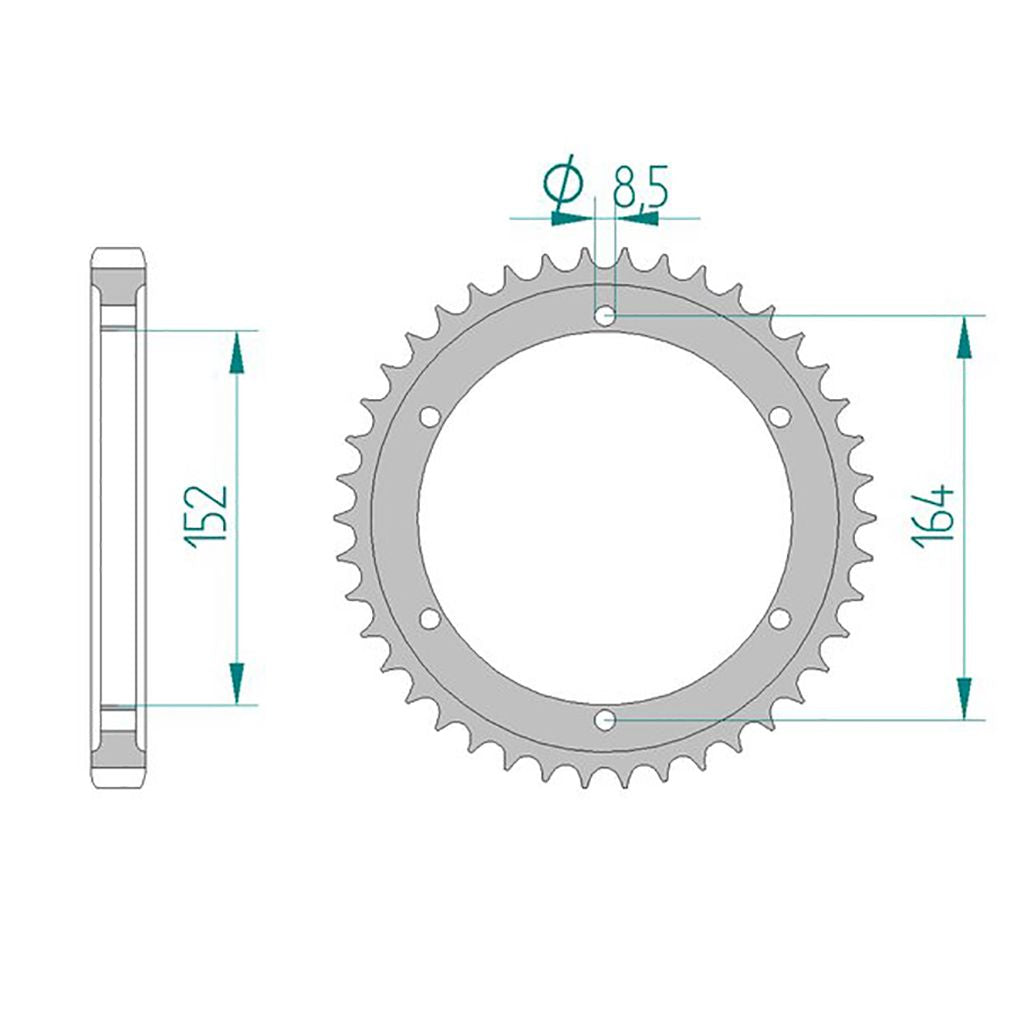

• Rear sprocket: AFAM steel sprocket #530 42 teeth - a12503.42
• Gear ratio sprocket-chain-rear sprocket: 16-102-42

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical specifications:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-48411

Suitable for

Yamaha 251 - 500 cc SR 500 G (cast wheel) 2J4 1979
Yamaha 251 - 500 cc SR 500 G (cast wheel) 2J4 1980
Yamaha 251 - 500 cc SR 500 G (cast wheel) 2J4 1981
Yamaha 251 - 500 cc SR 500 G (cast wheel) 2J4 1982
Yamaha 251 - 500 cc SR 500 G (cast wheel) 2J4 1983
