AFAM chain kit for Yamaha SR 500 SP (disc brake) 87-91 530 XSR2G chain kit

AFAM chain kit for Yamaha SR 500 SP (disc brake) 87-91 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation purposes only!

Components of the chain kit for Yamaha SR 500 SP (disc brake) 48T 1987-1991

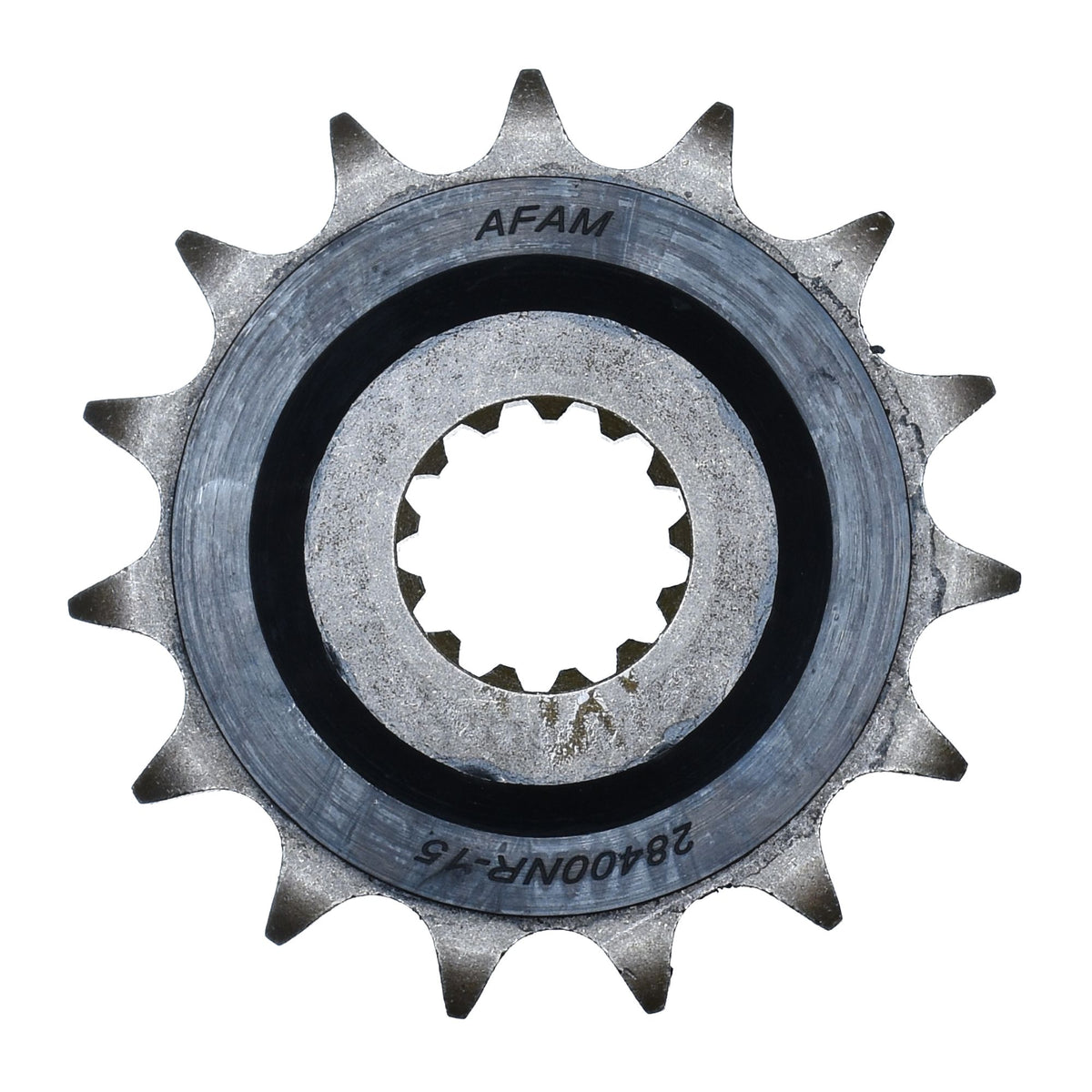

• Sprocket: AFAM rubberized sprocket #530 Silent Sprocket 16 teeth - a28400oem.16
• Chain: AFAM chain 530 XSR2-G Xs-ring 102 super-reinforced with rivet link - a530xsr2.g.102

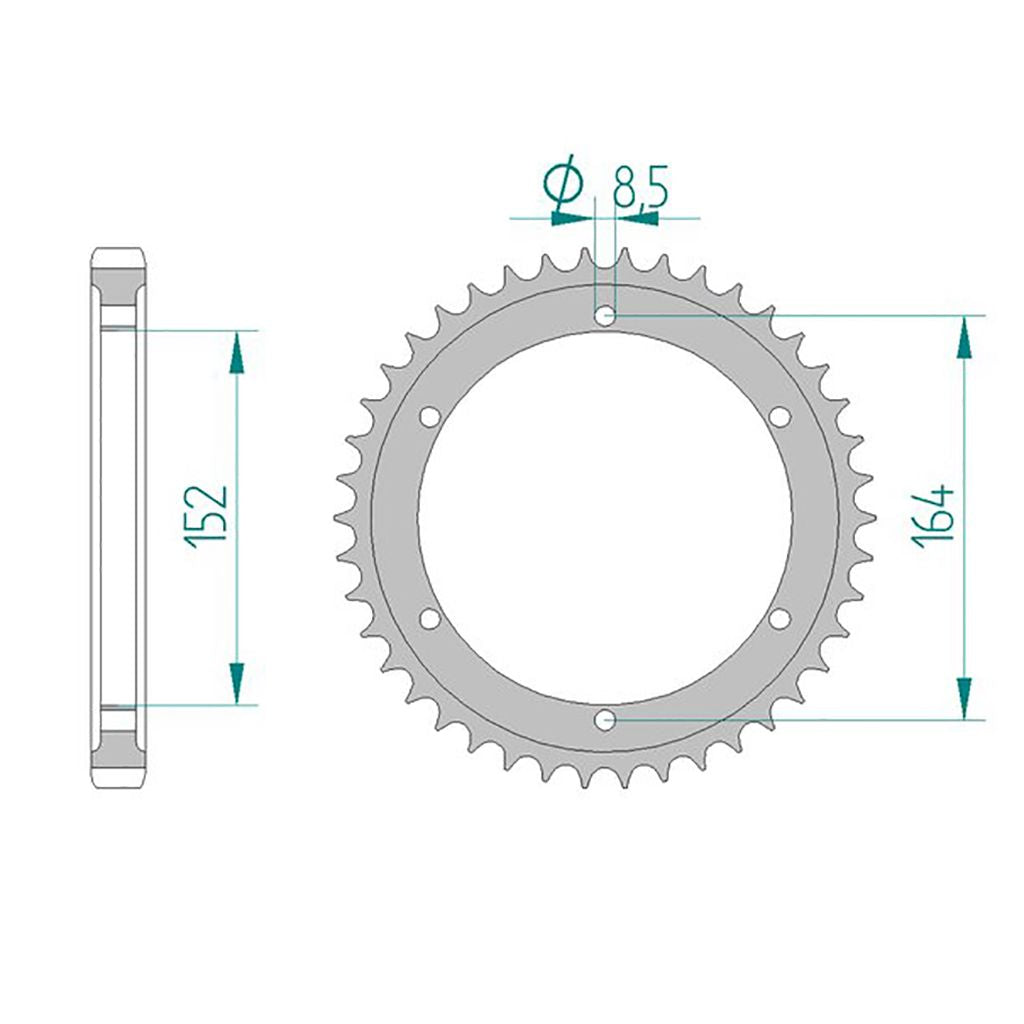

• Rear sprocket: AFAM STEEL rear sprocket #530 42 teeth - a12503.42
• Gear ratio sprocket-chain-rear sprocket: 16-102-42

AFAM 530 XSR2-G

Super-reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical specifications:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-34070

Fits

Yamaha 251 - 500 cc SR 500 SP (disc brake) 48T 1987
Yamaha 251 - 500 cc SR 500 SP (disc brake) 48T 1988
Yamaha 251 - 500 cc SR 500 SP (disc brake) 48T 1989
Yamaha 251 - 500 cc SR 500 SP (disc brake) 48T 1990
Yamaha 251 - 500 cc SR 500 SP (disc brake) 48T 1991
