AFAM chain kit for Yamaha Tenere 700 Rally Edition 2025 525 XHR3G chain kit

AFAM chain kit for Yamaha Tenere 700 Rally Edition 2025 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha Tenere 700 Rally Edition DM204 2025-2025

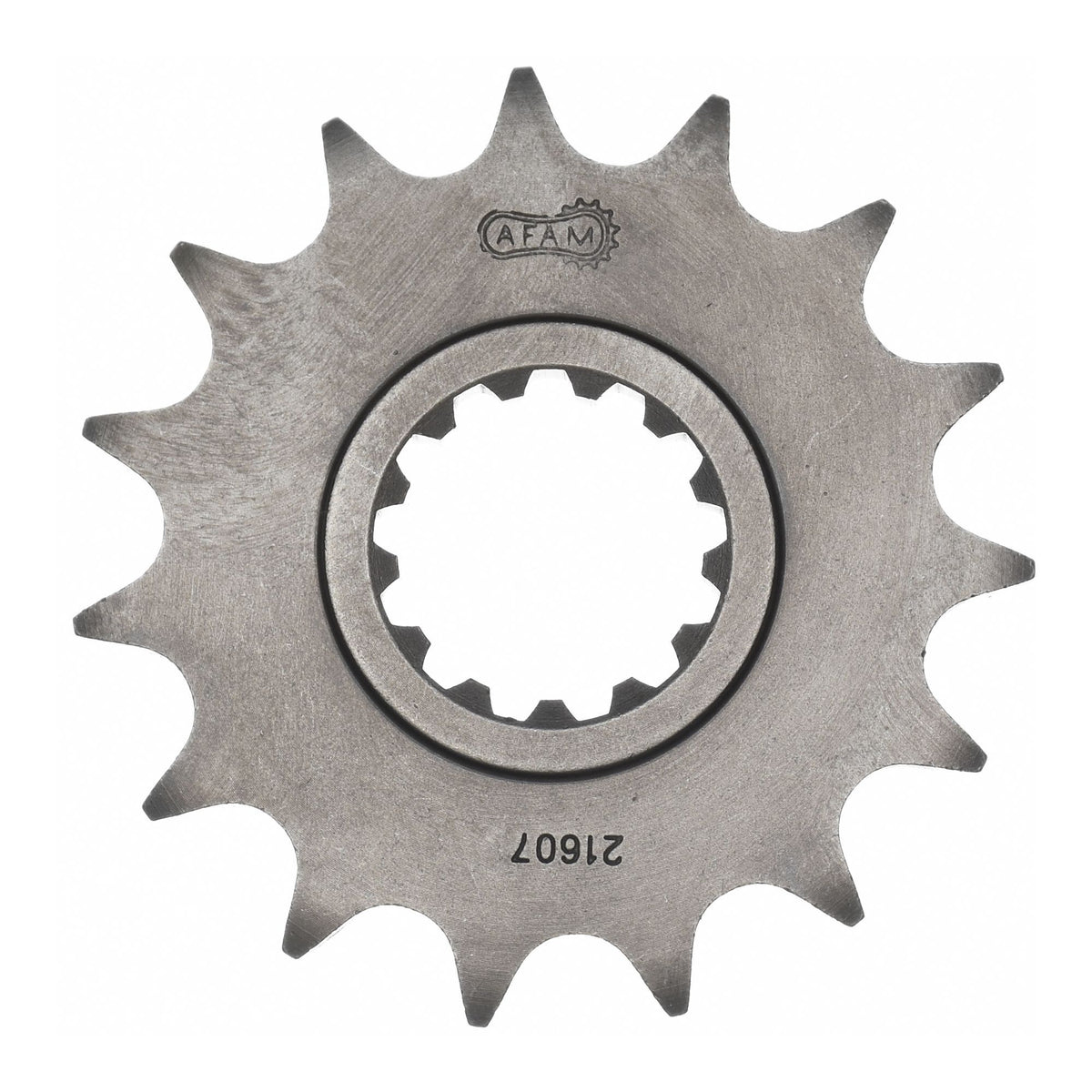

• Front sprocket: AFAM front sprocket #525 15 teeth - a21607.15
• Chain: AFAM chain 525 XHR3-G Xs-ring 122 with rivet link - a525xhr3.g.122

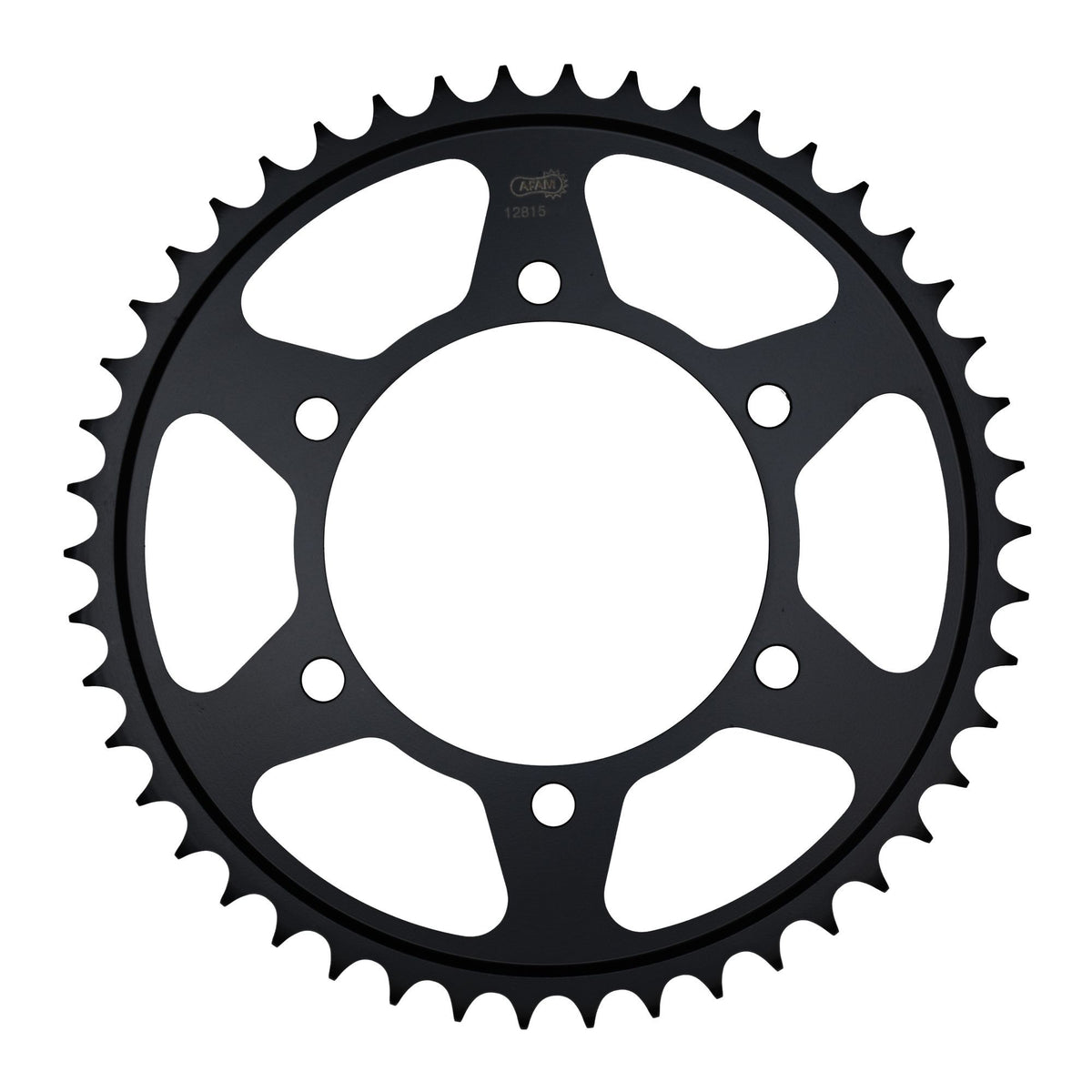

• Rear sprocket: AFAM rear sprocket STEEL #525 46 teeth - a12815.46
• Gear ratio front sprocket-chain-rear sprocket: 15-122-46

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-78307

Suitable for

Yamaha 501 - 750 cc Tenere 700 Rally Edition DM204 2025
