AFAM chain kit for Yamaha Tenere 700 Rally Edition 23-24 525 XHR3G chain kit

AFAM Chain Kit for Yamaha Tenere 700 Rally Edition 23-24 525 XHR3G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha Tenere 700 Rally Edition DM152 2023-2024

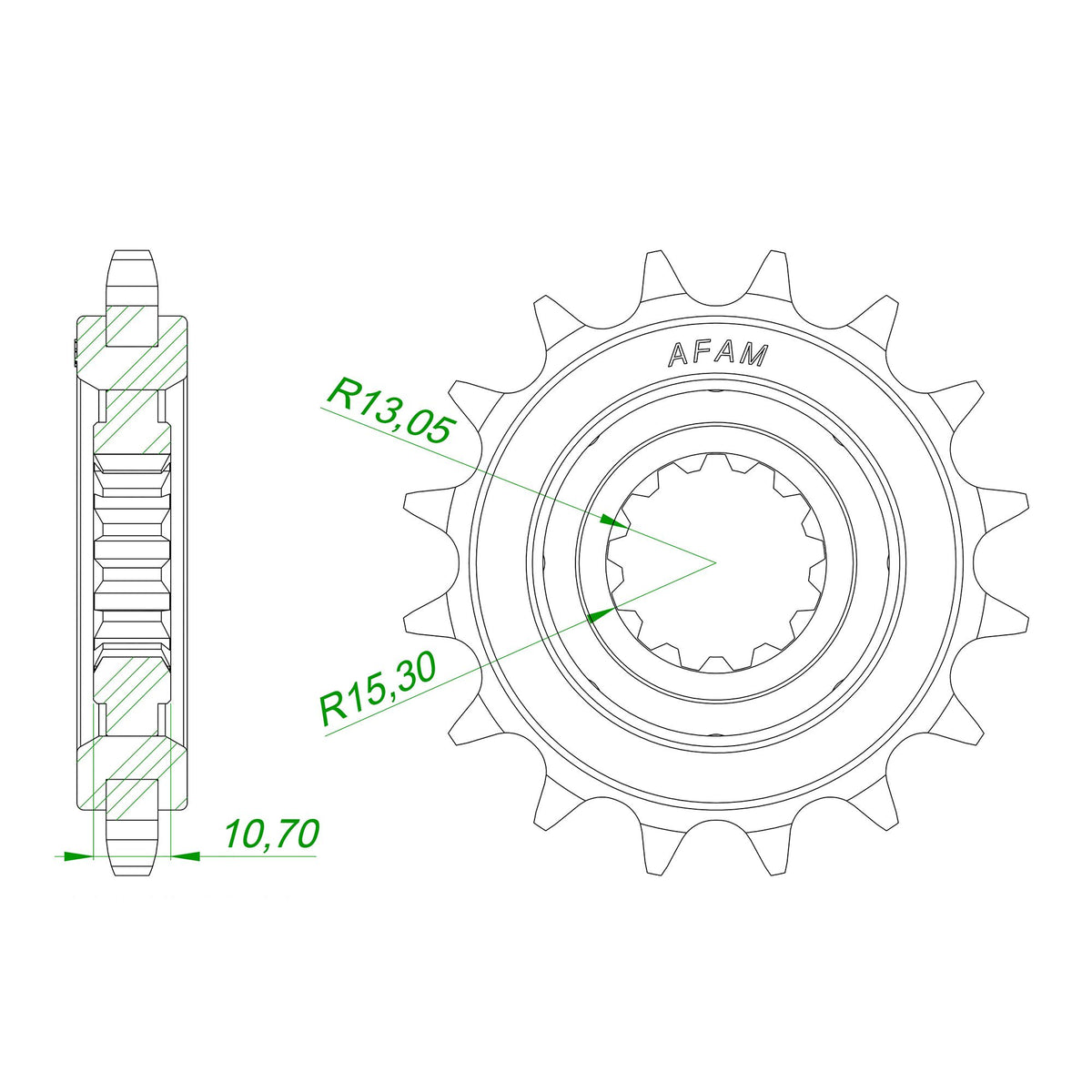

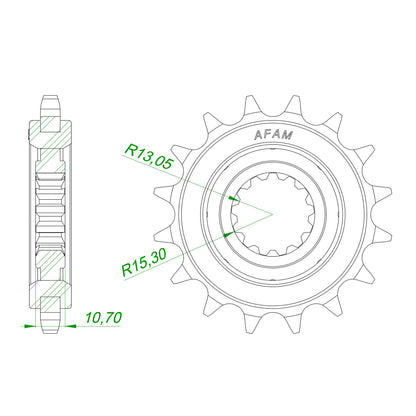

• Front sprocket: AFAM rubberized #525 Silent Sprocket 15 teeth - a21607oem.15
• Chain: AFAM chain 525 XHR3-G Xs-Ring 122 w. rivet link - a525xhr3.g.122

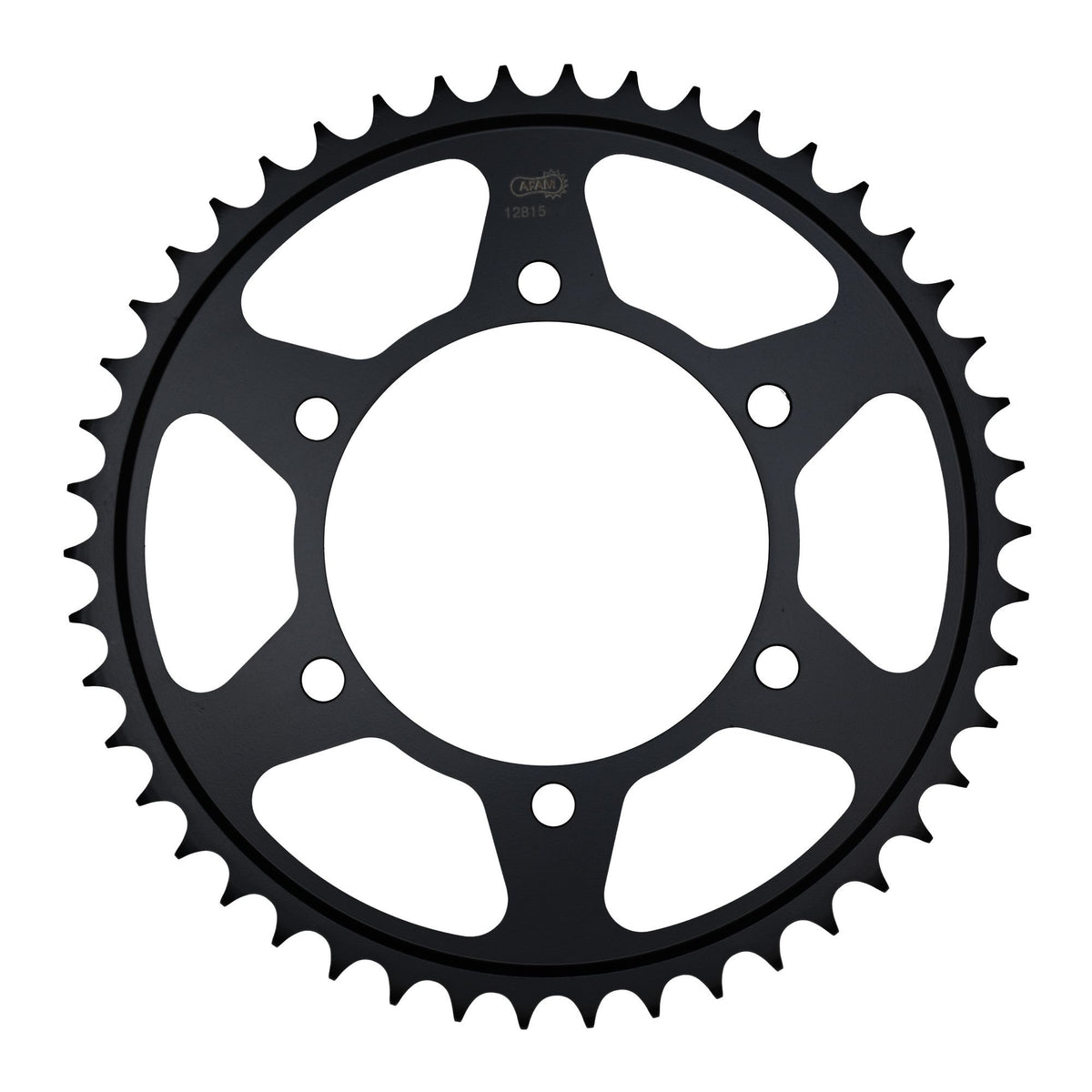

• Rear sprocket: AFAM STEEL sprocket #525 46 teeth - a12815.46
• Gear ratio front sprocket-chain-rear sprocket: 15-122-46

AFAM 525 XHR3-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-78279

Suitable for

Yamaha 501 - 750 cc Tenere 700 Rally Edition DM152 2023
Yamaha 501 - 750 cc Tenere 700 Rally Edition DM152 2024
