AFAM chain kit for Yamaha Tenere 700 Rally Edition 23-24 525 XSR2G chain kit

AFAM chain kit for Yamaha Tenere 700 Rally Edition 23-24 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha Tenere 700 Rally Edition DM152 2023-2024

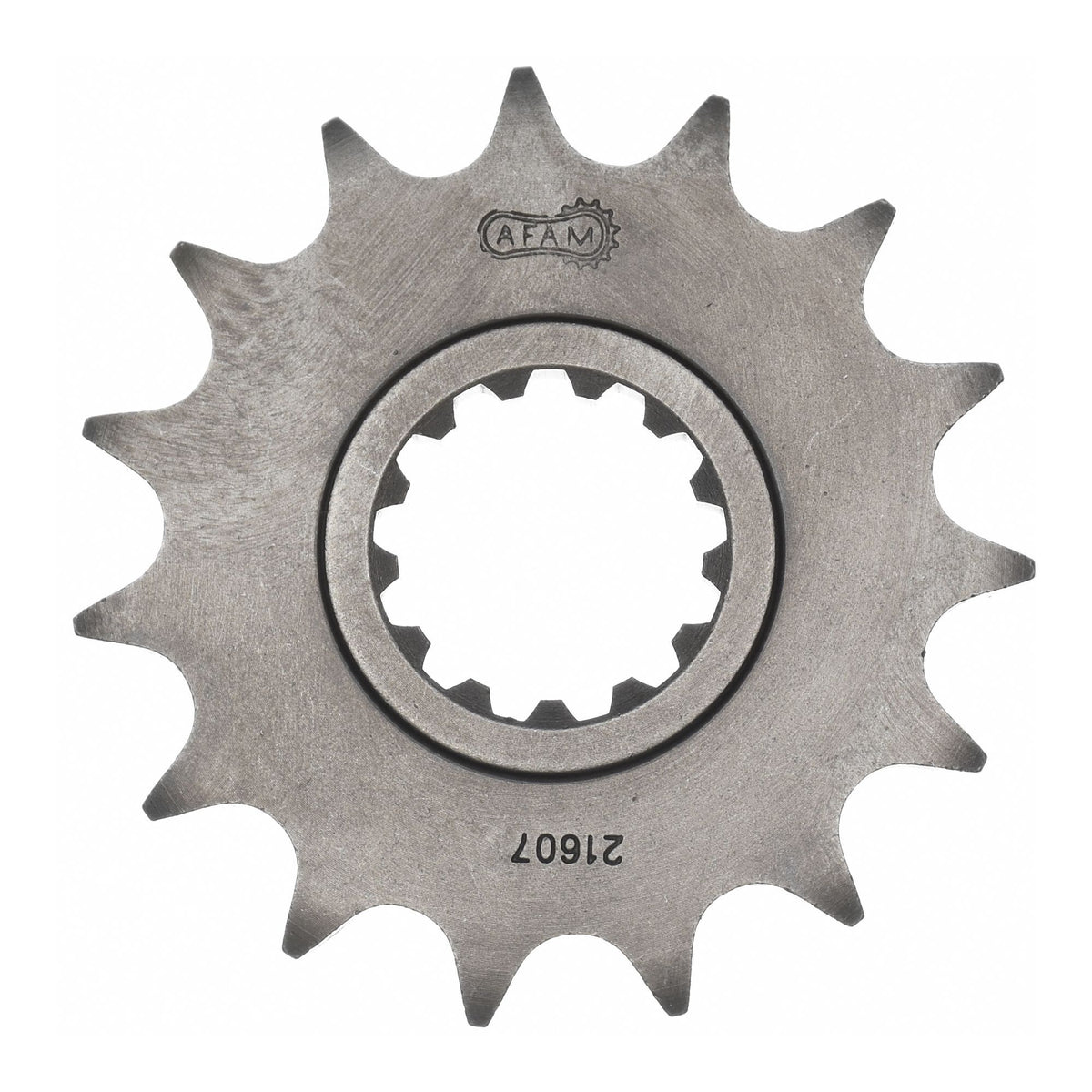

• Front sprocket: AFAM sprocket #525 15 teeth - a21607.15
• Chain: AFAM chain 525 XSR2-G Xs-ring 122 with rivet link - a525xsr2.g.122

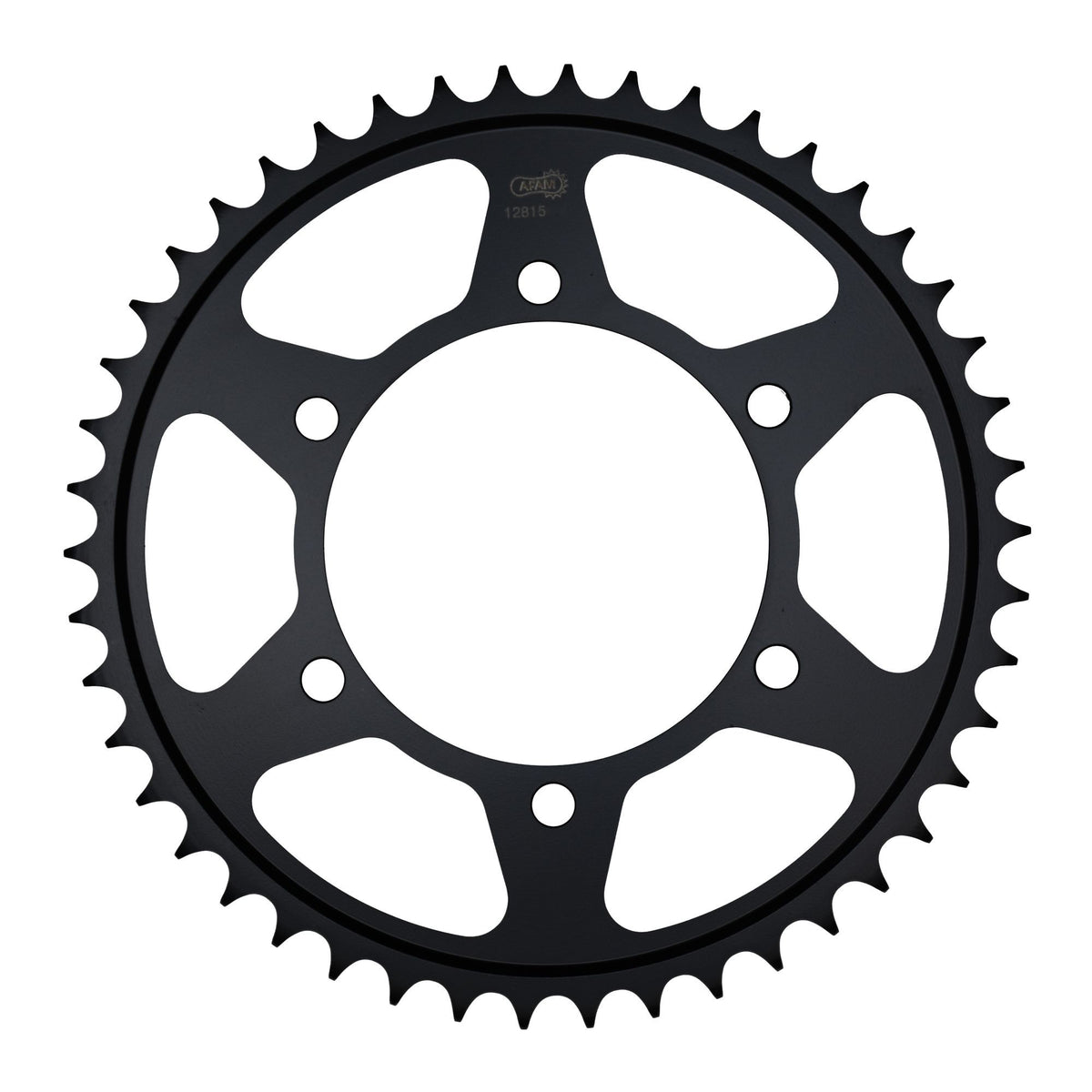

• Rear sprocket: AFAM steel sprocket #525 46 teeth - a12815.46
• Gear ratio sprocket-chain-rear sprocket: 15-122-46

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-78389

Fits

Yamaha 501 - 750 cc Tenere 700 Rally Edition DM152 2023
Yamaha 501 - 750 cc Tenere 700 Rally Edition DM152 2024
