AFAM chain kit for Yamaha Tenere 700 Rally Edition ABS 2020 525 XHR3G chain kit

AFAM chain kit for Yamaha Tenere 700 Rally Edition ABS 2020 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha Tenere 700 Rally Edition ABS DM072 2020-2020

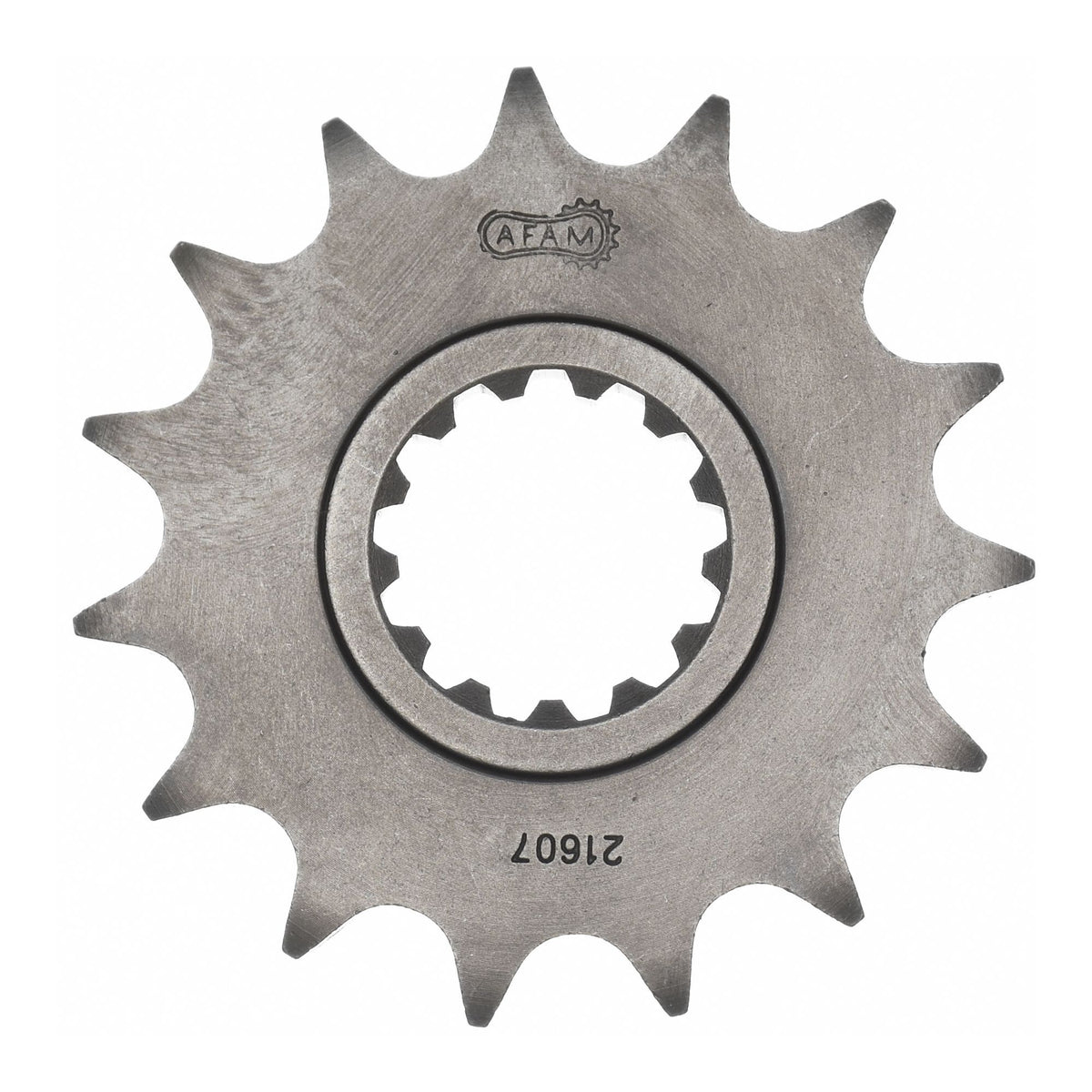

• Sprocket: AFAM sprocket #525 15 teeth - a21607.15
• Chain: AFAM chain 525 XHR3-G Xs-ring 122 w. rivet link - a525xhr3.g.122

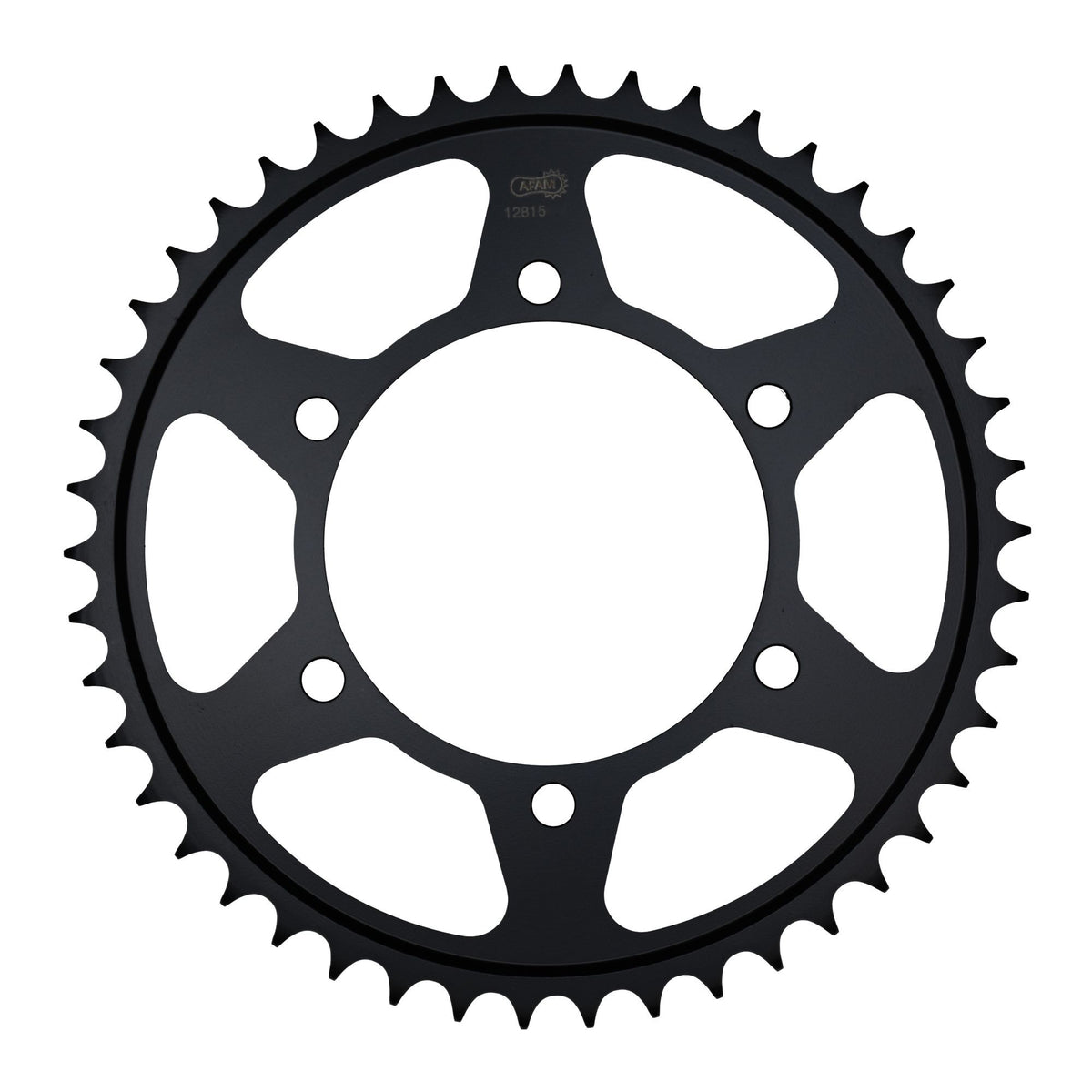

• Chain wheel: AFAM steel chain wheel #525 46 teeth - a12815.46
• Gear ratio sprocket-chain-chain wheel: 15-122-46

AFAM 525 XHR3-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-78424

Suitable for

Yamaha 501 - 750 cc Tenere 700 Rally Edition ABS DM072 2020
