AFAM chain kit for Yamaha Tenere 700 Rally Edition ABS 2020 525 XSR2G chain kit

AFAM Chain Kit for Yamaha Tenere 700 Rally Edition ABS 2020 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to indicate compatibility!

Components of the chain kit Yamaha Tenere 700 Rally Edition ABS DM072 2020-2020

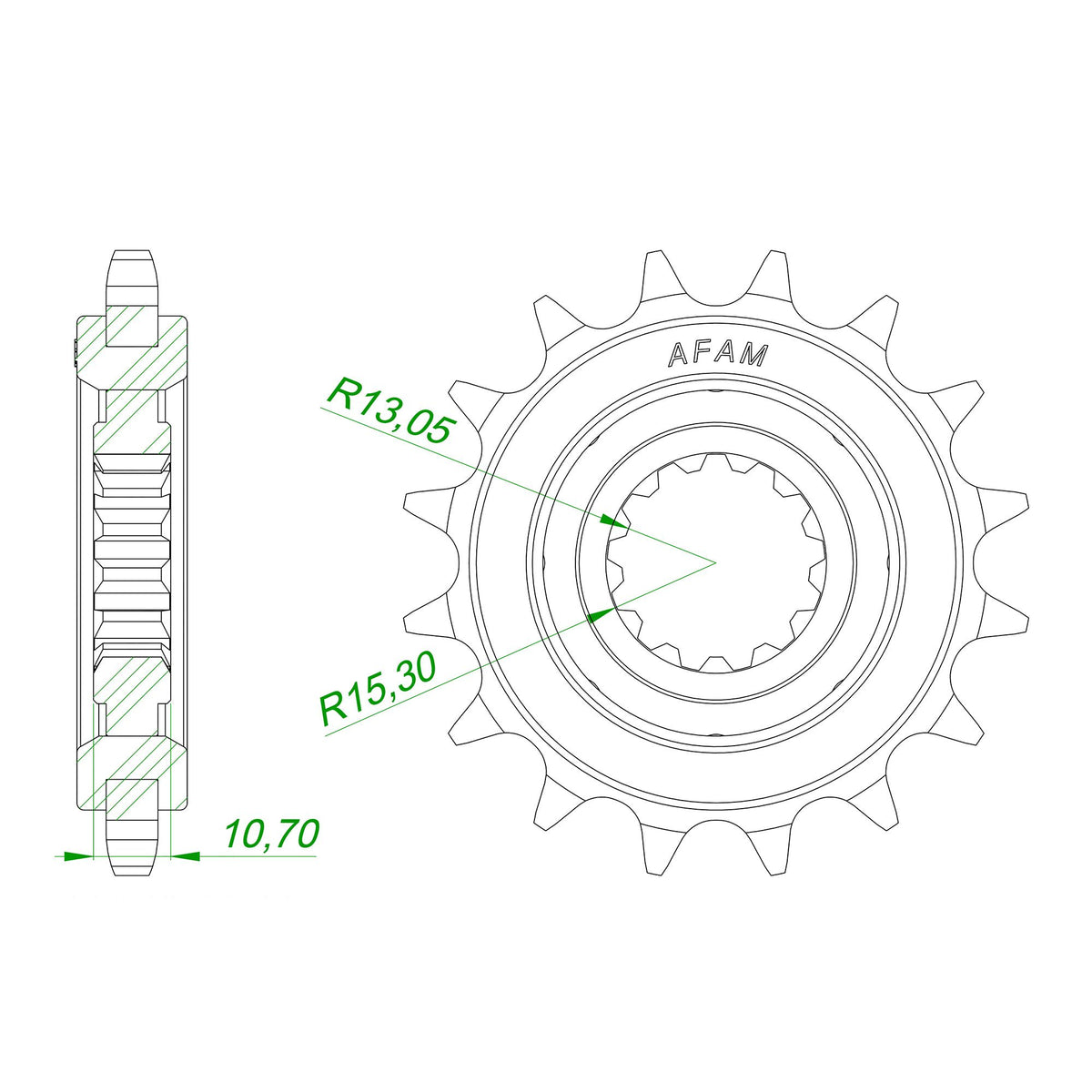

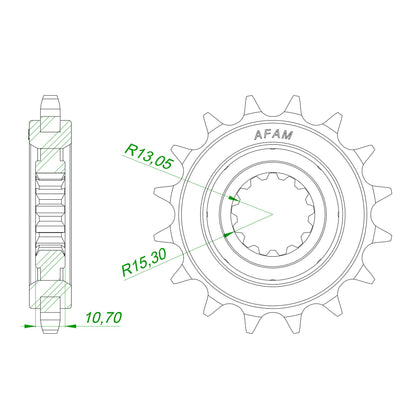

• Front sprocket: AFAM rubberized sprocket #525 Silent Sprocket 15 teeth - a21607oem.15
• Chain: AFAM chain 525 XSR2-G Xs-Ring 122 w. rivet link - a525xsr2.g.122

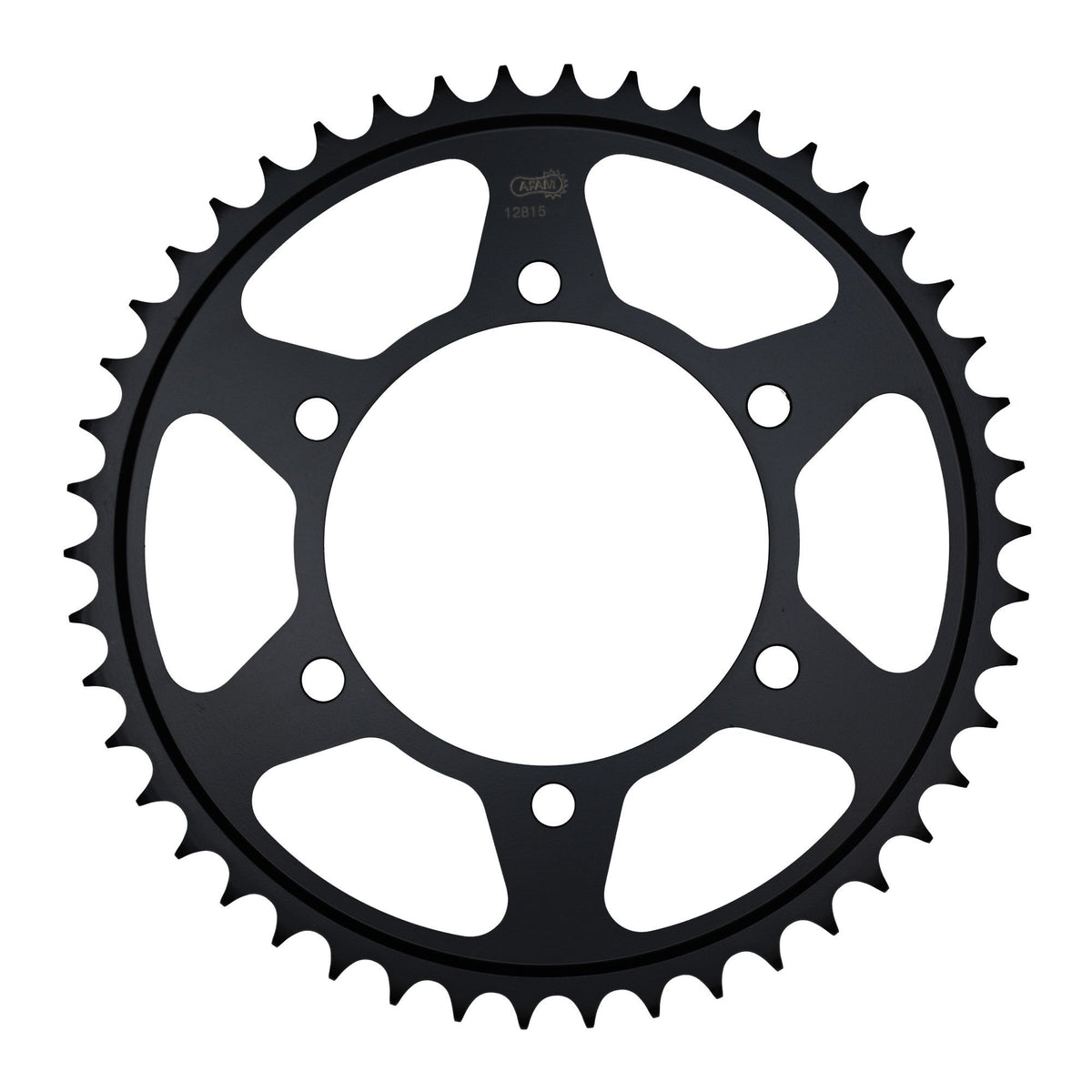

• Rear sprocket: AFAM steel sprocket #525 46 teeth - a12815.46
• Transmission ratio front sprocket-chain-rear sprocket: 15-122-46

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is mentioned solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78273

Fits

Yamaha 501 - 750 cc Tenere 700 Rally Edition ABS DM072 2020
