AFAM chain kit for Yamaha Tenere 700 Rally Edition ABS 2020 525 XSR2G chain kit

AFAM Chain Kit for Yamaha Tenere 700 Rally Edition ABS 2020 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Yamaha Tenere 700 Rally Edition ABS DM072 2020-2020

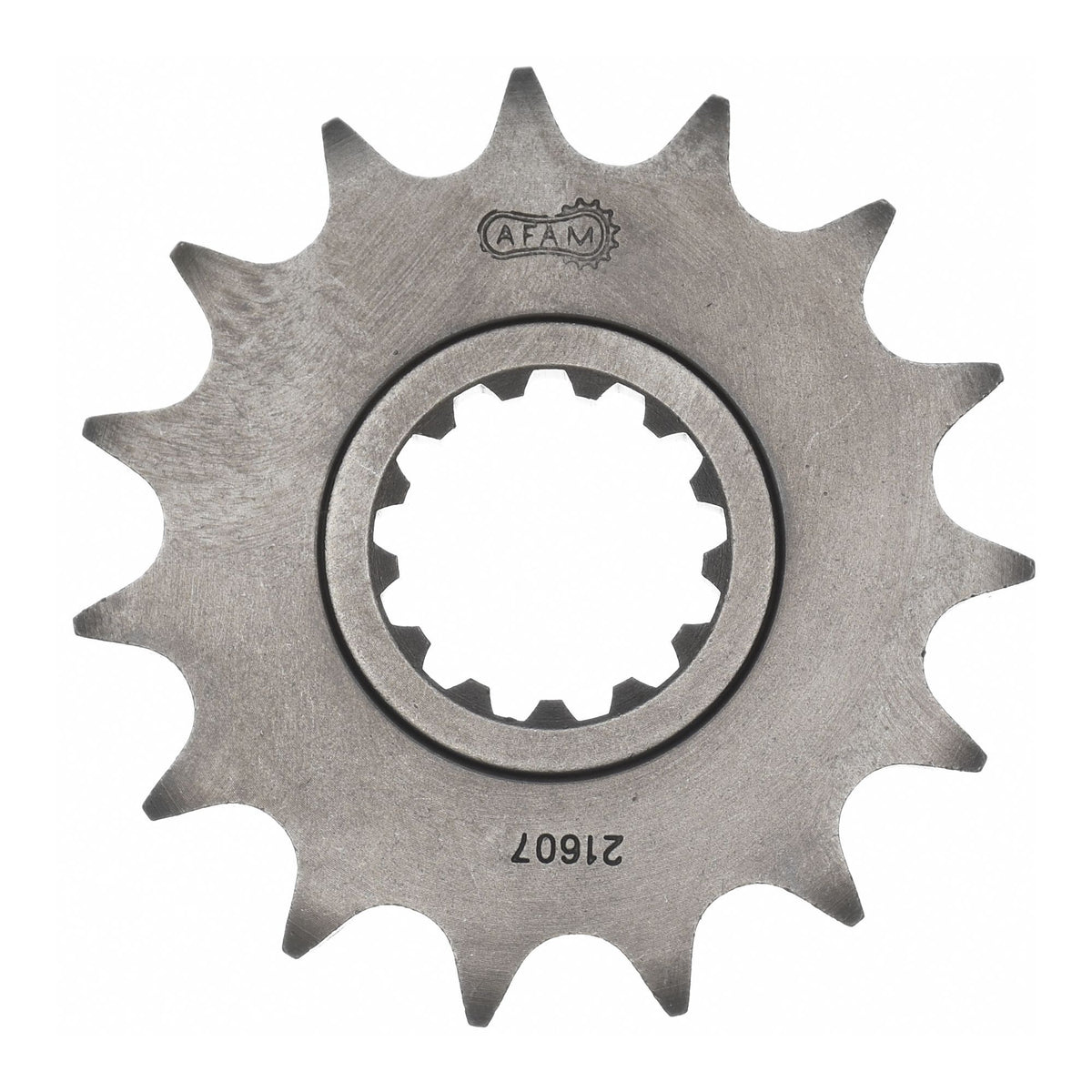

• Sprocket: AFAM sprocket #525 15 teeth - a21607.15
• Chain: AFAM chain 525 XSR2-G Xs-ring 122 with rivet link - a525xsr2.g.122

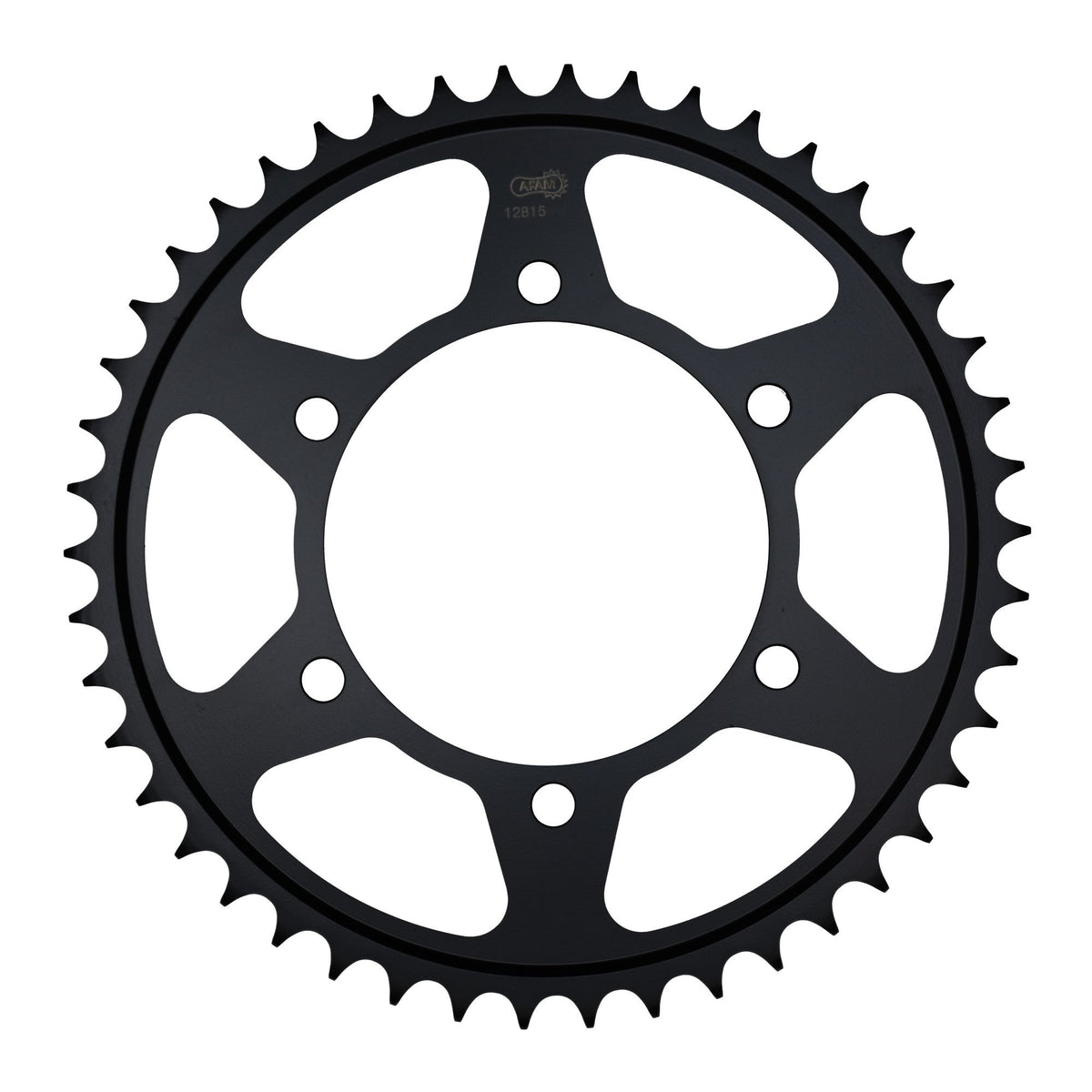

• Rear sprocket: AFAM rear sprocket STEEL #525 46 teeth - a12815.46
• Transmission ratio sprocket-chain-rear sprocket: 15-122-46

AFAM 525 XSR2-G

Super reinforced chain with smooth-running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-78296

Suitable for

Yamaha 501 - 750 cc Tenere 700 Rally Edition ABS DM072 2020
