AFAM chain kit for Yamaha Tenere 700 World Raid 24-25 525 XHR3G chain kit

AFAM chain kit for Yamaha Tenere 700 World Raid 24-25 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility identification only!

Components of the chain kit Yamaha Tenere 700 World Raid DM118 2024-2025

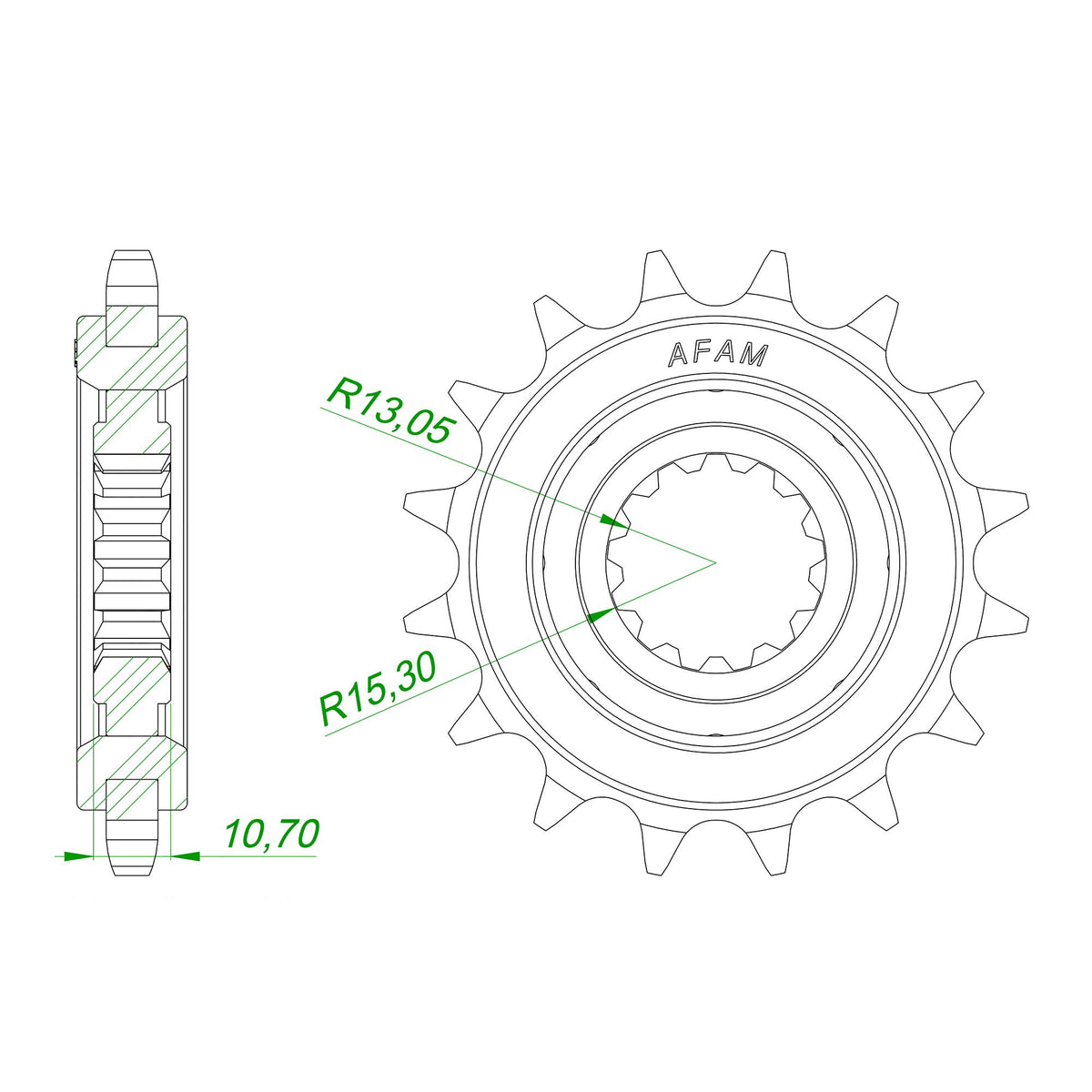

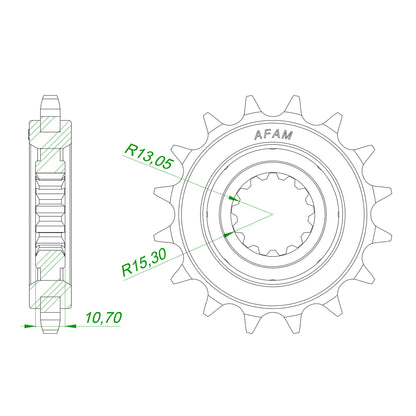

• Sprocket: AFAM sprocket rubber #525 Silent Sprocket 15 teeth - a21607oem.15
• Chain: AFAM chain 525 XHR3-G Xs-Ring 122 with rivet link - a525xhr3.g.122

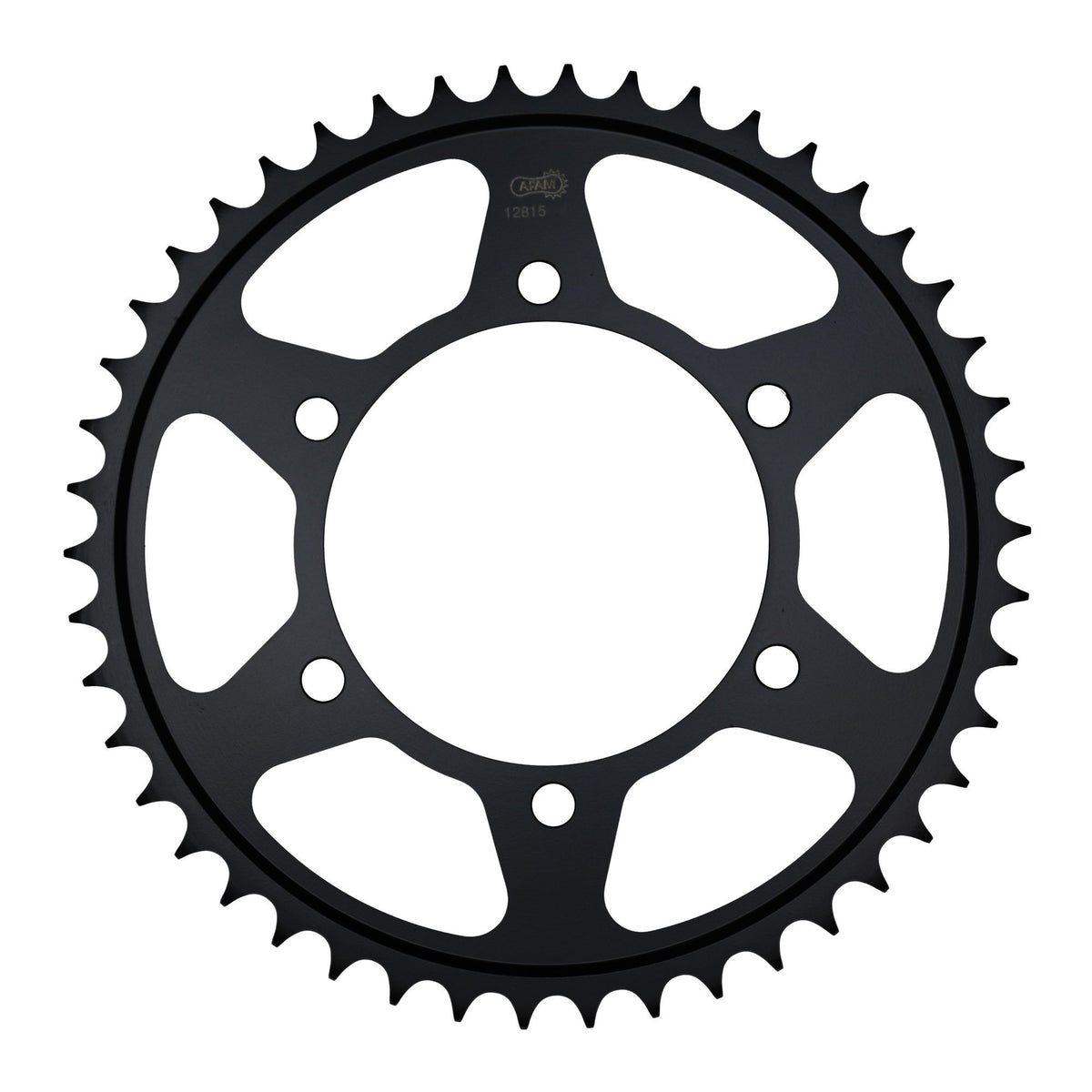

• Chainwheel: AFAM chainwheel STEEL #525 46 teeth - a12815.46
• Gear ratio sprocket-chain-chainwheel: 15-122-46

AFAM 525 XHR3-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78314

Fits

Yamaha 501 - 750 cc Tenere 700 World Raid DM118 2024
Yamaha 501 - 750 cc Tenere 700 World Raid DM118 2025
