AFAM chain kit for Yamaha TT 350 90-95 520 MR2G chain kit

AFAM chain kit for Yamaha TT 350 90-95 520 MR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Yamaha TT 350 3GJ 1990-1995

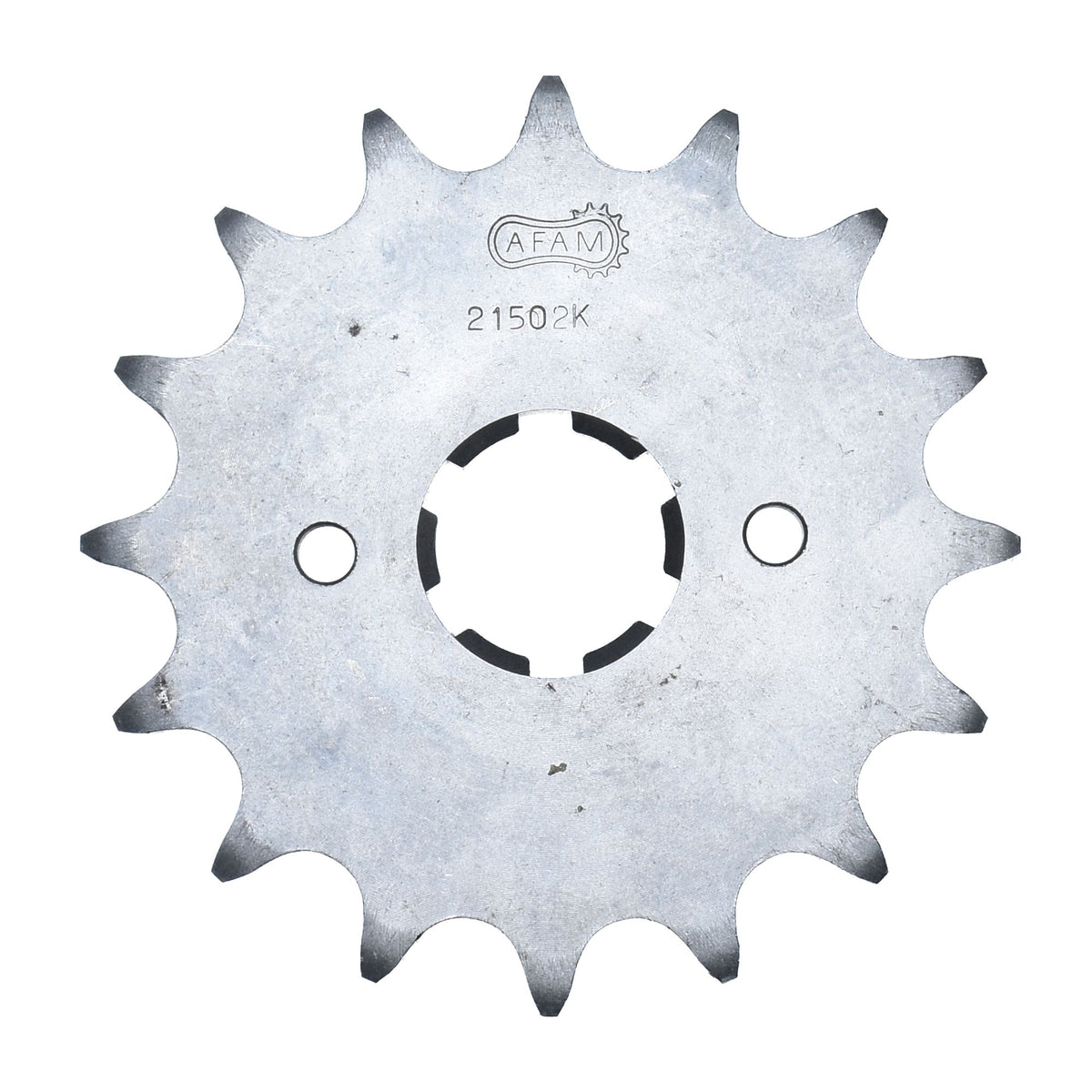

• Sprocket: AFAM sprocket #520 14 teeth - a21502.14
• Chain: AFAM chain 520 MR2-G w. clip master link - a520mr2.g.108

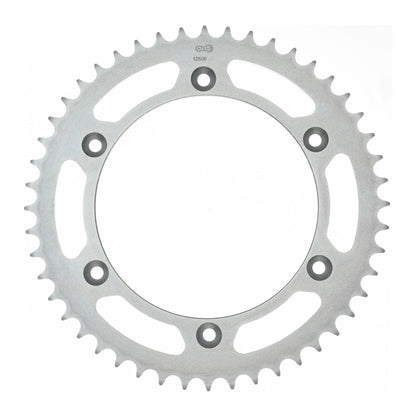

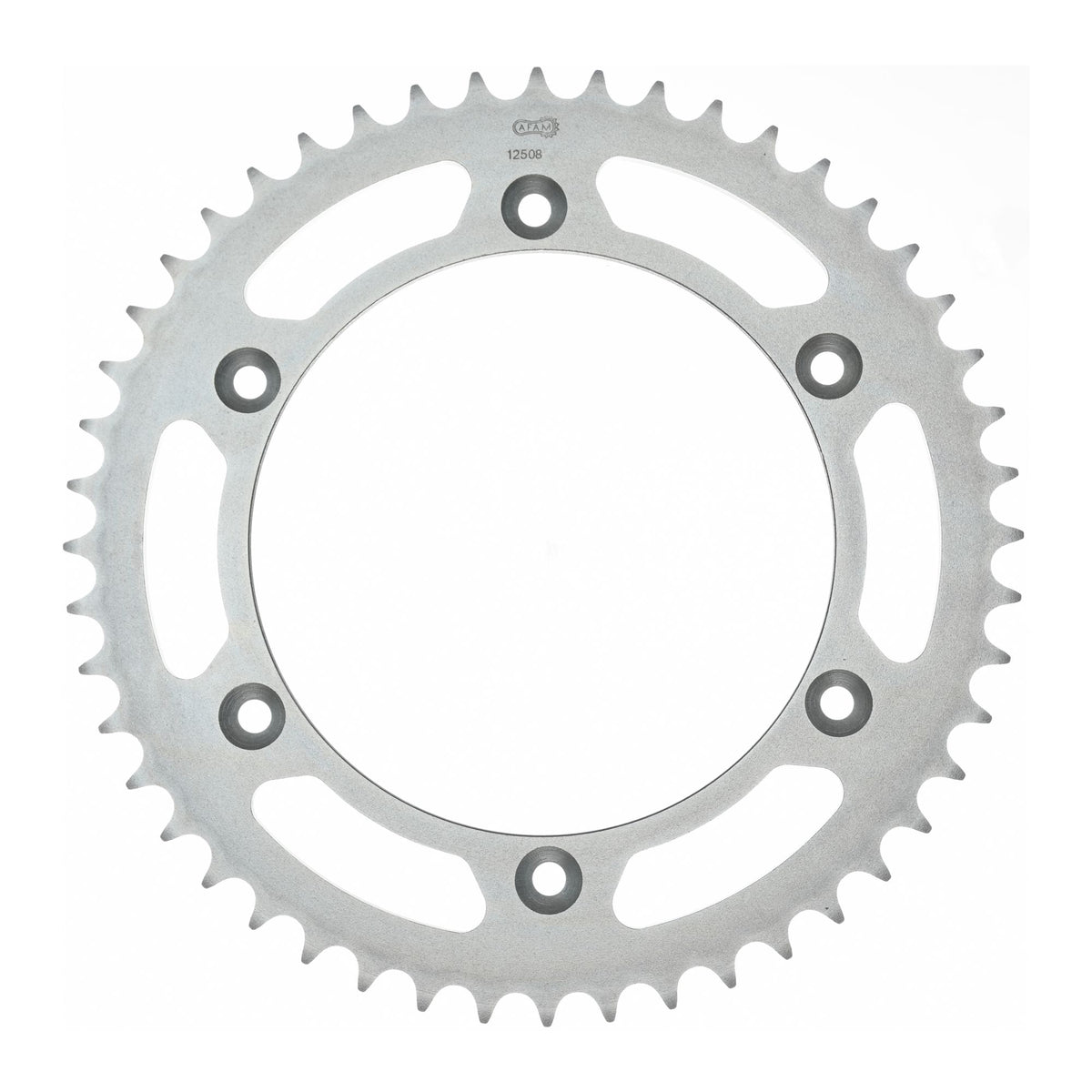

• Rear sprocket: AFAM rear sprocket STEEL #520 50 teeth - a12508.50
• Gear ratio sprocket-chain-rear sprocket: 14-108-50

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / street, off-road and motocross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-53881

Suitable for

Yamaha 251 - 500 cc TT 350 3GJ 1990
Yamaha 251 - 500 cc TT 350 3GJ 1991
Yamaha 251 - 500 cc TT 350 3GJ 1992
Yamaha 251 - 500 cc TT 350 3GJ 1993
Yamaha 251 - 500 cc TT 350 3GJ 1994
Yamaha 251 - 500 cc TT 350 3GJ 1995
