AFAM chain kit for Yamaha TT 600 E 96-98 520 XHR2G chain kit

AFAM chain kit for Yamaha TT 600 E 96-98 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the Yamaha TT 600 E 4LW 1996-1998 chain kit

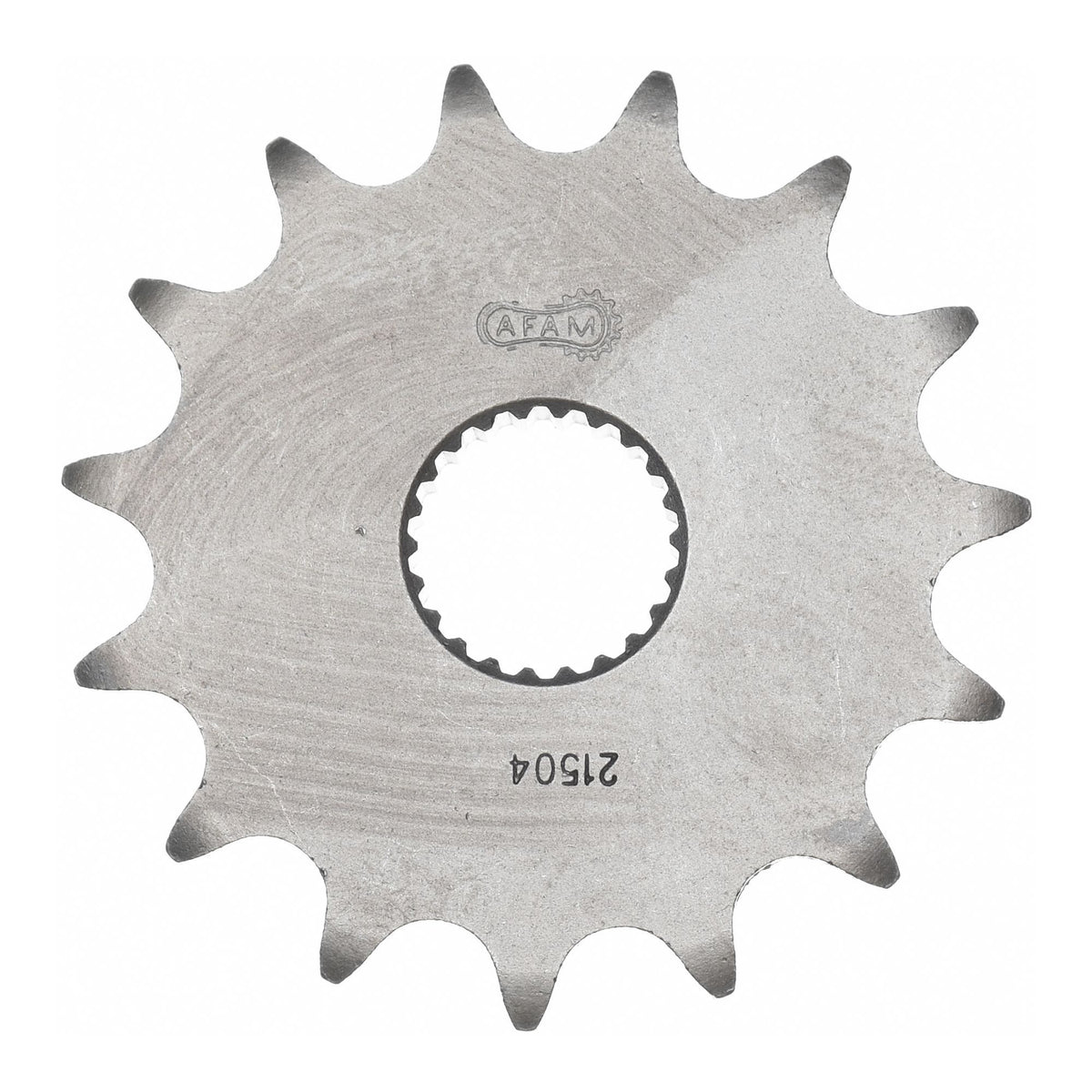

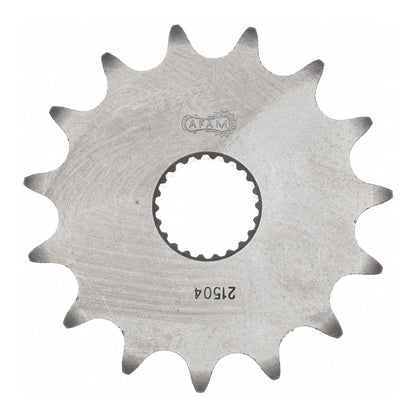

• Front sprocket: AFAM front sprocket #520 15 teeth - a21504.15
• Chain: AFAM chain 520 XHR2-G Xs-ring 110 w. rivet link - a520xhr2.g.110

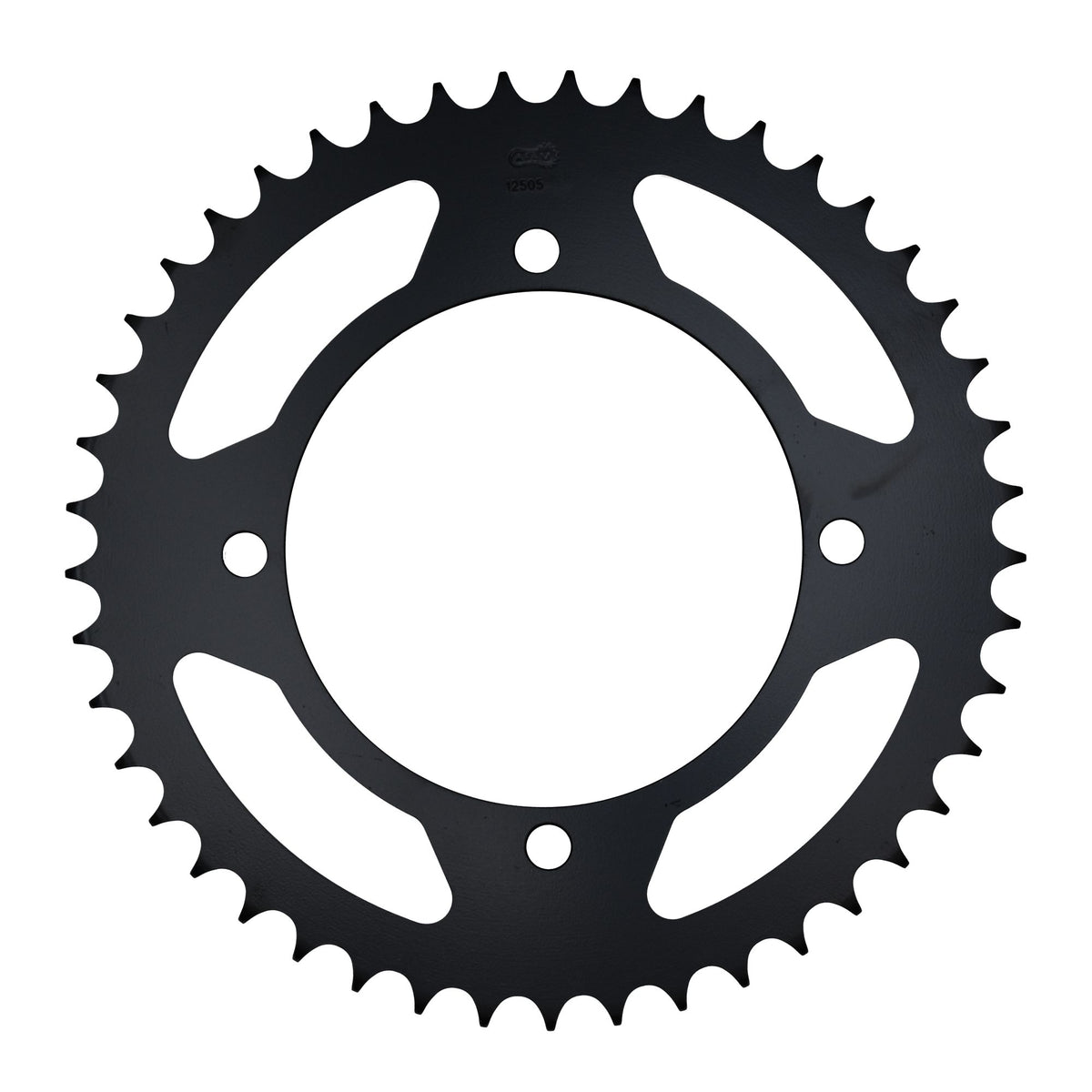

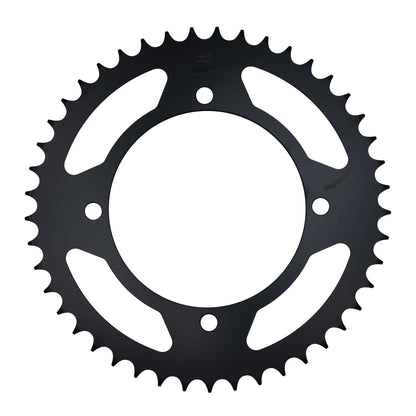

• Rear sprocket: AFAM steel rear sprocket #520 47 teeth - a12505.47
• Gear ratio front sprocket-chain-rear sprocket: 15-110-47

AFAM 520 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by engine displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-43637

Suitable for

Yamaha 501 - 750 cc TT 600 E 4LW 1996
Yamaha 501 - 750 cc TT 600 E 4LW 1997
Yamaha 501 - 750 cc TT 600 E 4LW 1998
