AFAM chain kit for Yamaha TT 600 E 96-98 520 XMR3 chain kit

AFAM chain set for Yamaha TT 600 E 96-98 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Yamaha TT 600 E 4LW 1996-1998

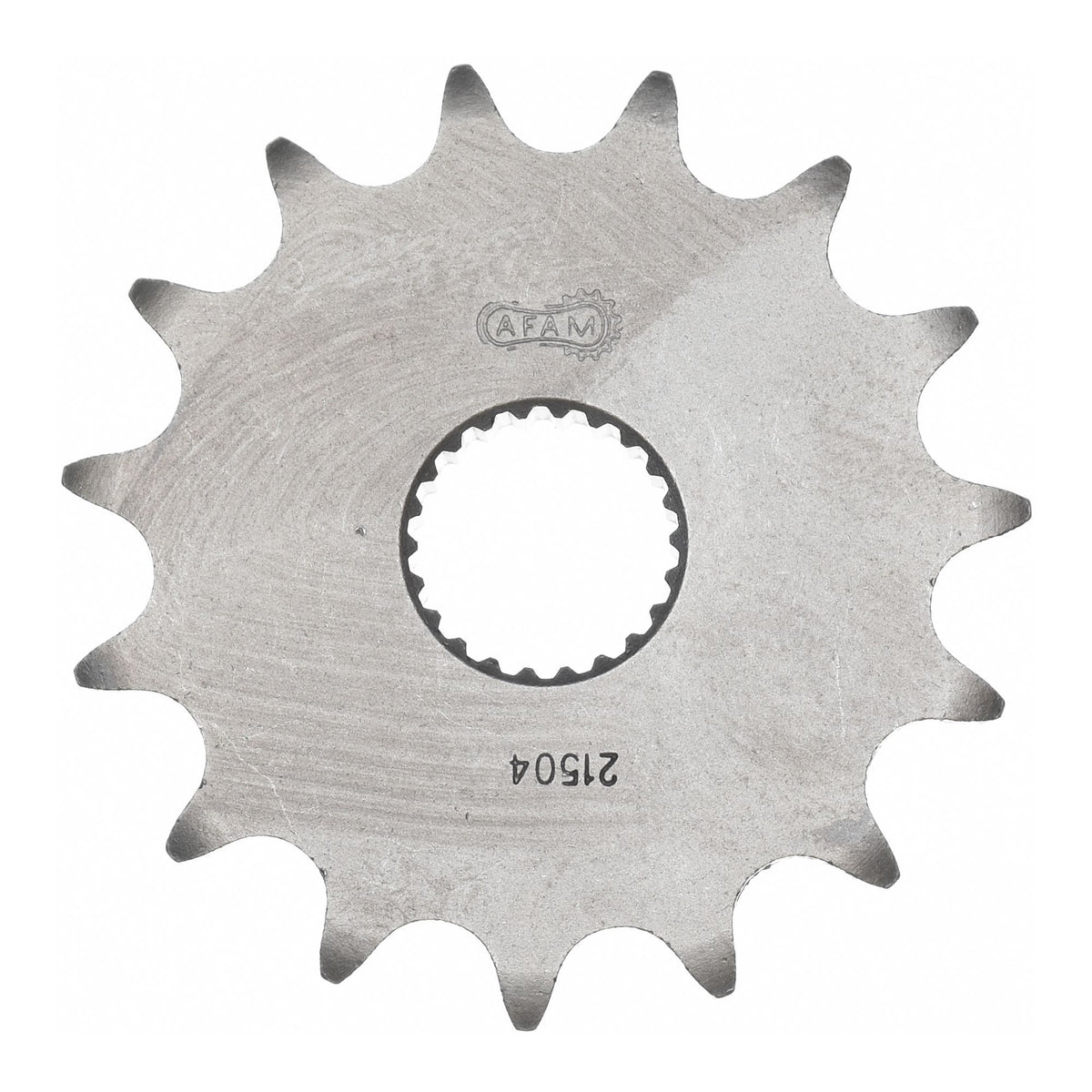

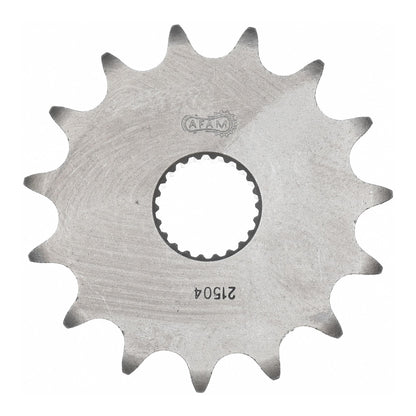

• Sprocket: AFAM sprocket #520 15 teeth - a21504.15
• Chain: AFAM chain 520 XMR3 Xs-ring 110 links w. rivet link - a520xmr3.110

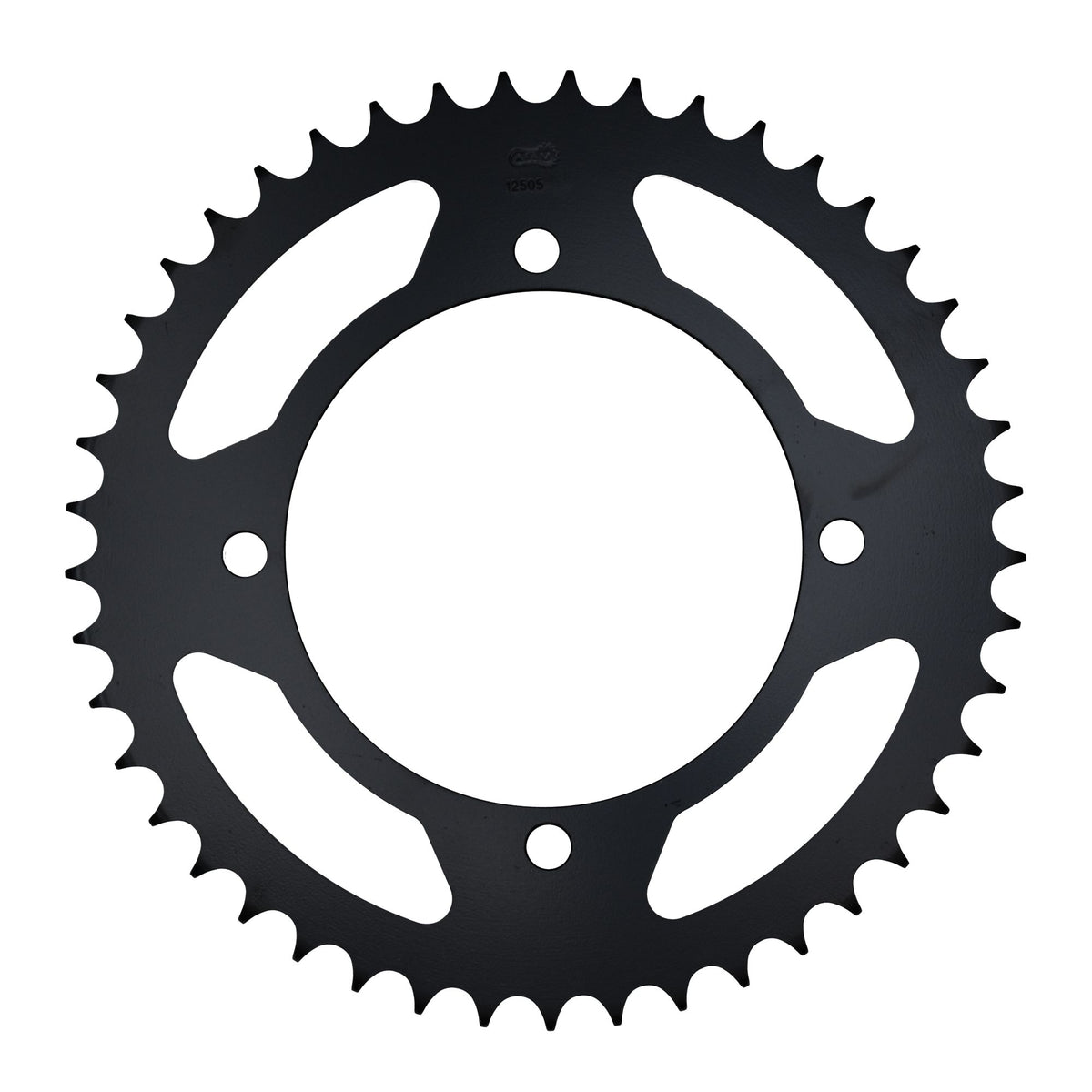

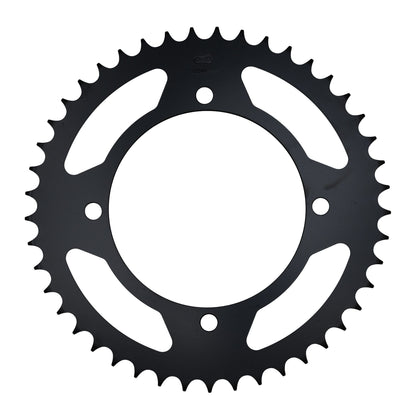

• Chain wheel: AFAM chain wheel STEEL #520 47 teeth - a12505.47
• Gear ratio sprocket-chain-chain wheel: 15-110-47

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-54452

Fits

Yamaha 501 - 750 cc TT 600 E 4LW 1996
Yamaha 501 - 750 cc TT 600 E 4LW 1997
Yamaha 501 - 750 cc TT 600 E 4LW 1998
