AFAM chain kit for Yamaha TT 600 R 97-03 520 XSRG chain kit

AFAM Chain Kit for Yamaha TT 600 R 97-03 520 XSRG Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned for compatibility purposes only!

Components of the chain kit Yamaha TT 600 R DJ011 1997-2003

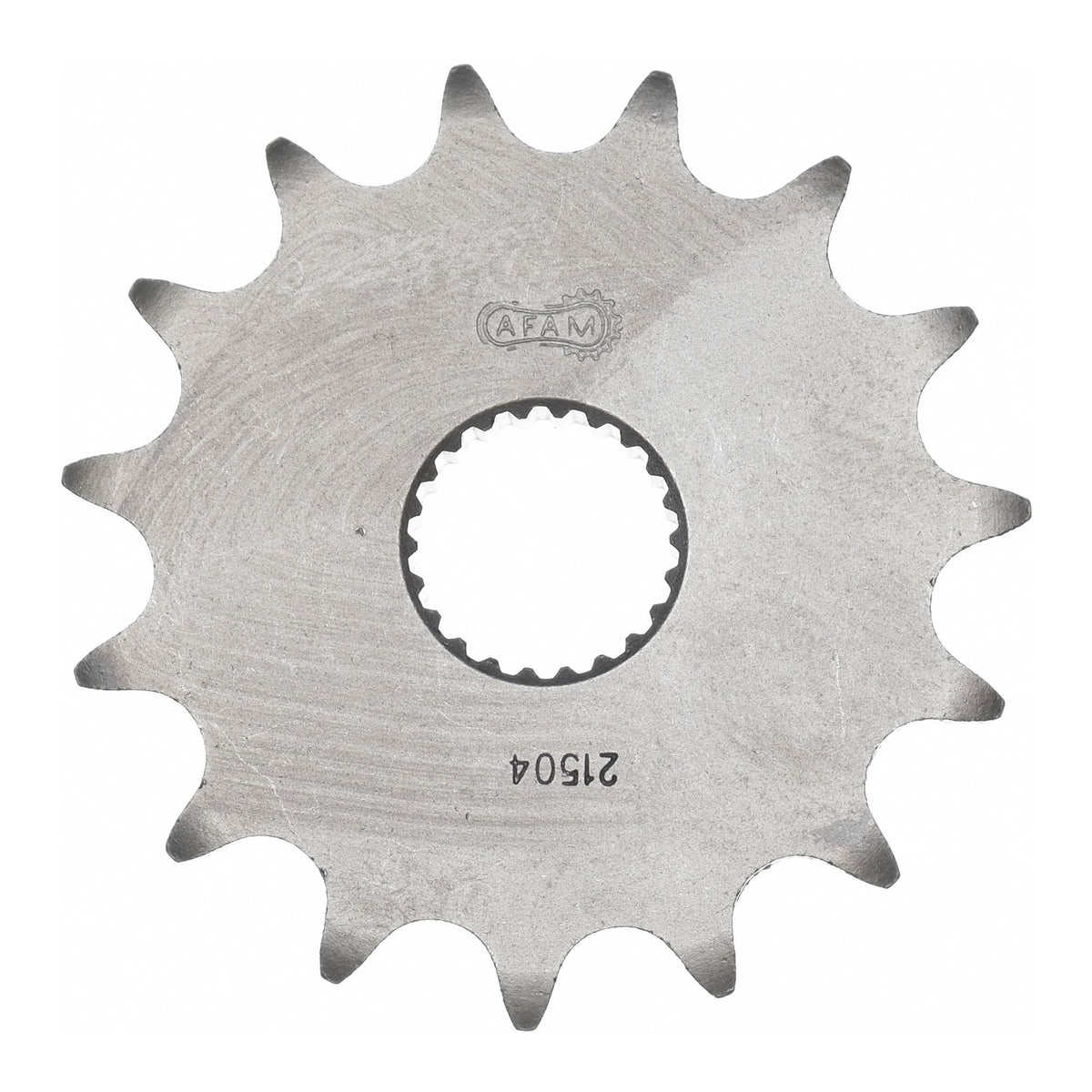

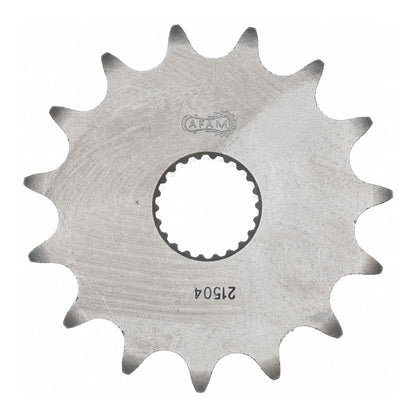

• Front sprocket: AFAM front sprocket #520 15 teeth - a21504.15
• Chain: AFAM chain 520 XSR-G Xs-ring 112 with rivet link - a520xsr.g.112

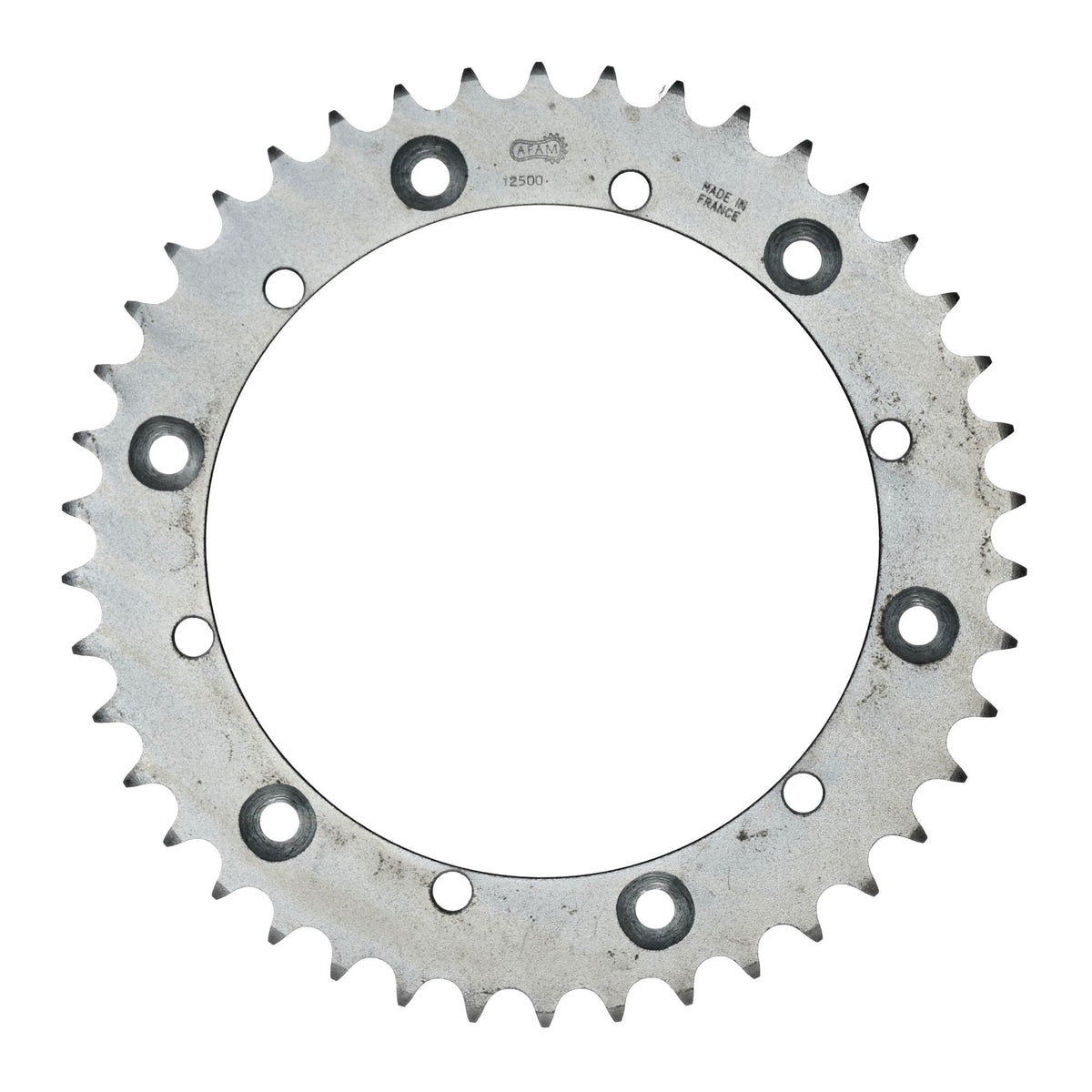

• Rear sprocket: AFAM rear sprocket STEEL #520 44 teeth - a12500.44
• Gear ratio sprocket-chain-rear sprocket: 15-112-44

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by engine displacement: up to 800 cc / road, sport, and off-road

Technical specifications:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-54453

Suitable for

Yamaha 501 - 750 cc TT 600 R DJ011 1997
Yamaha 501 - 750 cc TT 600 R DJ011 1998
Yamaha 501 - 750 cc TT 600 R DJ011 1999
Yamaha 501 - 750 cc TT 600 R DJ011 2000
Yamaha 501 - 750 cc TT 600 R DJ011 2001
Yamaha 501 - 750 cc TT 600 R DJ011 2002
Yamaha 501 - 750 cc TT 600 R DJ011 2003
