AFAM chain kit for Yamaha TT 600 RE 03-04 520 XSRG chain kit

AFAM chain kit for Yamaha TT 600 RE 03-04 520 XSRG chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit for Yamaha TT 600 RE DJ012 2003-2004

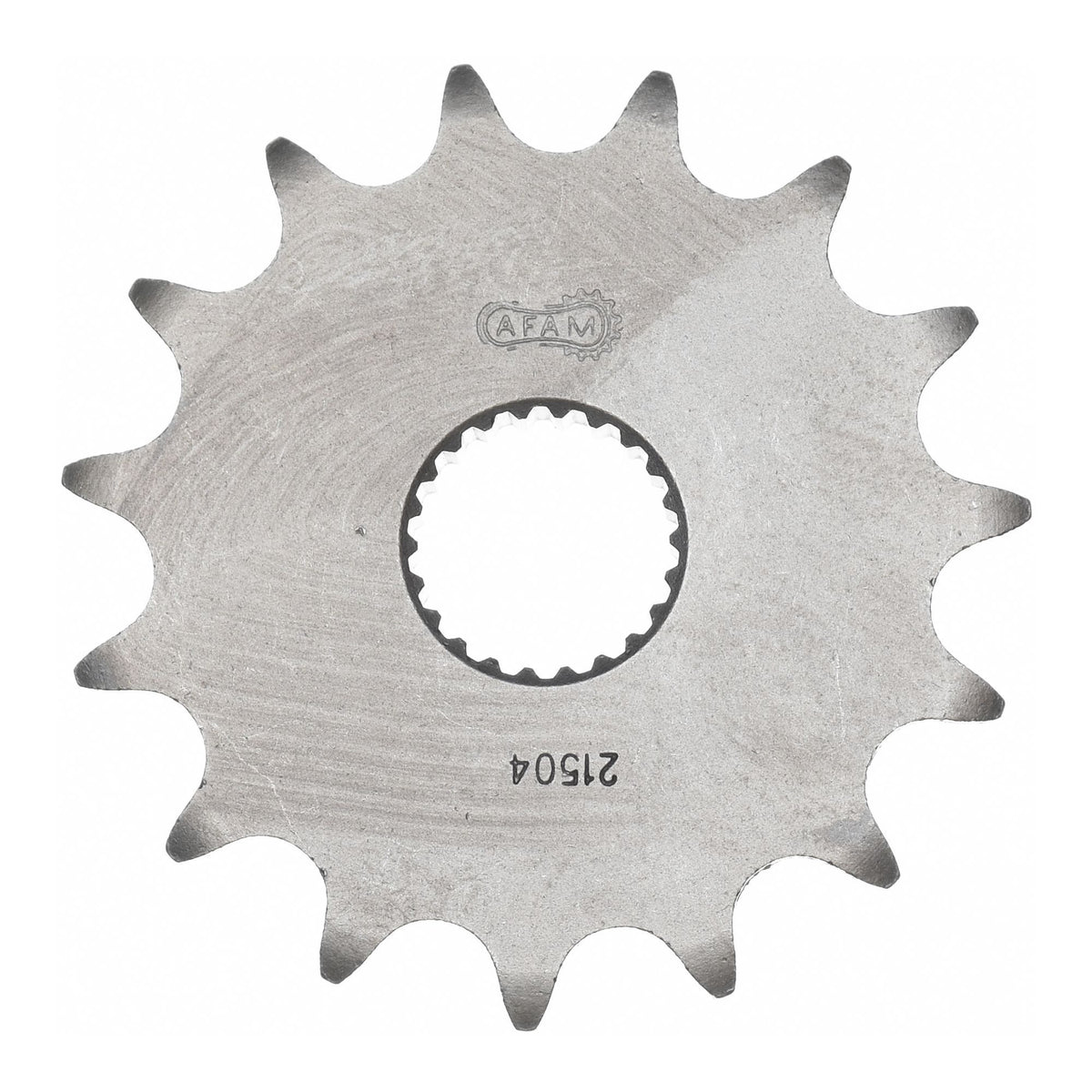

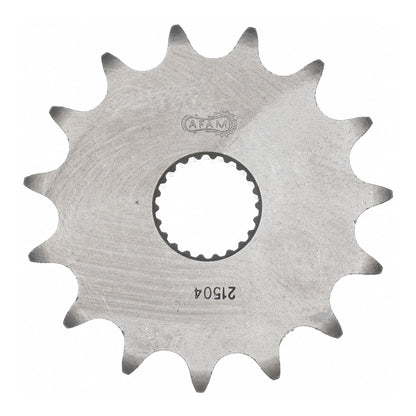

• Sprocket: AFAM sprocket #520 15 teeth - a21504.15
• Chain: AFAM chain 520 XSR-G Xs-ring 114 w. rivet link - a520xsr.g.114

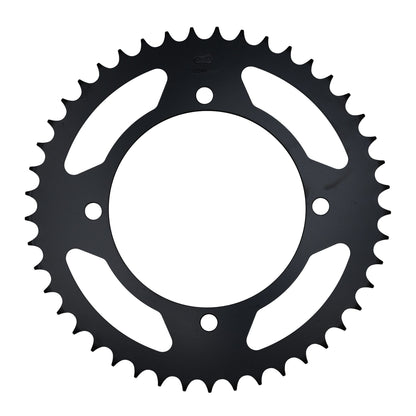

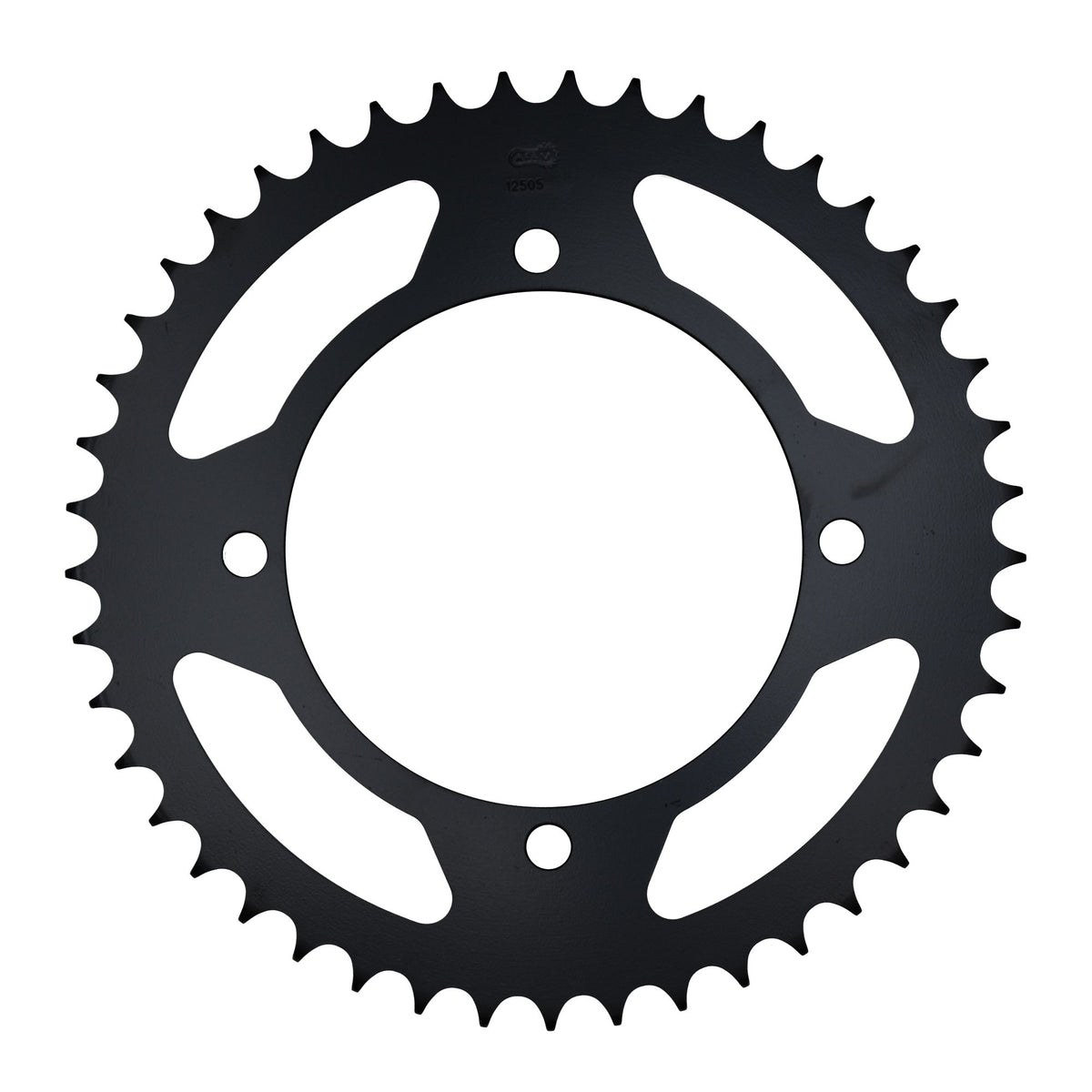

• Rear sprocket: AFAM rear sprocket STEEL #520 47 teeth - a12505.47
• Gear ratio sprocket-chain-rear sprocket: 15-114-47

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport and off-road

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-34226

Suitable for

Yamaha 501 - 750 cc TT 600 RE DJ012 2003
Yamaha 501 - 750 cc TT 600 RE DJ012 2004
