AFAM chain kit for Yamaha TW 125 (80 km/h) 2002 428 XMRG chain kit

AFAM chain kit for Yamaha TW 125 (80 km/h) 2002 428 XMRG chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha TW 125 (80 km/h) DE05 2002-2002

• Front sprocket: AFAM sprocket #428 14 teeth - a21305.14
• Chain: AFAM chain 428 XMR-G Xs-Ring 126 w. clip link - a428xmr.g.126

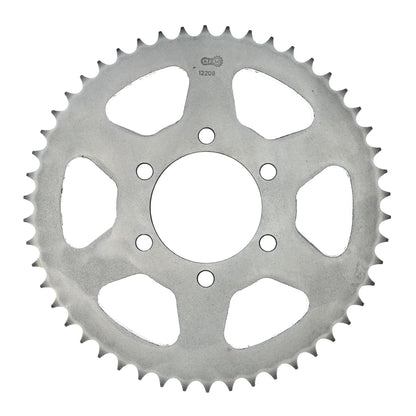

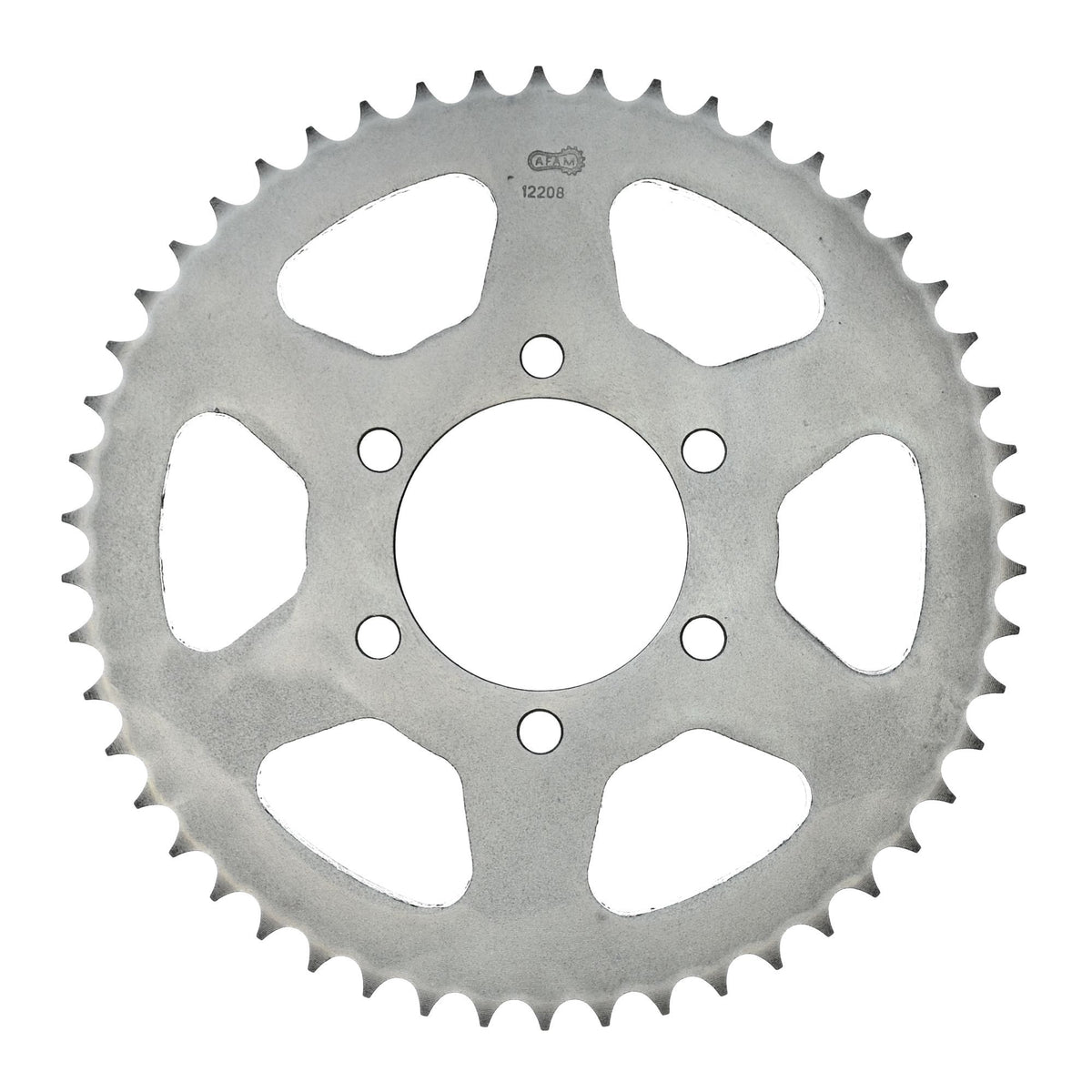

• Rear sprocket: AFAM rear sprocket STEEL #428 51 teeth - a12208.51
• Gear ratio sprocket-chain-rear sprocket: 14-126-51

AFAM 428 XMR-G

Reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 250 cc

Technical data:
Pitch: 428
Pin length: 20.10 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.03 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-18653

Fits

Yamaha 101 - 125 cc TW 125 (80 km/h) DE05 2002
