AFAM chain kit for Yamaha TW 125 (80 km/h) 99-01 428 R1G chain kit

AFAM chain kit for Yamaha TW 125 (80 km/h) 99-01 428 R1G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha TW 125 (80 km/h) DE012 1999-2001

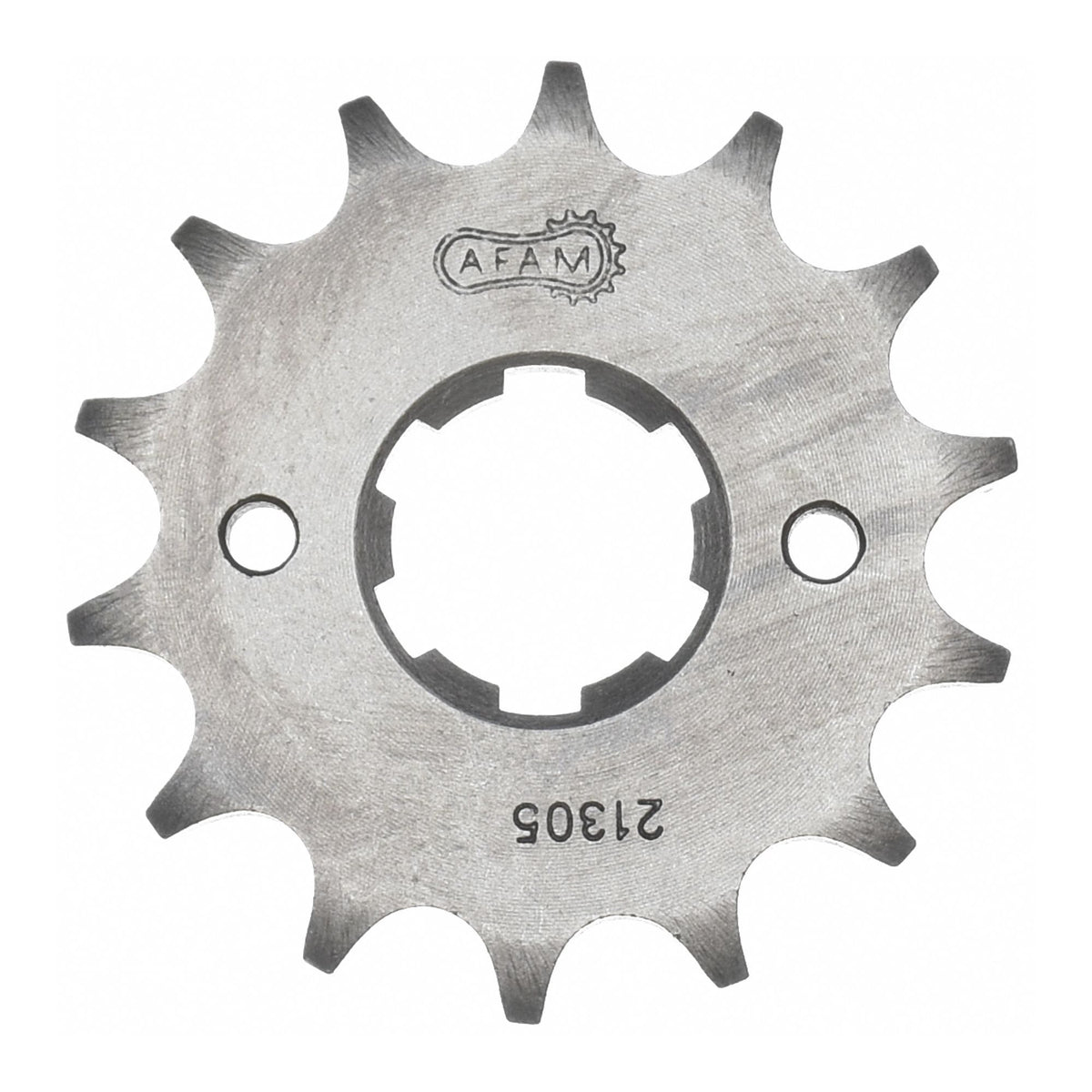

• Front sprocket: AFAM front sprocket #428 14 teeth - a21305.14
• Chain: AFAM chain 428 R1-G reinforced 122 with clip link - a428r1.g.122

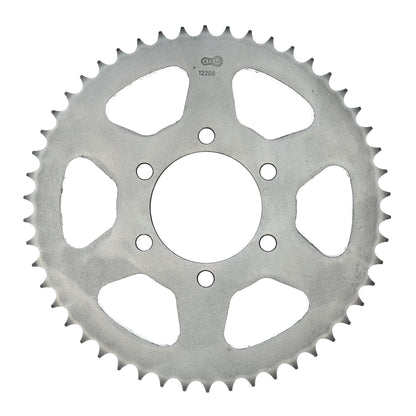

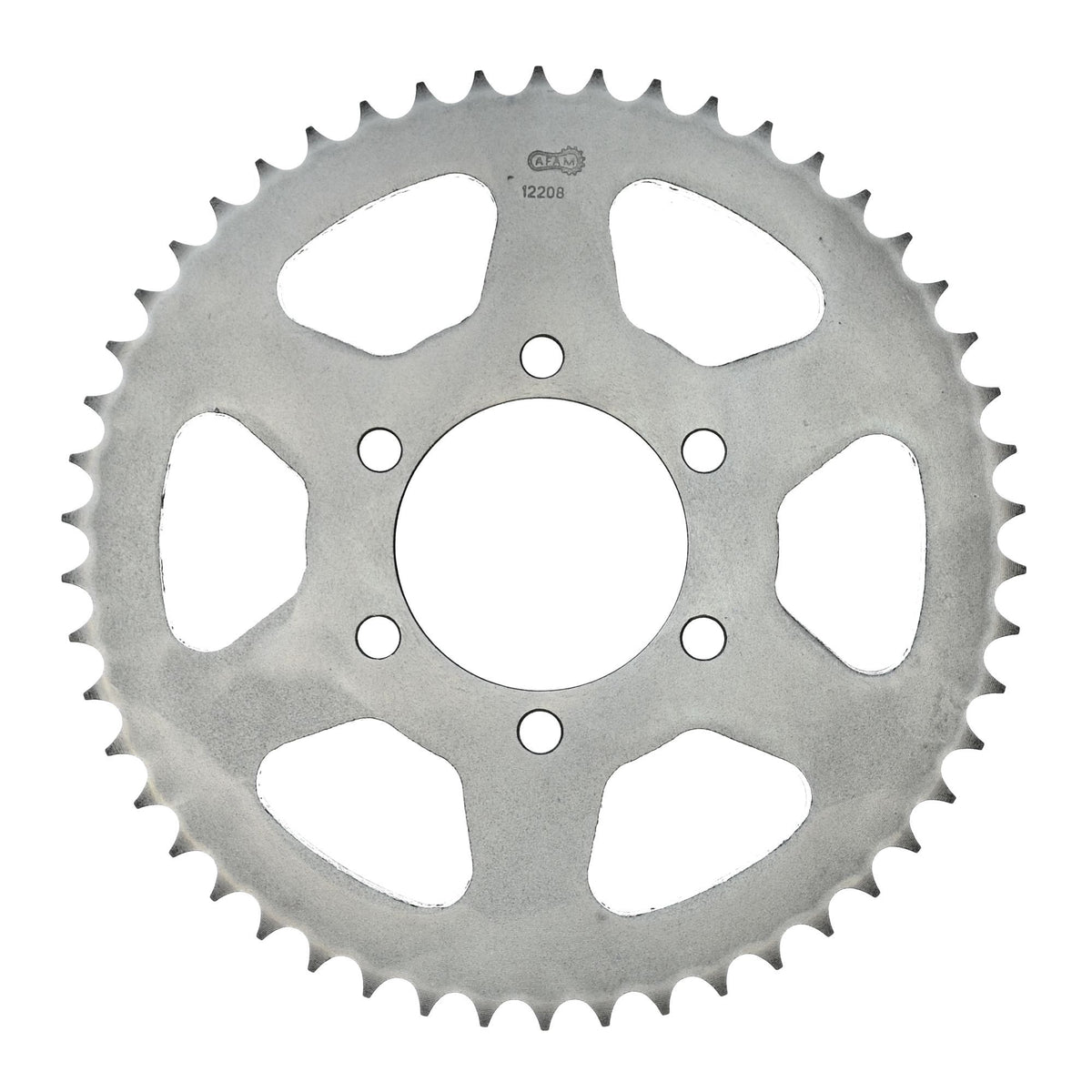

• Rear sprocket: AFAM rear sprocket STEEL #428 50 teeth - a12208.50
• Gear ratio front sprocket-chain-rear sprocket: 14-122-50

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical specifications:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-53174

Fits

Yamaha 101 - 125 cc TW 125 (80 km/h) DE012 1999
Yamaha 101 - 125 cc TW 125 (80 km/h) DE012 2000
Yamaha 101 - 125 cc TW 125 (80 km/h) DE012 2001
