AFAM chain kit for Yamaha TZR 250 87-92 520 MR2G chain kit

AFAM Chain Kit for Yamaha TZR 250 87-92 520 MR2G Chain Kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Yamaha TZR 250 2MA 1987-1992

• Sprocket: AFAM sprocket #520 14 teeth - a27500.14
• Chain: AFAM chain 520 MR2-G w. clip master link - a520mr2.g.110

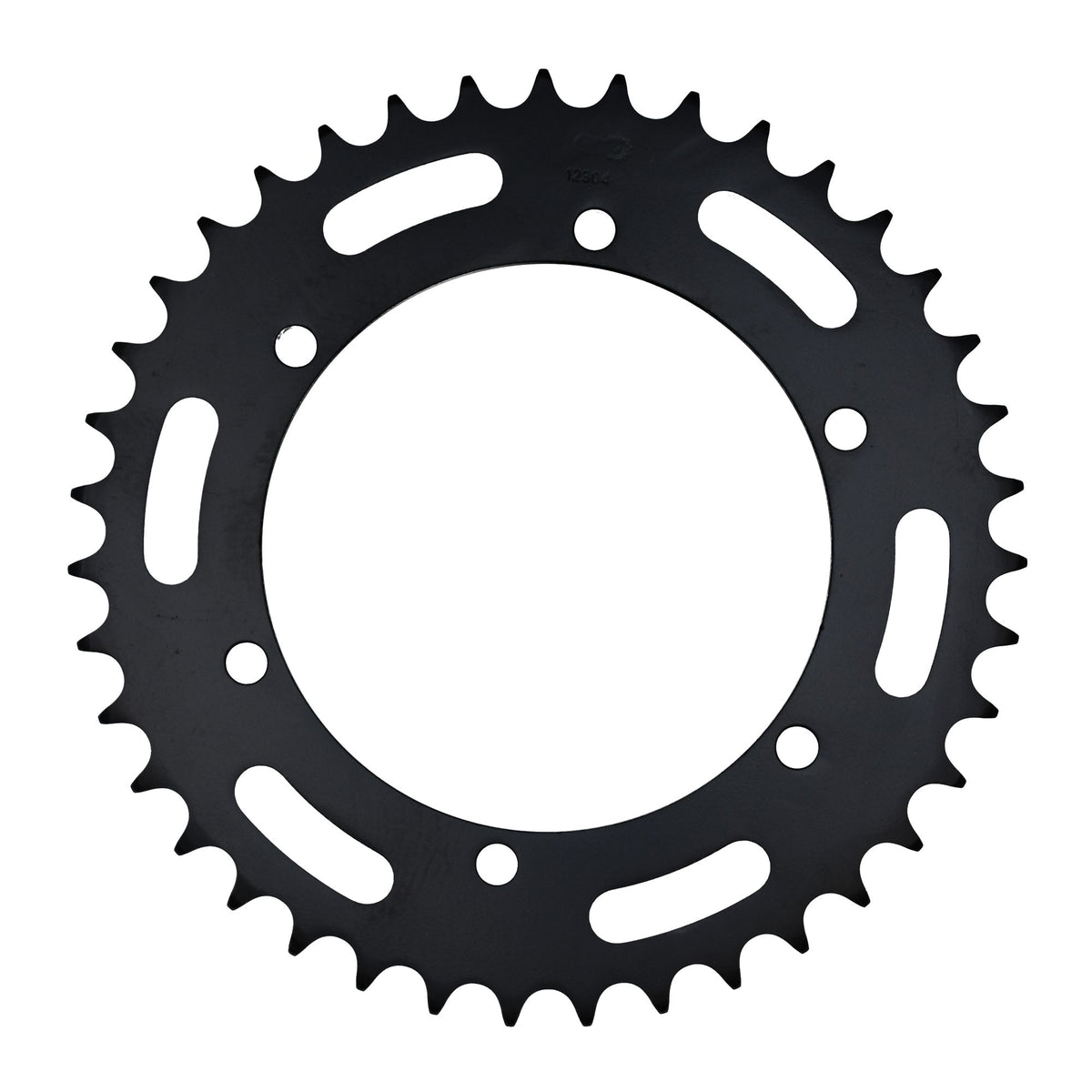

• Rear sprocket: Esjot rear sprocket 12304-41 STEEL #520 41 teeth - a12304.41
• Gear ratio sprocket-chain-rear sprocket: 14-110-41

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / street, offroad and motocross

Technical specifications:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand name serves exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-28384

Suitable for

Yamaha 126 - 250 cc TZR 250 2MA 1987
Yamaha 126 - 250 cc TZR 250 2MA 1988
Yamaha 126 - 250 cc TZR 250 2MA 1989
Yamaha 126 - 250 cc TZR 250 2MA 1990
Yamaha 126 - 250 cc TZR 250 2MA 1991
Yamaha 126 - 250 cc TZR 250 2MA 1992
