AFAM chain kit for Yamaha WR 250 F 10-14 520 XMR3 chain kit

AFAM Chain Kit for Yamaha WR 250 F 10-14 520 XMR3 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Yamaha WR 250 F CG30W 2010-2014 chain kit

• Sprocket: AFAM sprocket #520 14 teeth - a21309.14
• Chain: AFAM chain 520 XMR3 Xs-Ring 114 w. rivet link - a520xmr3.114

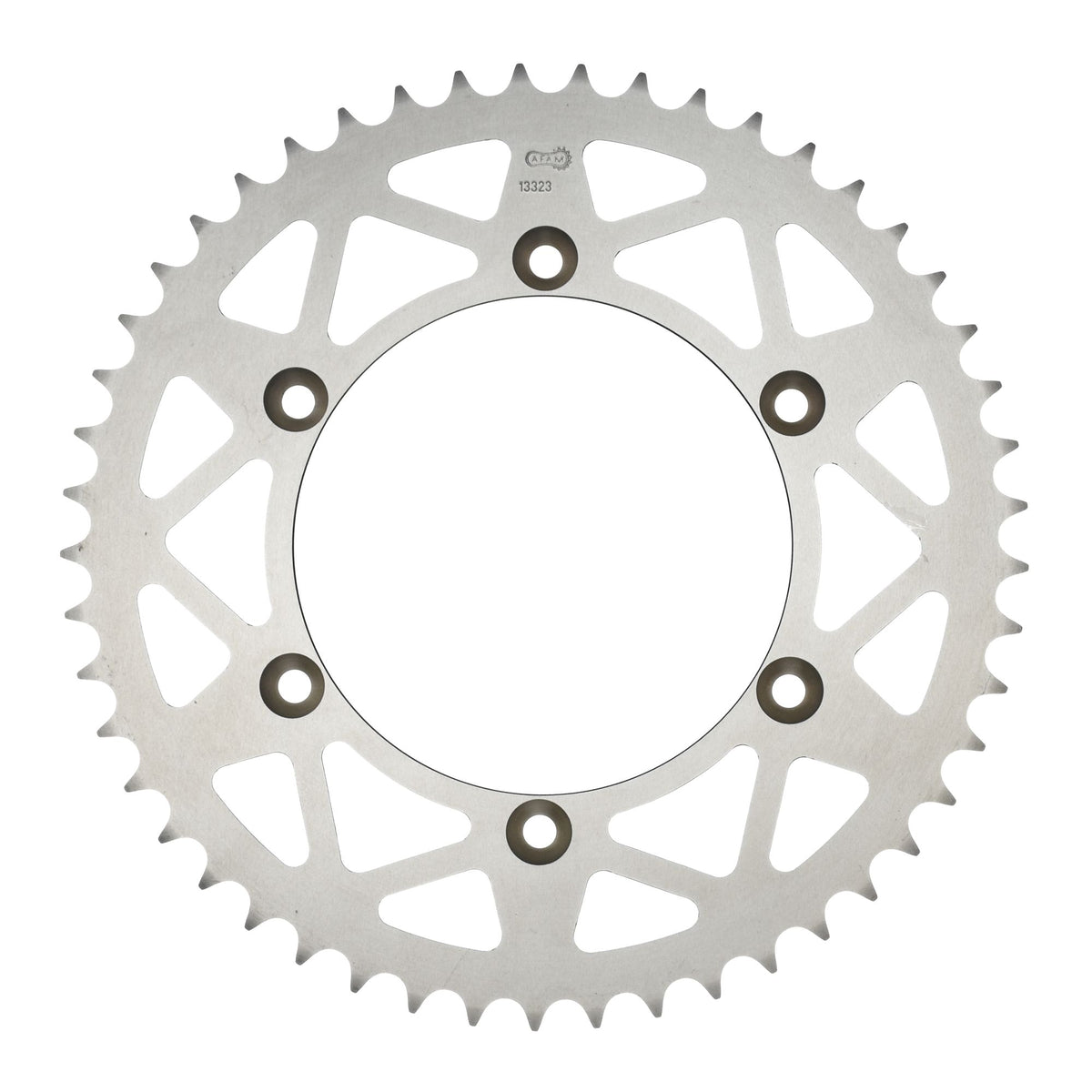

• Rear sprocket: AFAM rear sprocket ALU #520 47 teeth - a13323n.47
• Gear ratio sprocket-chain-rear sprocket: 14-114-47

AFAM 520 XMR3

Reinforced chain with smooth running properties
Xs-Ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered goods are accessories/spare parts from a third-party manufacturer and were not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-33992

Suitable for

Yamaha 126 - 250 cc WR 250 F CG30W 2010
Yamaha 126 - 250 cc WR 250 F CG30W 2011
Yamaha 126 - 250 cc WR 250 F CG30W 2012
Yamaha 126 - 250 cc WR 250 F CG30W 2013
Yamaha 126 - 250 cc WR 250 F CG30W 2014
