AFAM chain kit for Yamaha WR 250 F 15-19 520 XHR2G chain kit

AFAM chain kit for Yamaha WR 250 F 15-19 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha WR 250 F CG36W 2015-2019

• Sprocket: AFAM sprocket #520 13 teeth - a21309.13
• Chain: AFAM chain 520 XHR2-G Xs-Ring 114 with rivet link - a520xhr2.g.114

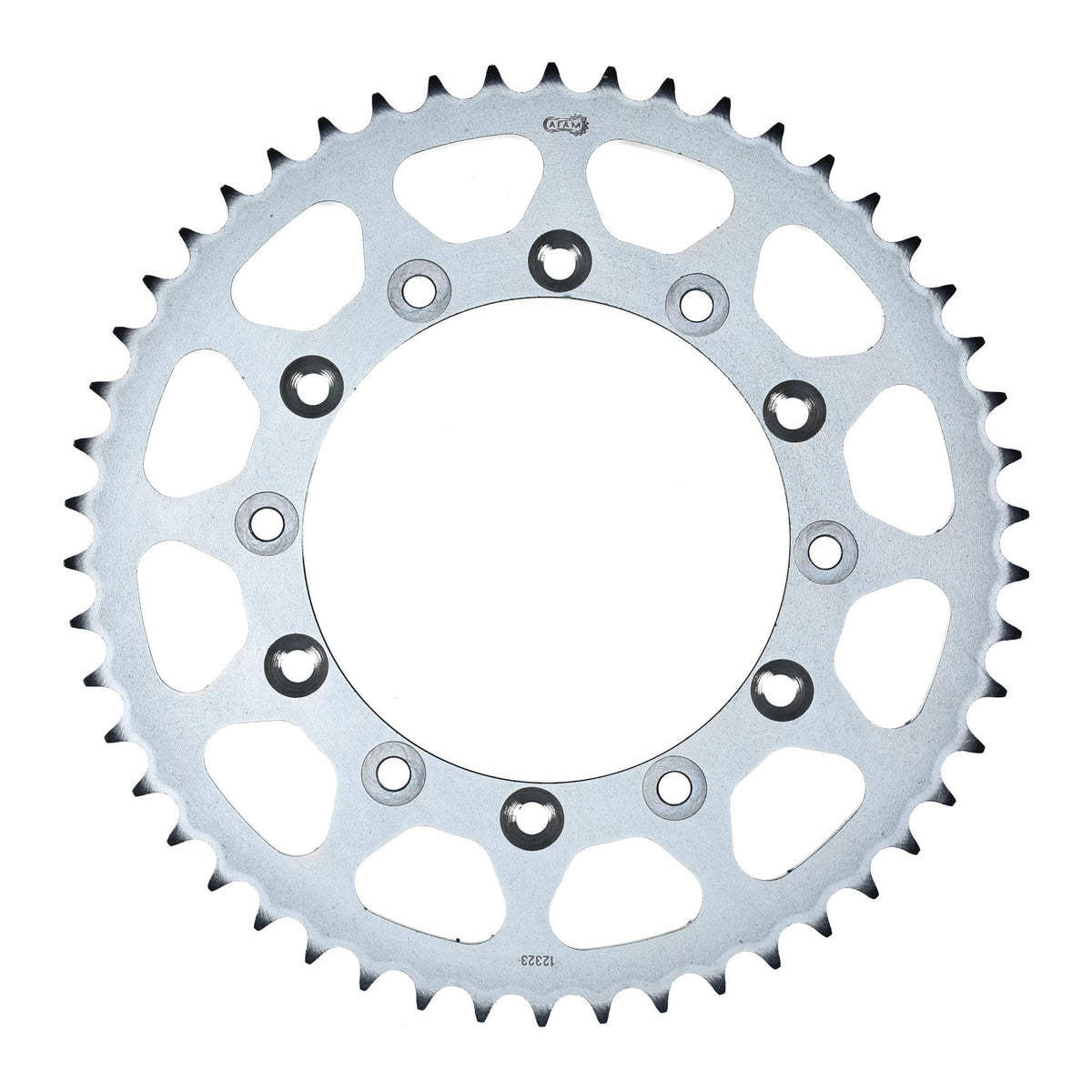

• Rear sprocket: Esjot rear sprocket 10304-50 12323 STEEL #520 50 teeth - a10304.50
• Gear ratio sprocket-chain-rear sprocket: 13-114-50

AFAM 520 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-51618

Fits

Yamaha 126 - 250 cc WR 250 F CG36W 2015
Yamaha 126 - 250 cc WR 250 F CG36W 2016
Yamaha 126 - 250 cc WR 250 F CG36W 2017
Yamaha 126 - 250 cc WR 250 F CG36W 2018
Yamaha 126 - 250 cc WR 250 F CG36W 2019
