AFAM chain kit for Yamaha WR 250 F 2005 520 MR2G chain kit

AFAM Chain Kit for Yamaha WR 250 F 2005 520 MR2G Chain Set

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to indicate compatibility!

Components of the chain kit Yamaha WR 250 F CG22W 2005-2005

• Sprocket: AFAM sprocket #520 13 teeth - a21309.13
• Chain: AFAM chain 520 MR2-G w. clip master link - a520mr2.g.114

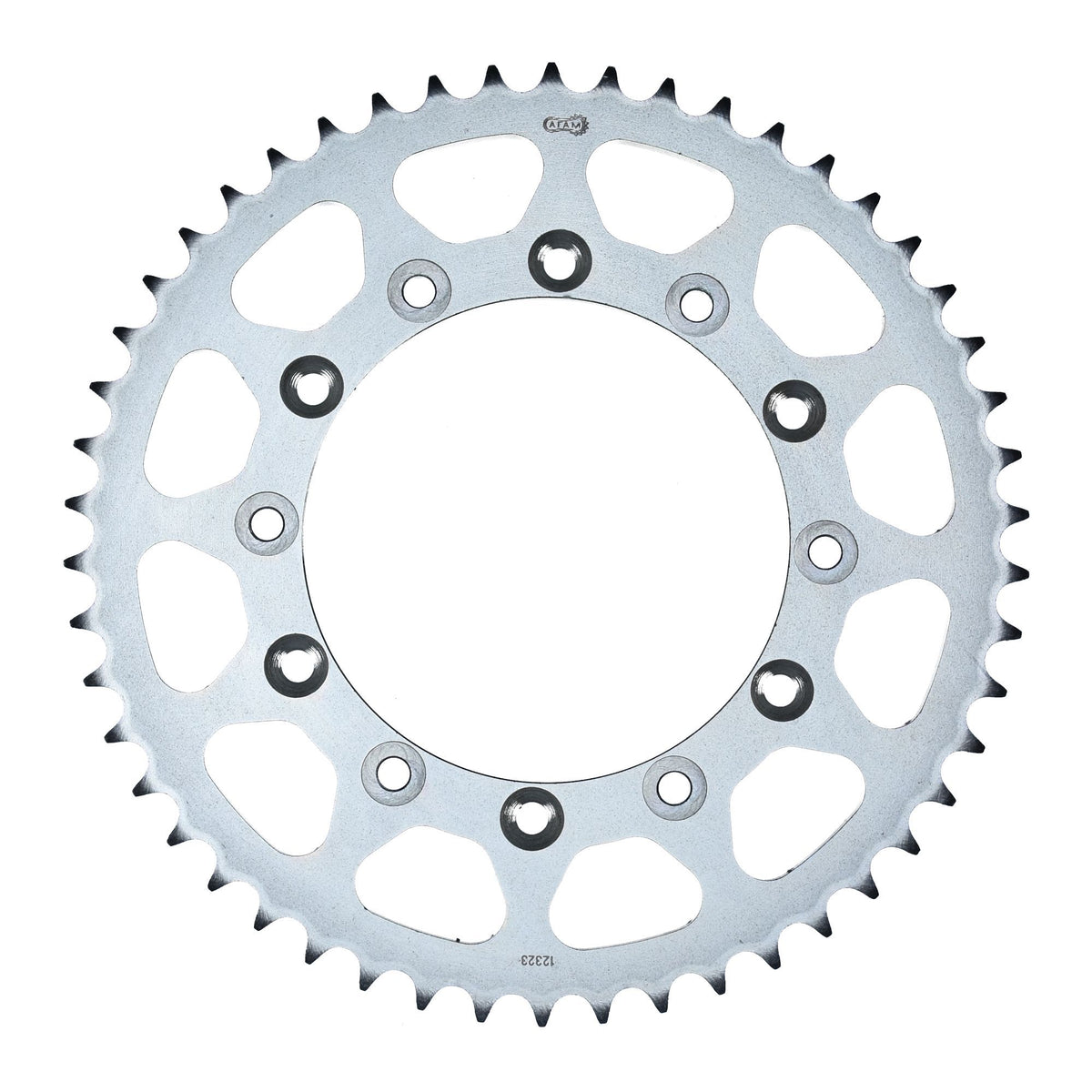

• Rear sprocket: Esjot rear sprocket 10304-50 12323 STEEL #520 50 teeth - a10304.50
• Gear ratio sprocket-chain-rear sprocket: 13-114-50

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / street, off-road and moto-cross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-53469

Fits

Yamaha 126 - 250 cc WR 250 F CG22W 2005
