AFAM chain kit for Yamaha WR 250 F 2006 520 XSRG chain kit

AFAM chain kit for Yamaha WR 250 F 2006 520 XSRG chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit for Yamaha WR 250 F CG24W 2006-2006

• Front sprocket: AFAM sprocket #520 13 teeth - a21309.13
• Chain: AFAM chain 520 XSR-G Xs-ring 114 with rivet link - a520xsr.g.114

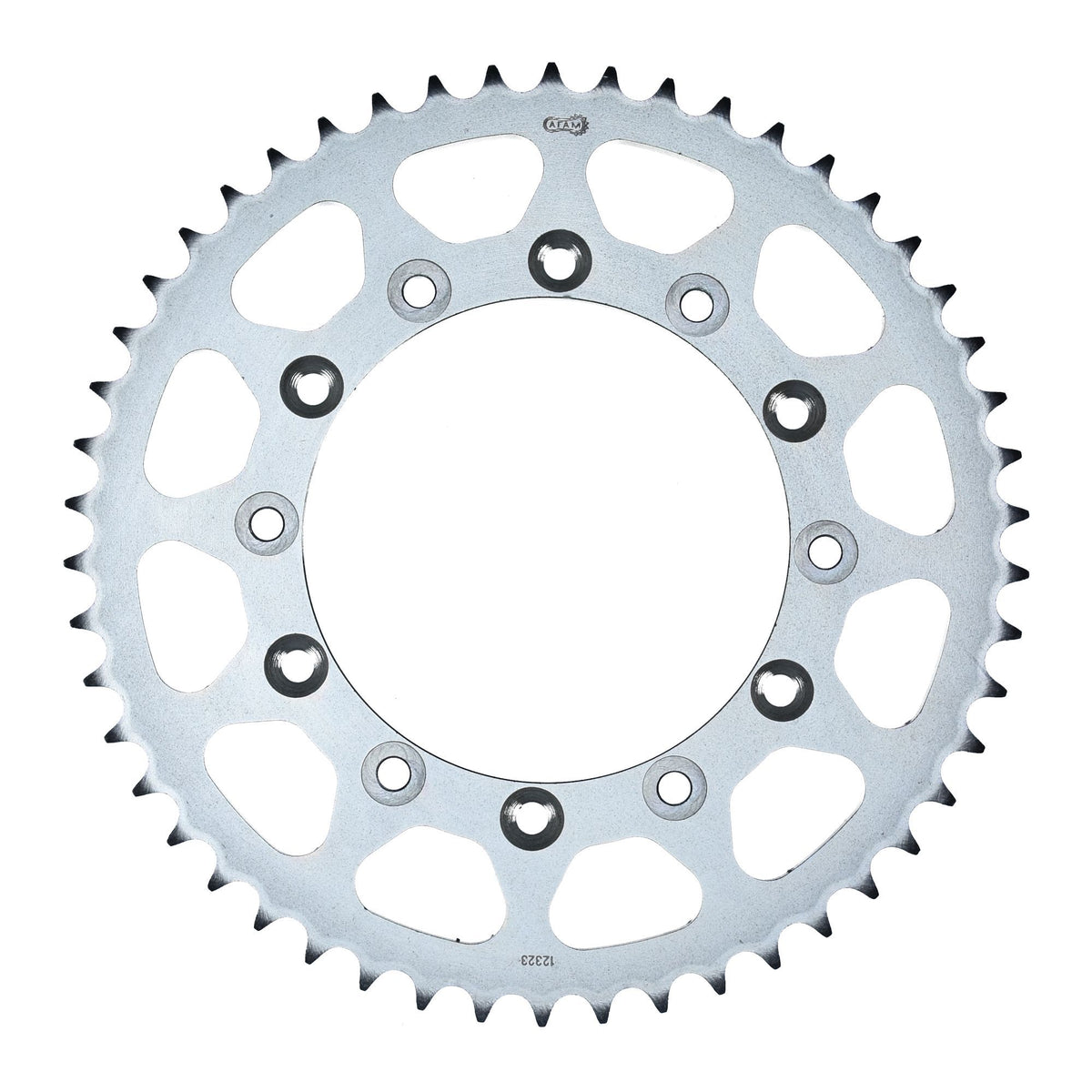

• Rear sprocket: Esjot sprocket 10304-50 12323 STEEL #520 50 teeth - a10304.50
• Gear ratio front sprocket-chain-rear sprocket: 13-114-50

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport, and off-road

Technical specifications:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-33948

Fits

Yamaha 126 - 250 cc WR 250 F CG24W 2006
