AFAM chain kit for Yamaha WR 250 F 2007 520 XMR3 chain kit

AFAM chain kit for Yamaha WR 250 F 2007 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit for Yamaha WR 250 F CG26W 2007-2007

• Front sprocket: AFAM front sprocket #520 13 teeth - a21309.13
• Chain: AFAM chain 520 XMR3 Xs-ring 114 links with rivet link - a520xmr3.114

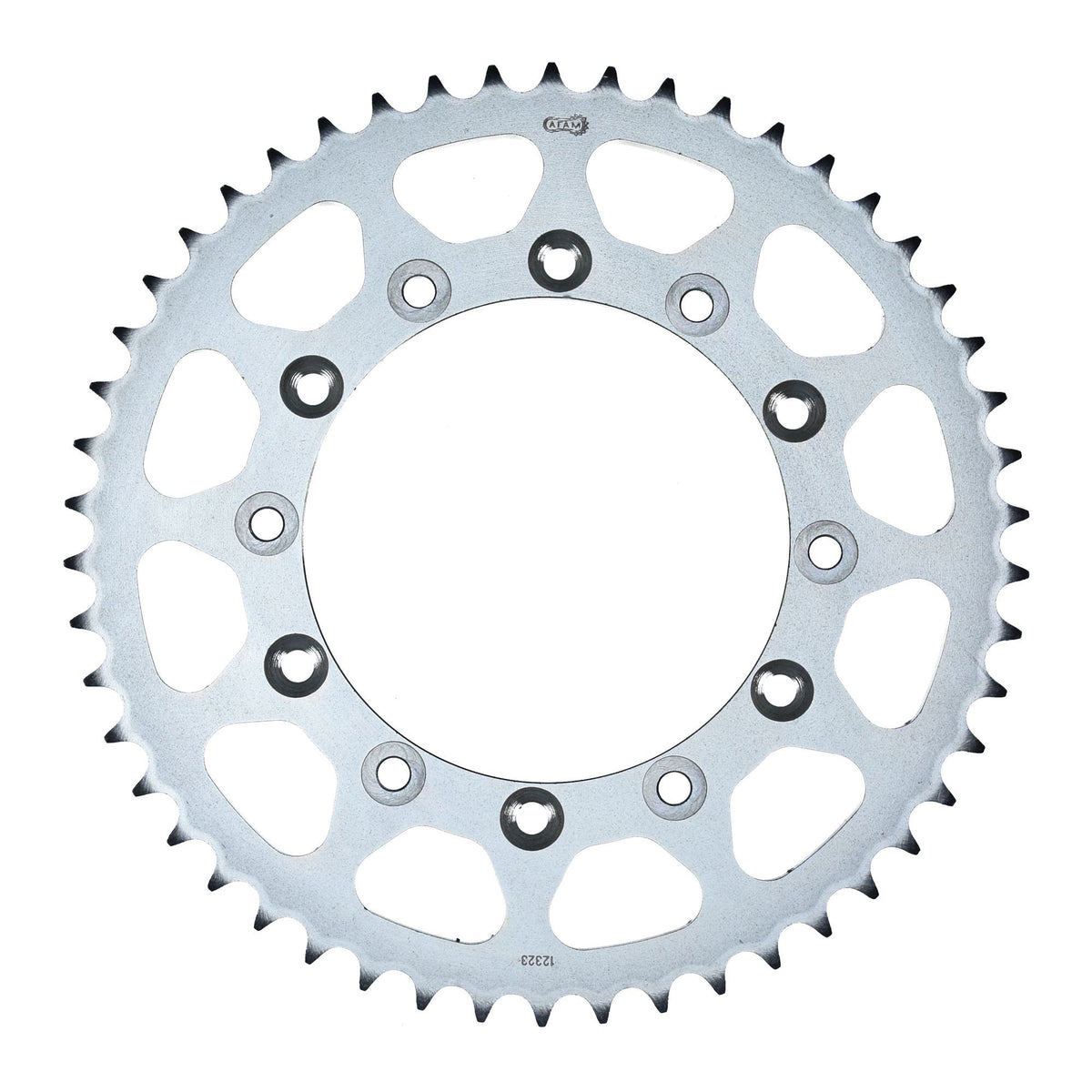

• Rear sprocket: Esjot rear sprocket 10304-50 12323 STEEL #520 50 teeth - a10304.50
• Gear ratio front sprocket-chain-rear sprocket: 13-114-50

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-33955

Suitable for

Yamaha 126 - 250 cc WR 250 F CG26W 2007
