AFAM chain kit for Yamaha WR 250 F 2008 520 MR2G chain kit

AFAM chain kit for Yamaha WR 250 F 2008 520 MR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to illustrate compatibility!

Components of the chain kit Yamaha WR 250 F CG30W 2008-2008

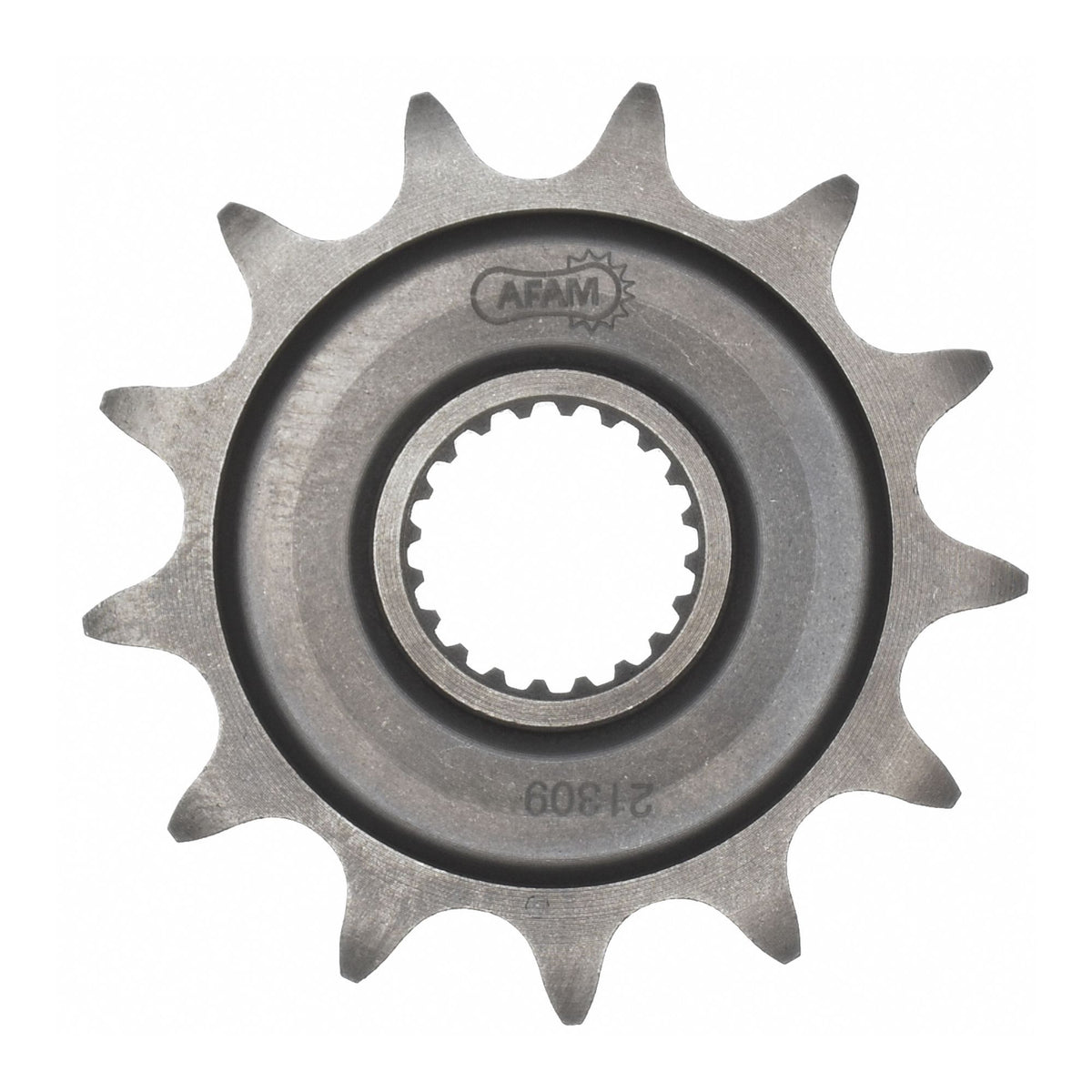

• Front sprocket: AFAM front sprocket #520 13 teeth - a21309.13
• Chain: AFAM chain 520 MR2-G w. clip master link - a520mr2.g.114

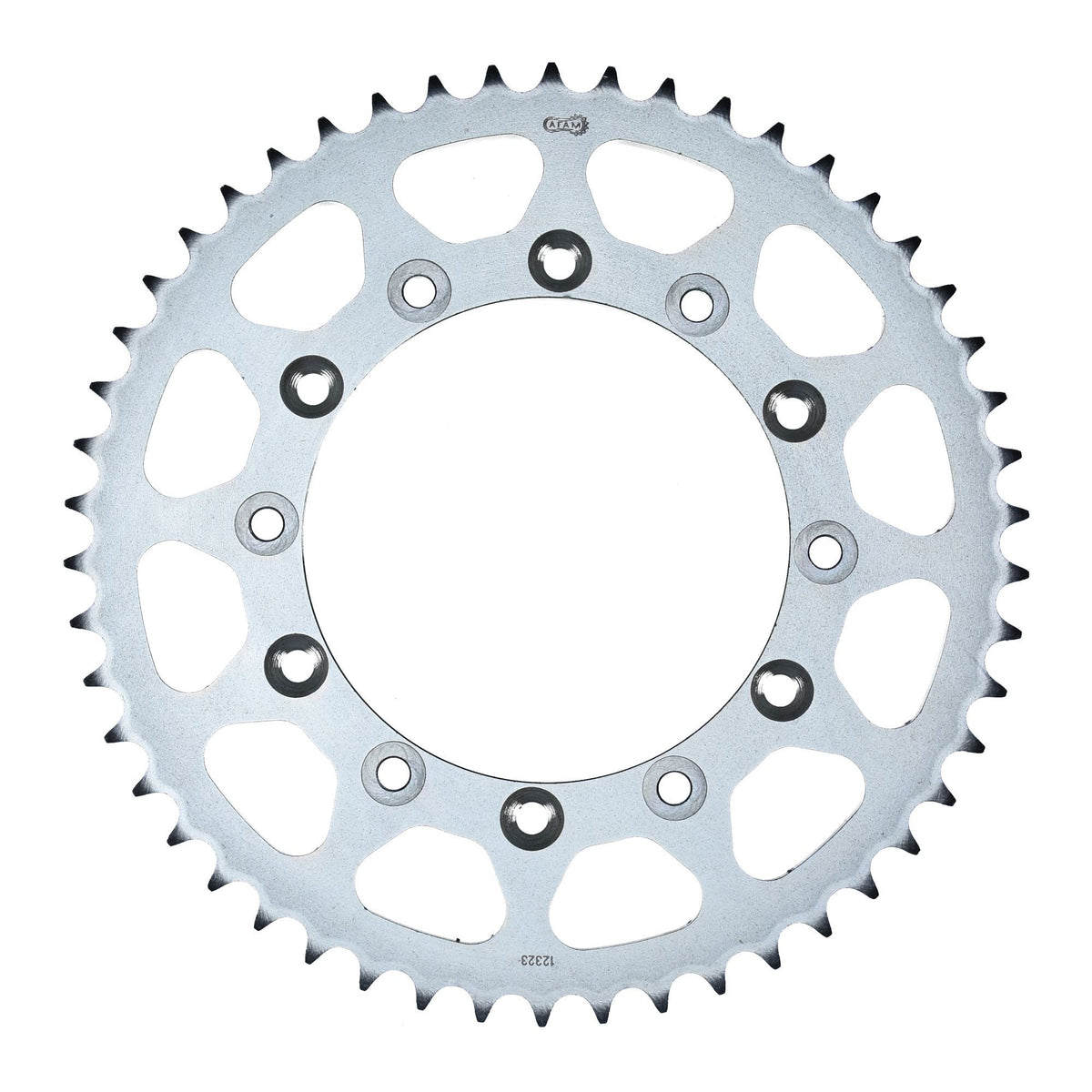

• Rear sprocket: Esjot rear sprocket 10304-50 12323 STEEL #520 50 teeth - a10304.50
• Gear ratio sprocket-chain-rear sprocket: 13-114-50

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / street, offroad and motocross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-53501

Suitable for

Yamaha 126 - 250 cc WR 250 F CG30W 2008
