AFAM chain kit for Yamaha WR 250 F 2009 520 XMR3 chain kit

AFAM Chain Kit for Yamaha WR 250 F 2009 520 XMR3 Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Yamaha WR 250 F CG30W 2009-2009

• Sprocket: AFAM sprocket #520 13 teeth - a21309.13
• Chain: AFAM chain 520 XMR3 Xs-ring 114 with rivet link - a520xmr3.114

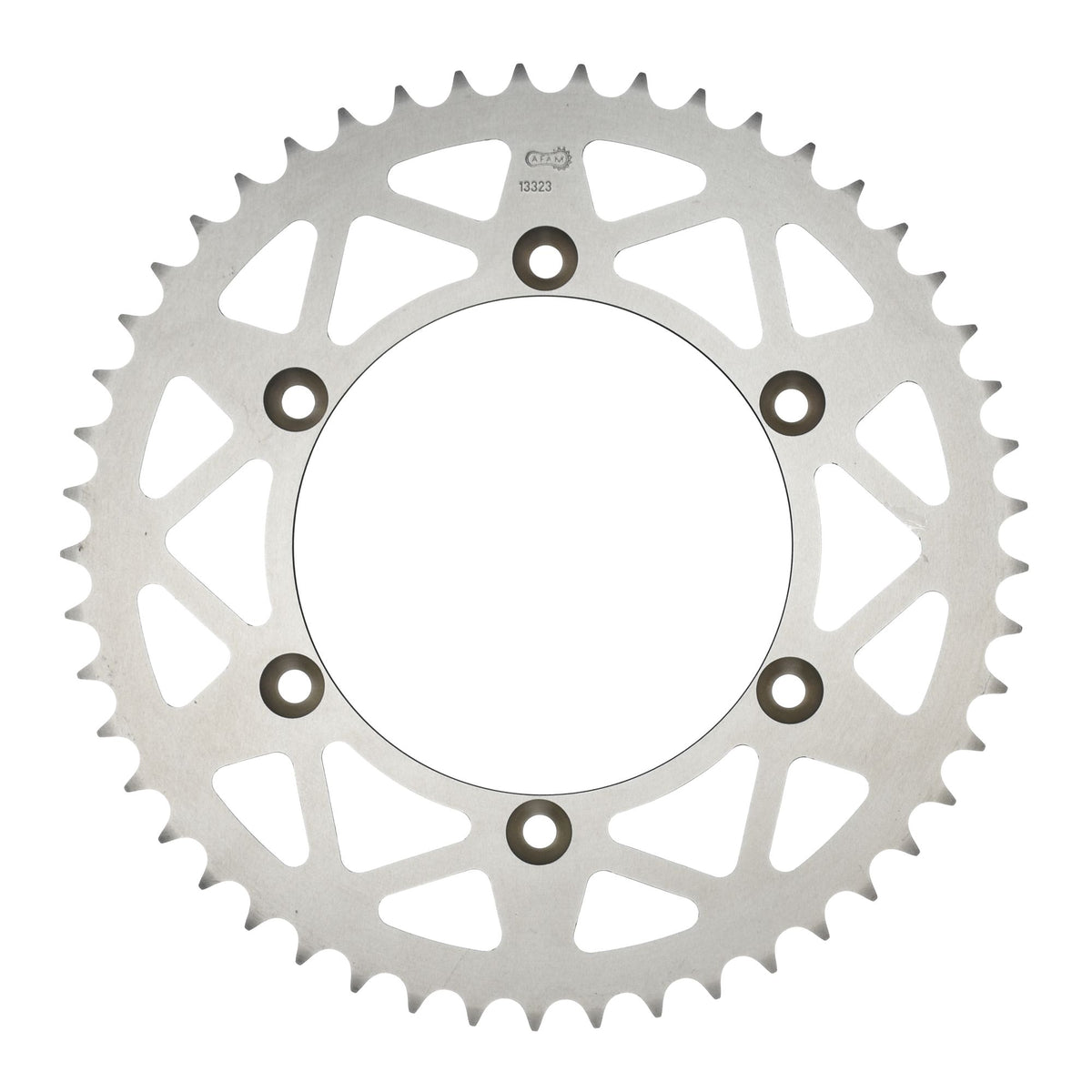

• Rear sprocket: AFAM rear sprocket ALU #520 47 teeth - a13323n.47
• Gear ratio sprocket-chain-rear sprocket: 13-114-47

AFAM 520 XMR3

Reinforced chain with smooth-running properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. Brand names are used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-53506

Suitable for

Yamaha 126 - 250 cc WR 250 F CG30W 2009
