AFAM chain kit for Yamaha WR 400 F 1998 520 XHR2G chain kit

AFAM Chain Kit for Yamaha WR 400 F 1998 520 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha WR 400 F CH02W 1998-1998

• Front sprocket: AFAM sprocket #520 14 teeth - a27500.14
• Chain: AFAM chain 520 XHR2-G Xs-ring 114 with rivet link - a520xhr2.g.114

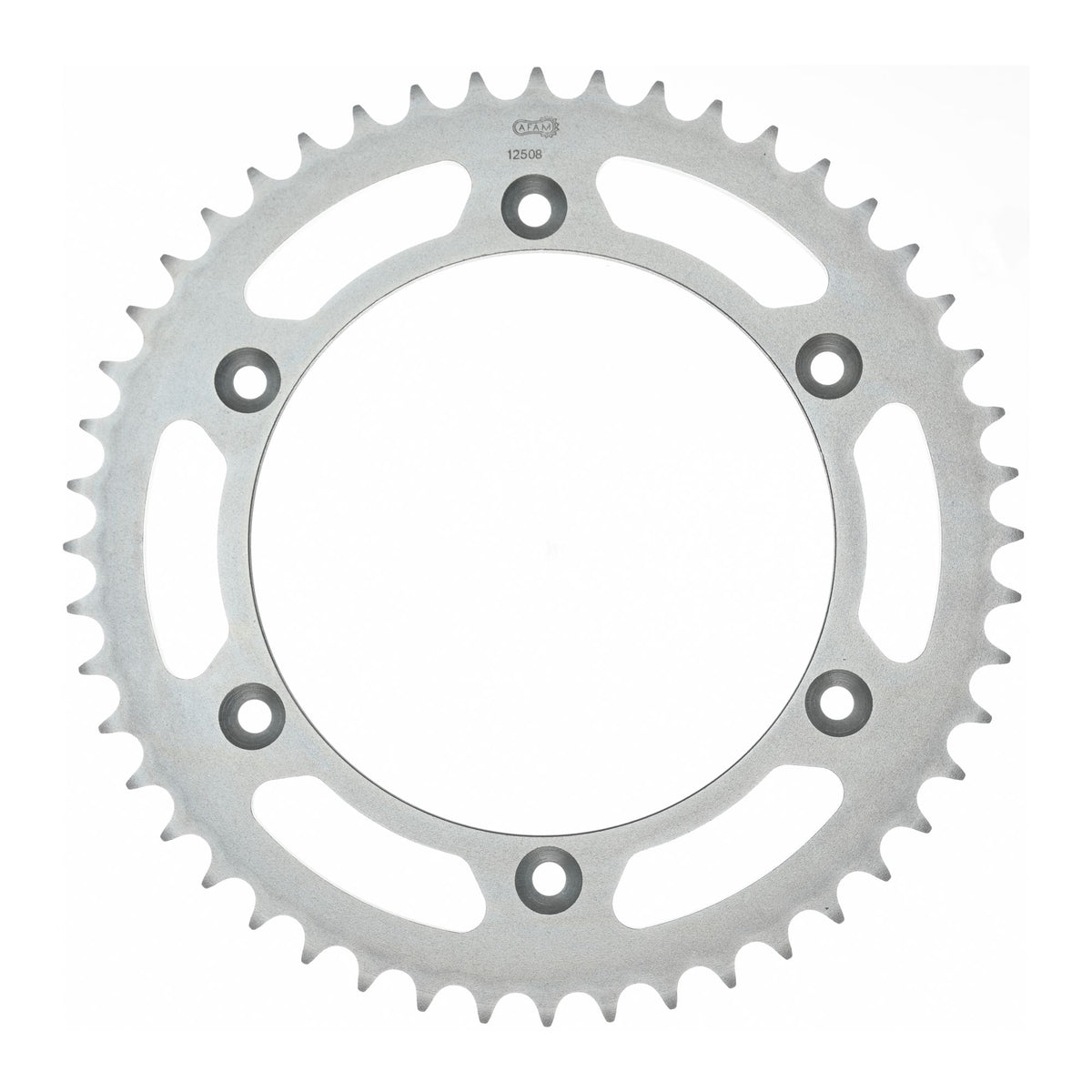

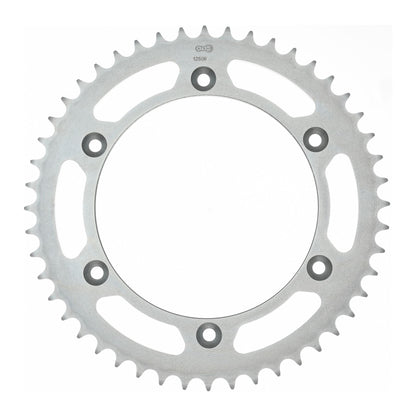

• Rear sprocket: AFAM steel sprocket #520 50 teeth - a12508.50
• Gear ratio sprocket-chain-rear sprocket: 14-114-50

AFAM 520 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-51831

Suitable for

Yamaha 251 - 500 cc WR 400 F CH02W 1998
