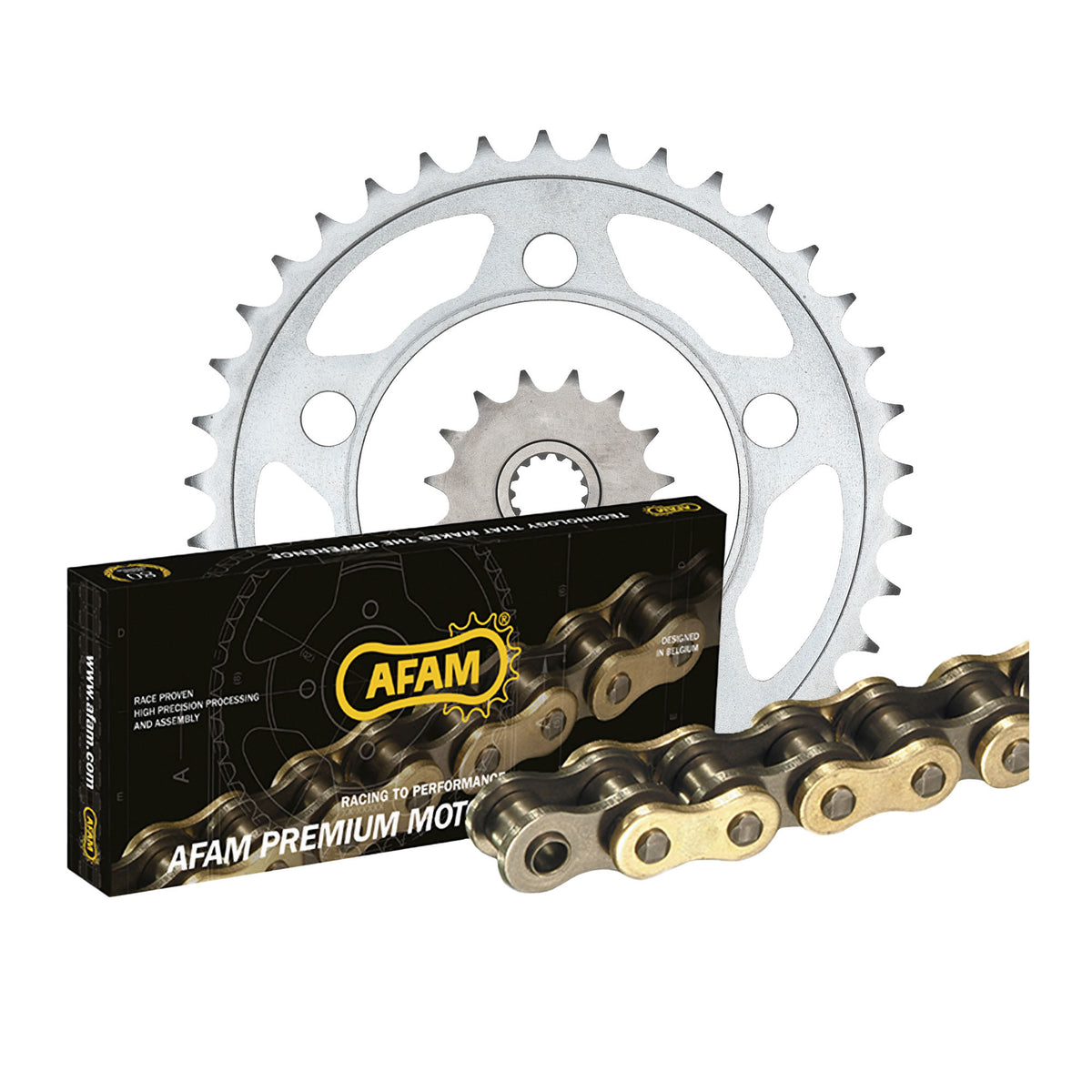

AFAM chain kit for Yamaha WR 450 F 2013 520 MX6GG chain kit

AFAM chain kit for Yamaha WR 450 F 2013 520 MX6GG chain set

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Yamaha WR 450 F 1DX6 2013-2013

• Front sprocket: AFAM front sprocket #520 14 teeth - a27500.14
• Chain: AFAM chain 520 MX6-GG 114 w. clip link - a520mx6.gg.114
• Rear sprocket: Esjot rear sprocket 10304-47 12323 STEEL #520 47 teeth - a10304.47
• Gear ratio front sprocket-chain-rear sprocket: 14-114-47

AFAM 520 MX6-GG MX Racing GP

Pure Moto-Cross chain
Without O-rings
Color: Gold/Gold
Application by displacement: up to 500 cc / Moto-Cross only

Technical specifications:
Pitch: 520
Pin length: 16.8 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 37.40 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Part number	KKF-65067

Fits

Yamaha 251 - 500 cc WR 450 F 1DX6 2013
