AFAM chain kit for Yamaha XJ 600 N 94-97 520 XMR3 chain kit

AFAM chain kit for Yamaha XJ 600 N 94-97 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit for Yamaha XJ 600 N 4LX 1994-1997

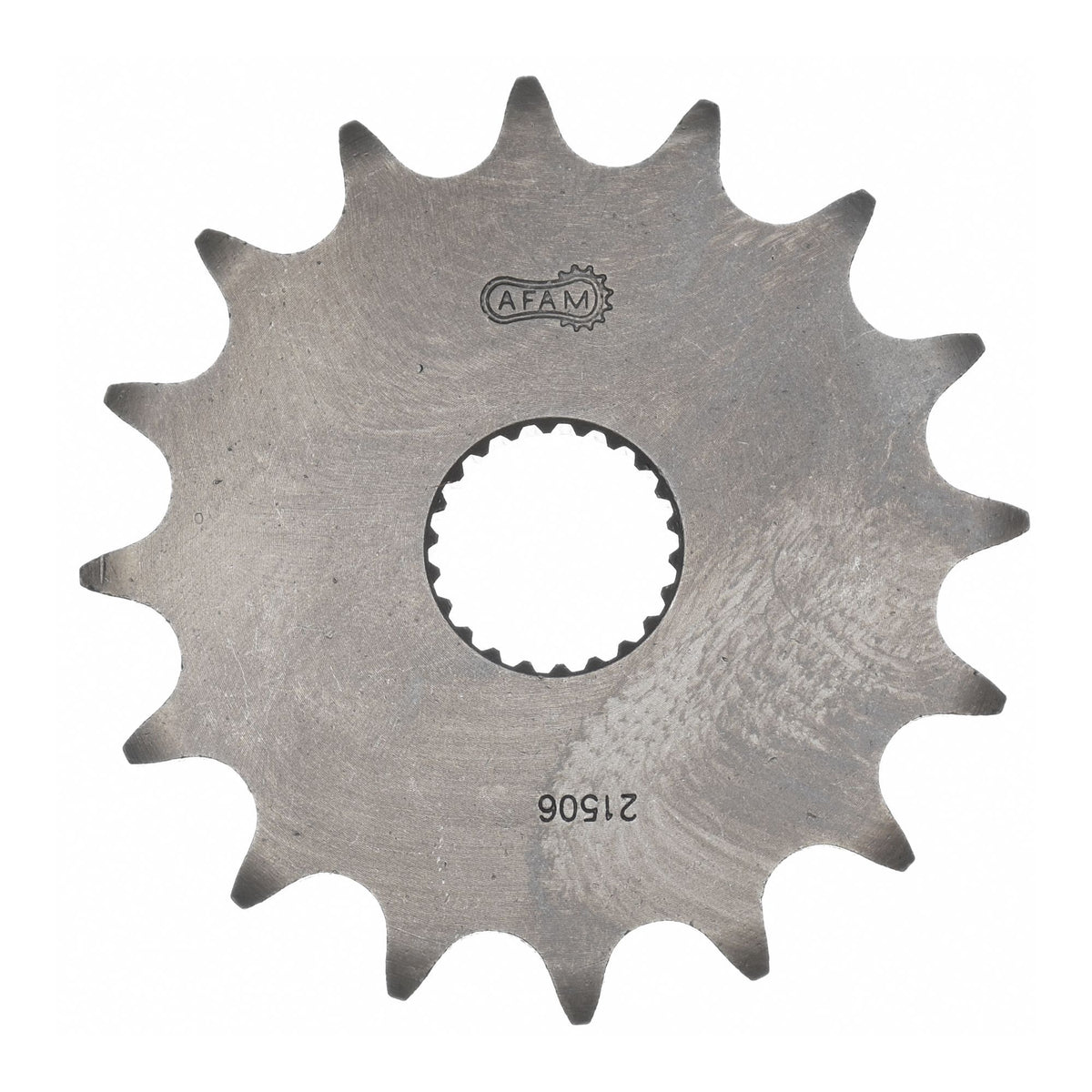

• Sprocket: AFAM sprocket #520 16 teeth - a21506.16
• Chain: AFAM chain 520 XMR3 Xs-ring 110 w. rivet link - a520xmr3.110

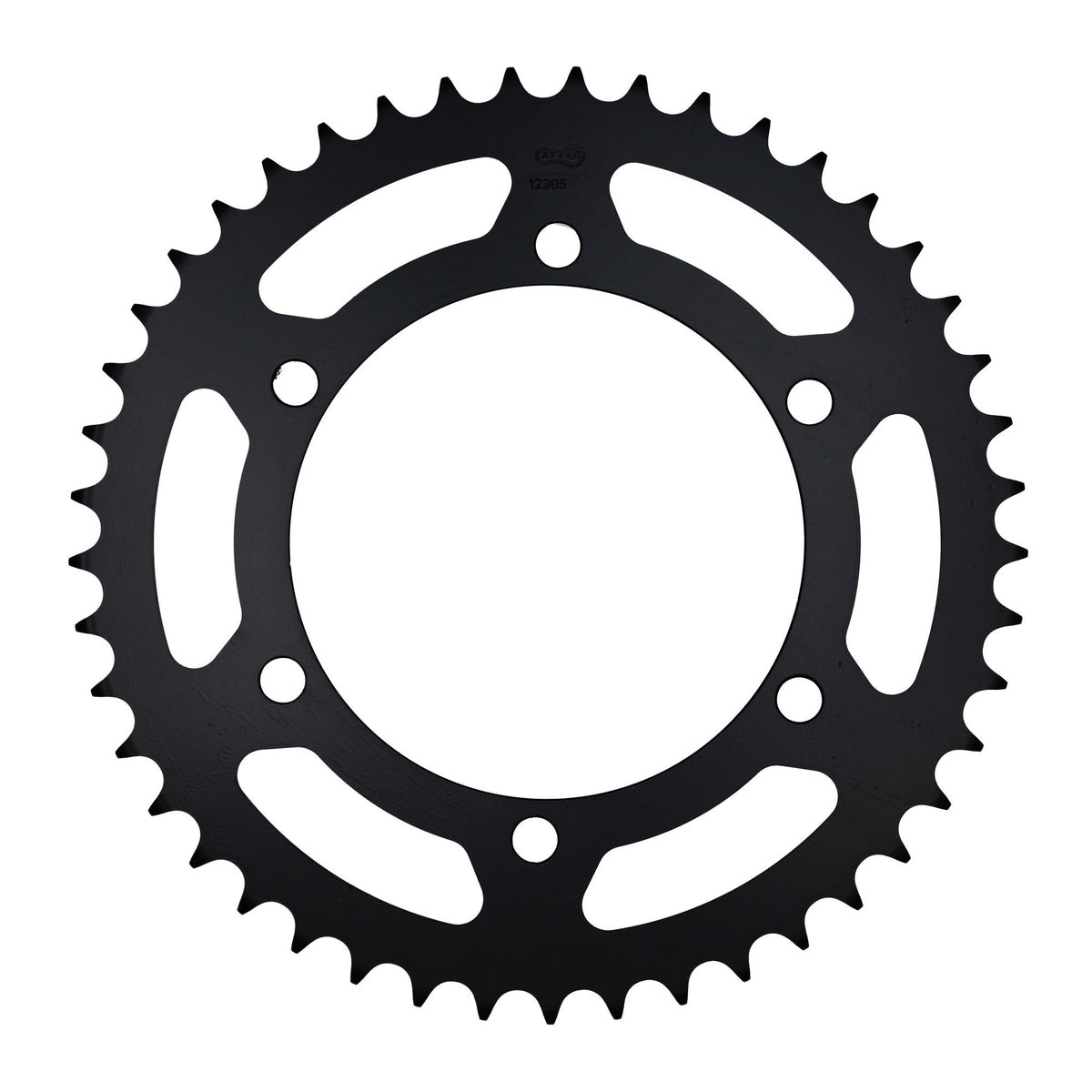

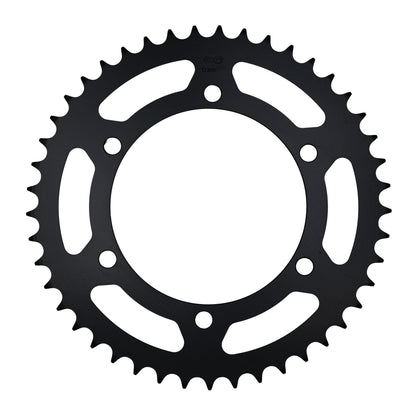

• Rear sprocket: AFAM STEEL rear sprocket #520 48 teeth - a12305.48
• Gear ratio sprocket-chain-rear sprocket: 16-110-48

AFAM 520 XMR3

Reinforced chain with smooth-running properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Part number	KKF-48487

Fits

Yamaha 501 - 750 cc XJ 600 N 4LX 1994
Yamaha 501 - 750 cc XJ 600 N 4LX 1995
Yamaha 501 - 750 cc XJ 600 N 4LX 1996
Yamaha 501 - 750 cc XJ 600 N 4LX 1997
