AFAM chain kit for Yamaha XJ6 ABS 09-12 520 XHR2G chain kit

AFAM chain set for Yamaha XJ6 ABS 09-12 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to illustrate compatibility!

Components of the chain kit Yamaha XJ6 ABS RJ19 2009-2012

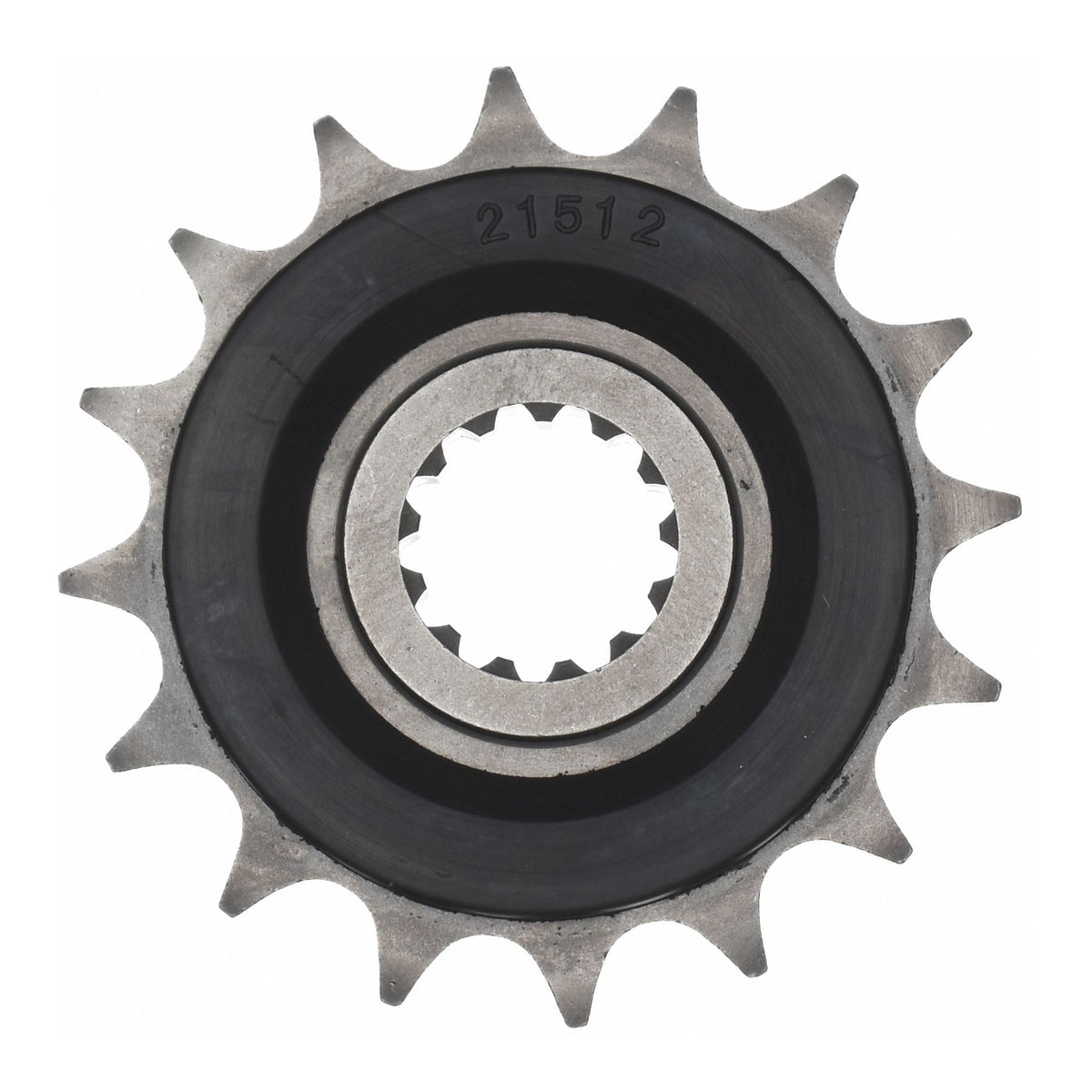

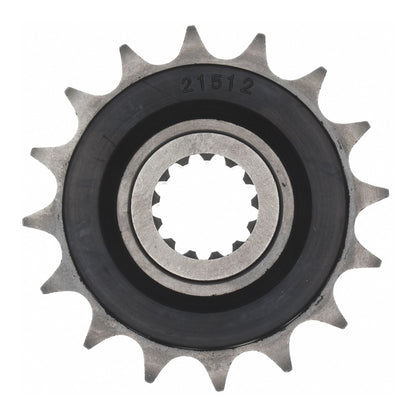

• Pinion: AFAM rubberized pinion #520 Silent Sprocket 16 teeth - a21512oem.16
• Chain: AFAM chain 520 XHR2-G Xs-Ring 118 w. rivet link - a520xhr2.g.118

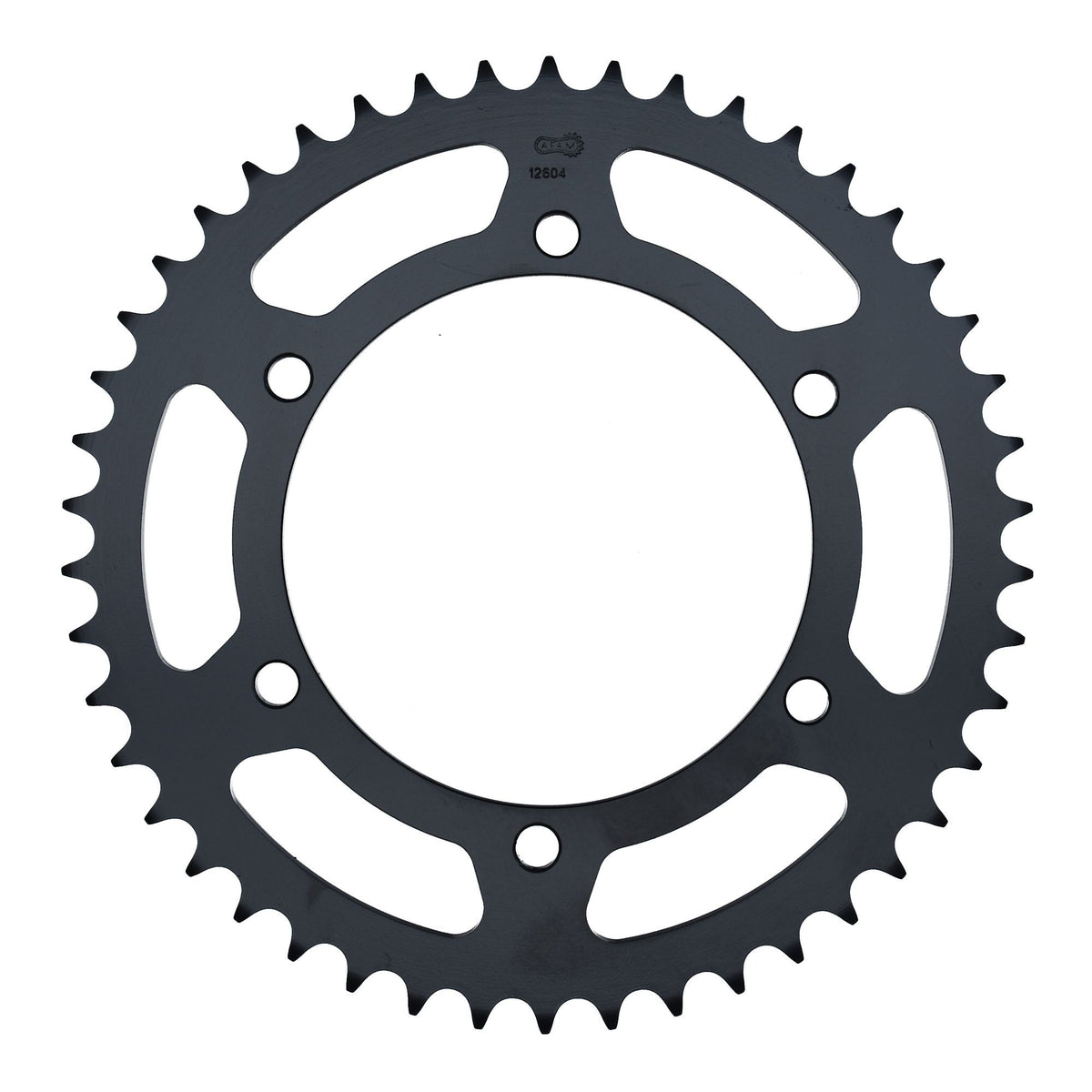

• Sprocket: AFAM STEEL sprocket #520 46 teeth - a12604.46
• Transmission ratio pinion-chain-sprocket: 16-118-46

AFAM 520 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is exclusively for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-54491

Suitable for

Yamaha 501 - 750 ccm XJ6 ABS RJ19 2009
Yamaha 501 - 750 ccm XJ6 ABS RJ19 2010
Yamaha 501 - 750 ccm XJ6 ABS RJ19 2011
Yamaha 501 - 750 ccm XJ6 ABS RJ19 2012
