AFAM chain kit for Yamaha XJ6 Diversion 13-14 520 XSRG chain kit

AFAM Chain Kit for Yamaha XJ6 Diversion 13-14 520 XSRG Chain Kit

Chain kit or chain set for the specified model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit for Yamaha XJ6 Diversion RJ22 2013-2014

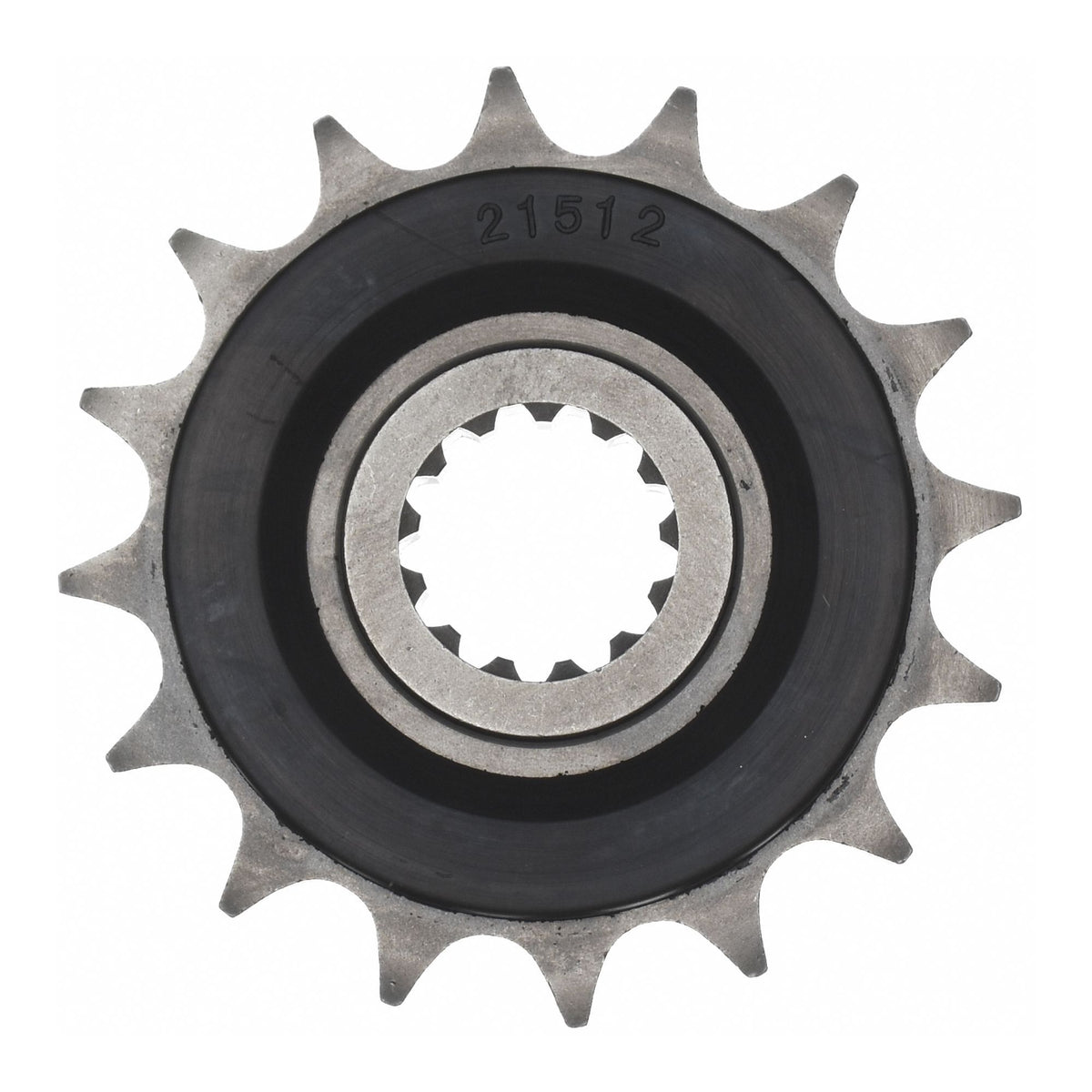

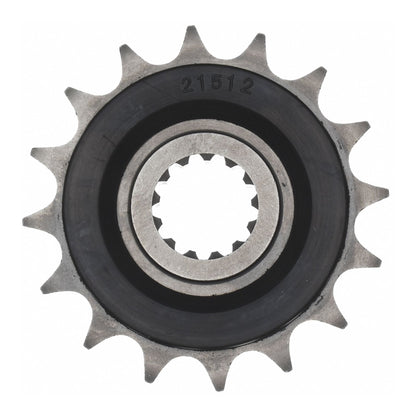

• Front sprocket: AFAM rubberized sprocket #520 Silent Sprocket 16 teeth - a21512oem.16
• Chain: AFAM chain 520 XSR-G XS-Ring 118 with rivet link - a520xsr.g.118

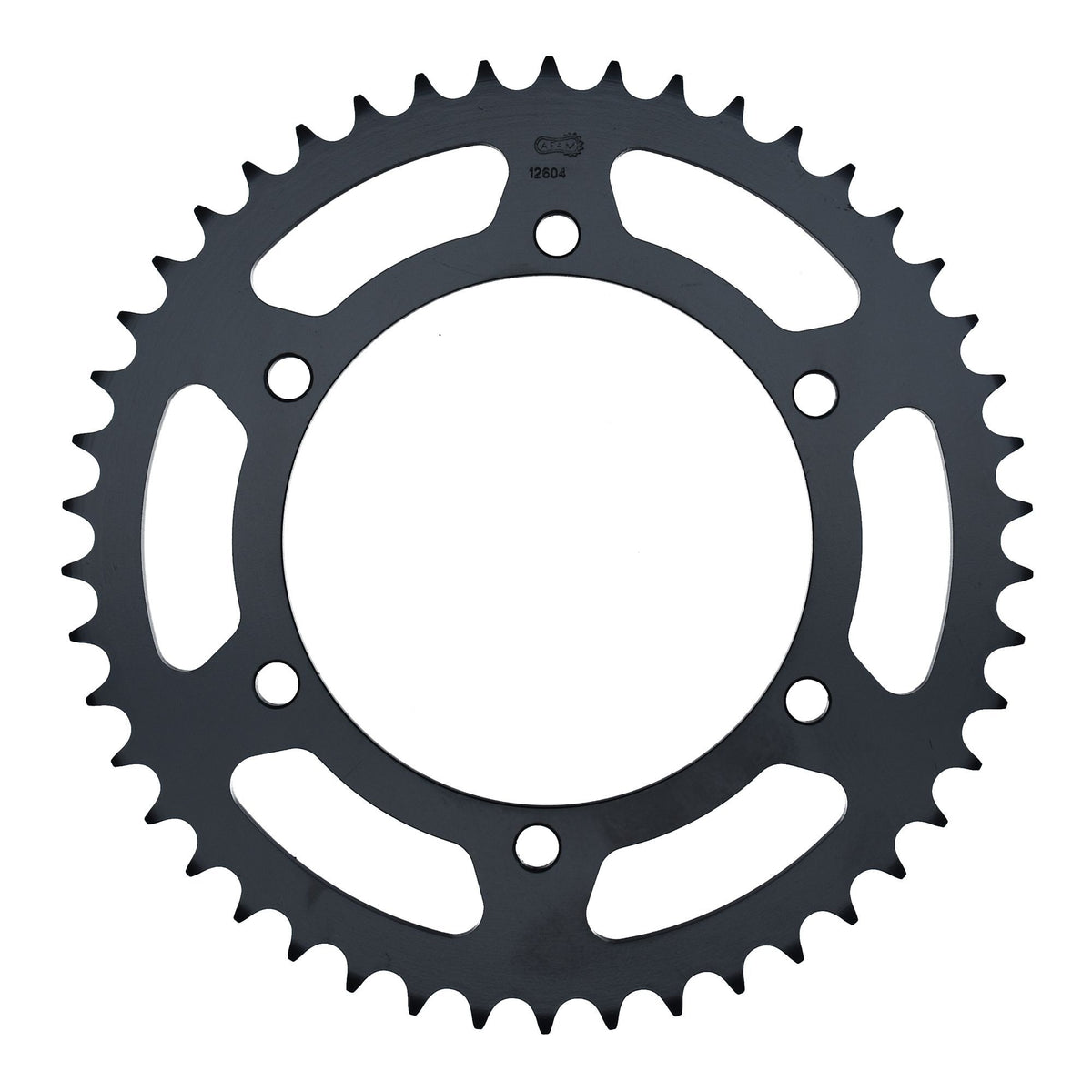

• Rear sprocket: AFAM steel rear sprocket #520 46 teeth - a12604.46
• Gear ratio front sprocket-chain-rear sprocket: 16-118-46

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
XS-Ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport and off-road

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-35040

Suitable for

Yamaha 501 - 750 cc XJ6 Diversion RJ22 2013
Yamaha 501 - 750 cc XJ6 Diversion RJ22 2014
