AFAM chain kit for Yamaha XJ6 Diversion ABS 13-16 520 XHR2G chain kit

AFAM Chain Kit for Yamaha XJ6 Diversion ABS 13-16 520 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit for Yamaha XJ6 Diversion ABS RJ22 2013-2016

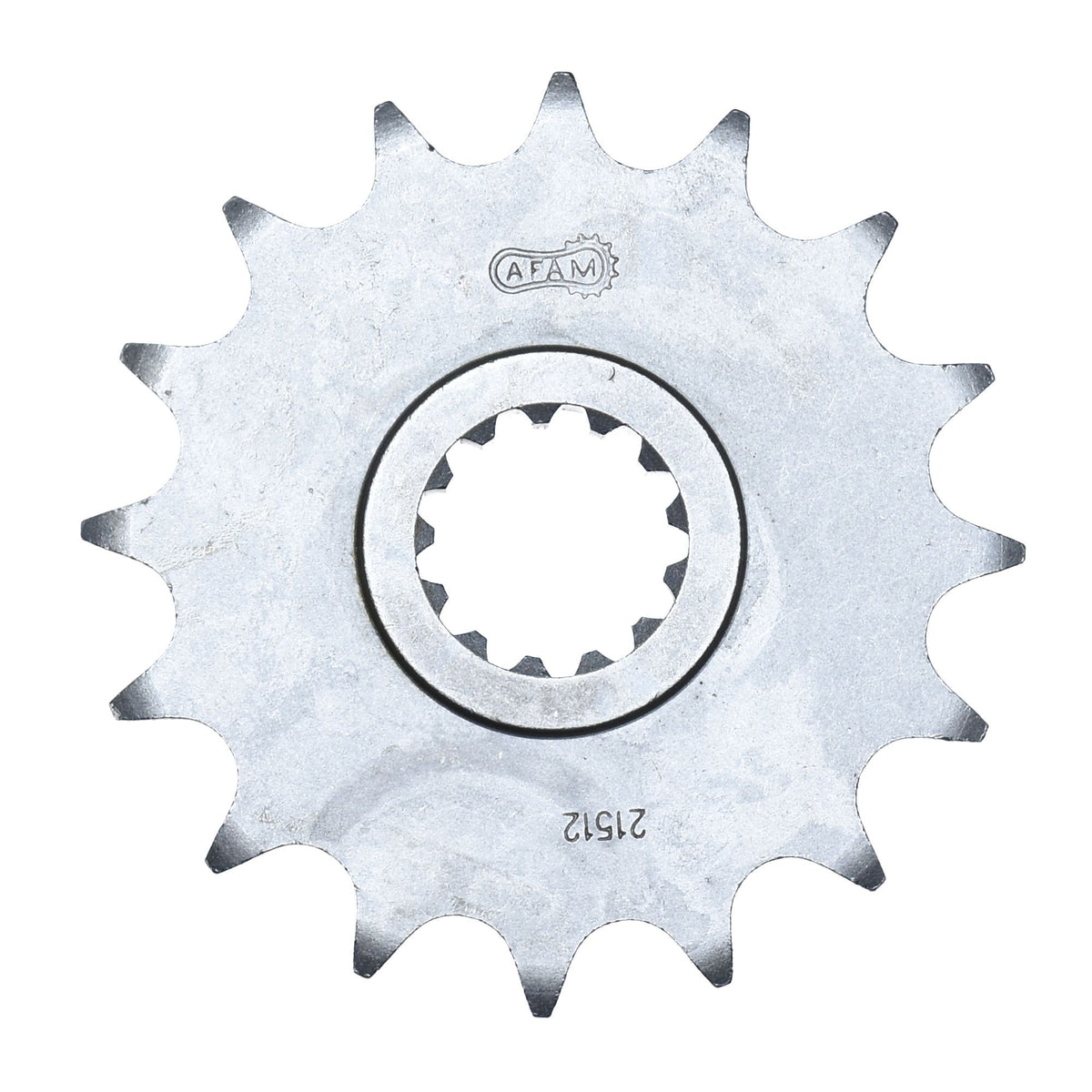

• Sprocket: AFAM sprocket #520 for XJ6 16 teeth - a21512.16
• Chain: AFAM chain 520 XHR2-G Xs-ring 118 with rivet link - a520xhr2.g.118

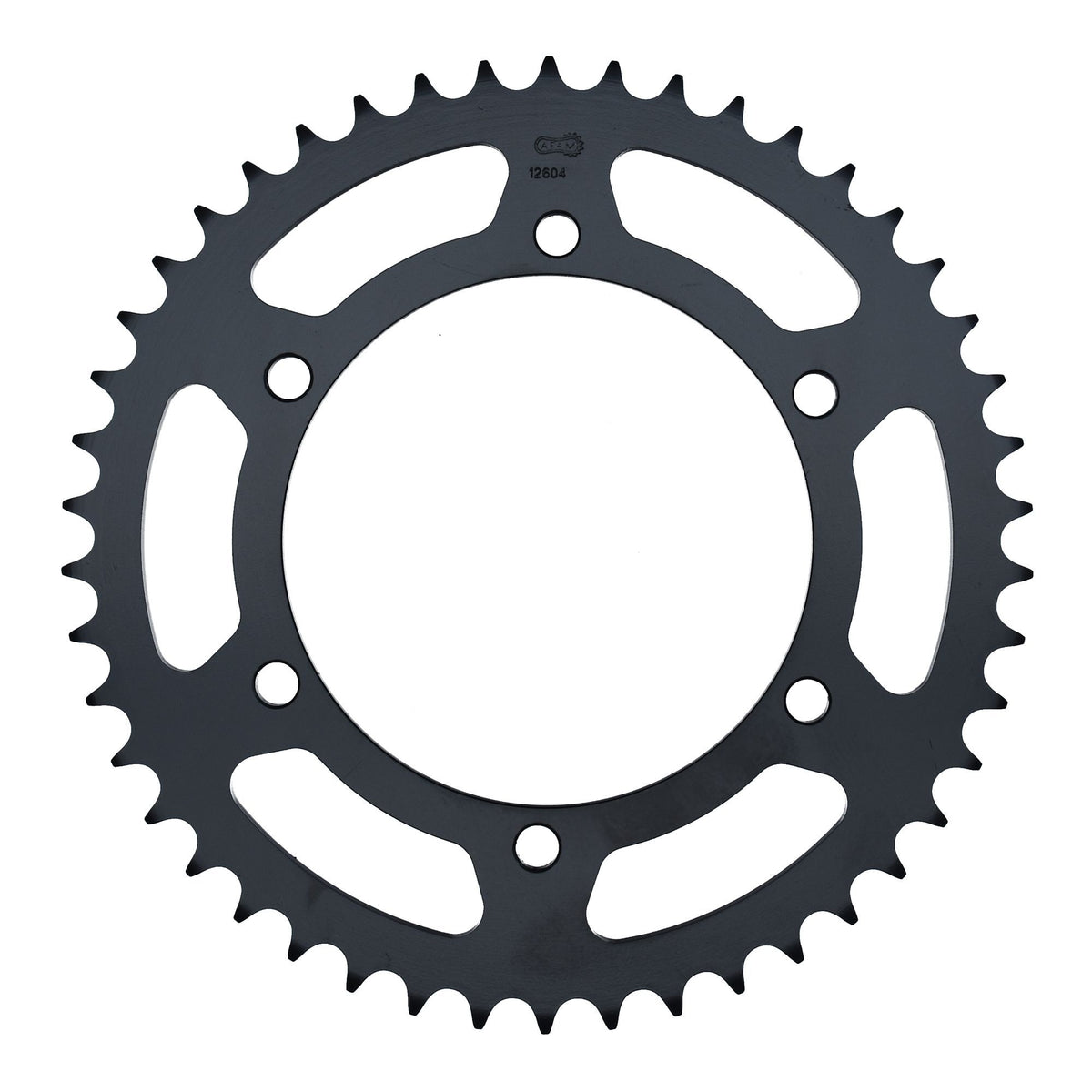

• Chain wheel: AFAM chain wheel STEEL #520 46 teeth - a12604.46
• Transmission ratio sprocket-chain-chain wheel: 16-118-46

AFAM 520 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-54502

Suitable for

Yamaha 501 - 750 cc XJ6 Diversion ABS RJ22 2013
Yamaha 501 - 750 cc XJ6 Diversion ABS RJ22 2014
Yamaha 501 - 750 cc XJ6 Diversion ABS RJ22 2015
Yamaha 501 - 750 cc XJ6 Diversion ABS RJ22 2016
