AFAM chain kit for Yamaha XJ6 Diversion F ABS 13-16 520 XHR2G chain kit

AFAM chain kit for Yamaha XJ6 Diversion F ABS 13-16 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha XJ6 Diversion F ABS RJ22 2013-2016

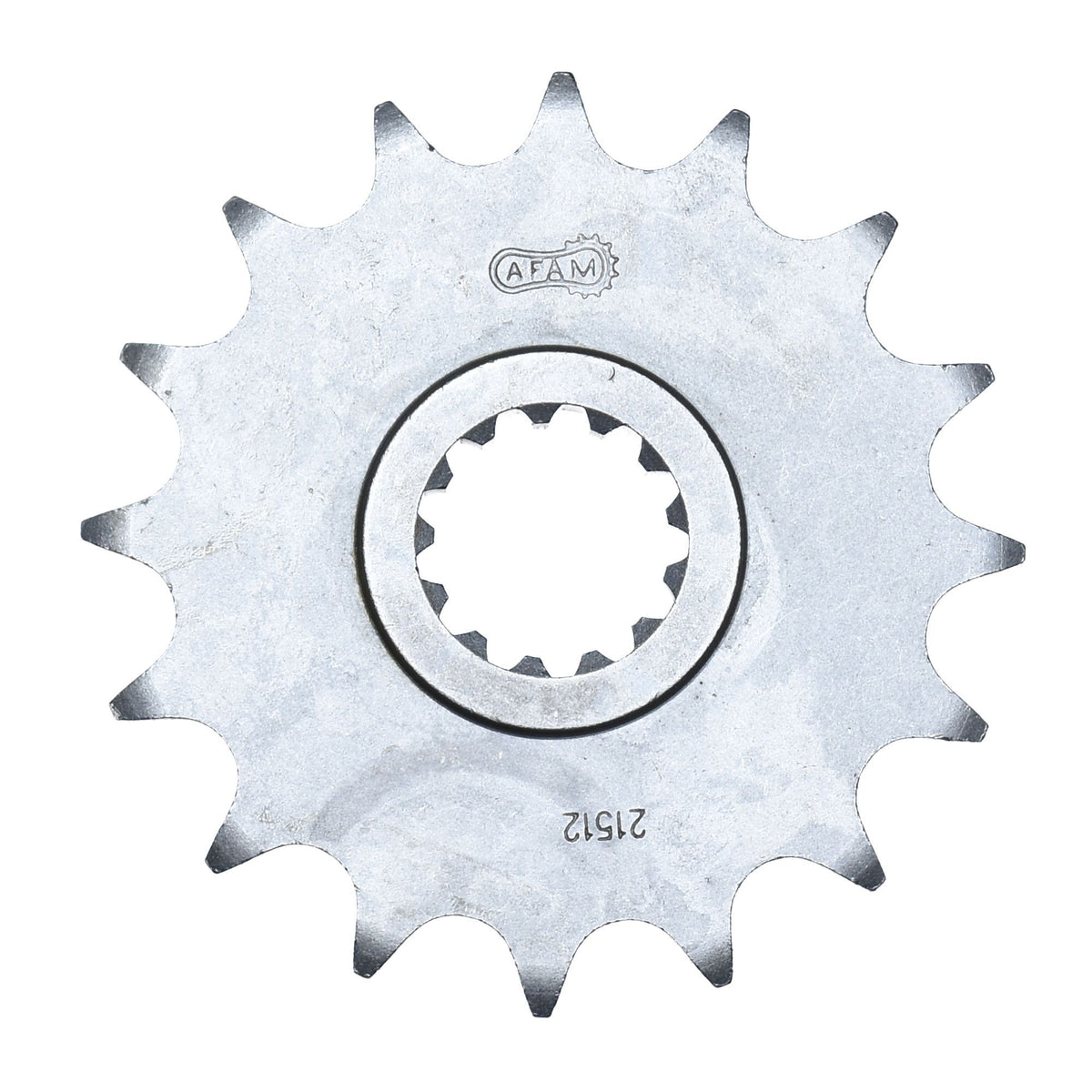

• Front sprocket: AFAM front sprocket #520 for XJ6 16 teeth - a21512.16
• Chain: AFAM chain 520 XHR2-G Xs-ring 118 with rivet link - a520xhr2.g.118

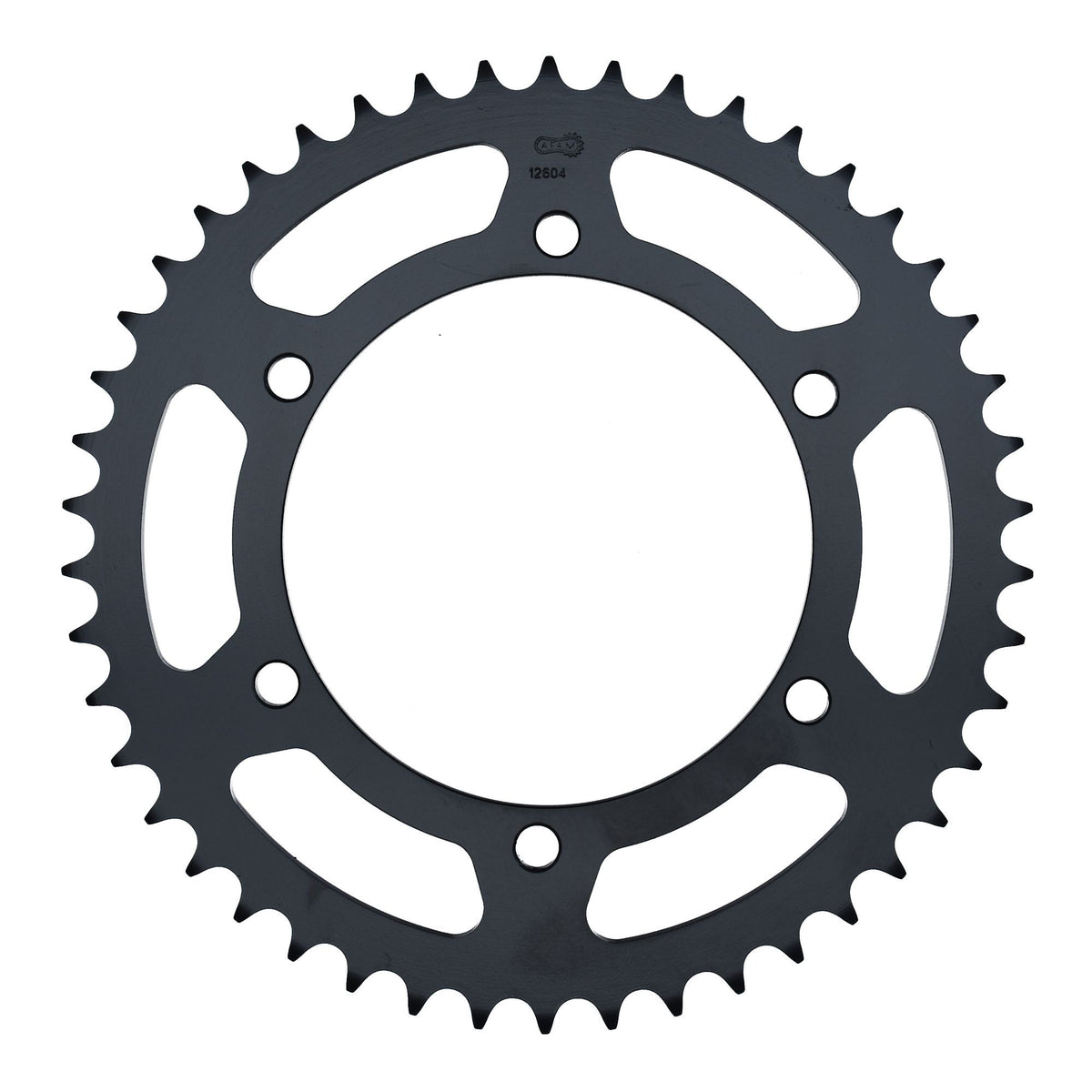

• Rear sprocket: AFAM STEEL rear sprocket #520 46 teeth - a12604.46
• Gear ratio front sprocket-chain-rear sprocket: 16-118-46

AFAM 520 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-44057

Suitable for

Yamaha 501 - 750 cc XJ6 Diversion F ABS RJ22 2013
Yamaha 501 - 750 cc XJ6 Diversion F ABS RJ22 2014
Yamaha 501 - 750 cc XJ6 Diversion F ABS RJ22 2015
Yamaha 501 - 750 cc XJ6 Diversion F ABS RJ22 2016
