AFAM chain kit for Yamaha XJ6 Diversion F ABS 13-16 520 XMR3 chain kit

AFAM chain kit for Yamaha XJ6 Diversion F ABS 13-16 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

Components of the chain kit Yamaha XJ6 Diversion F ABS RJ22 2013-2016

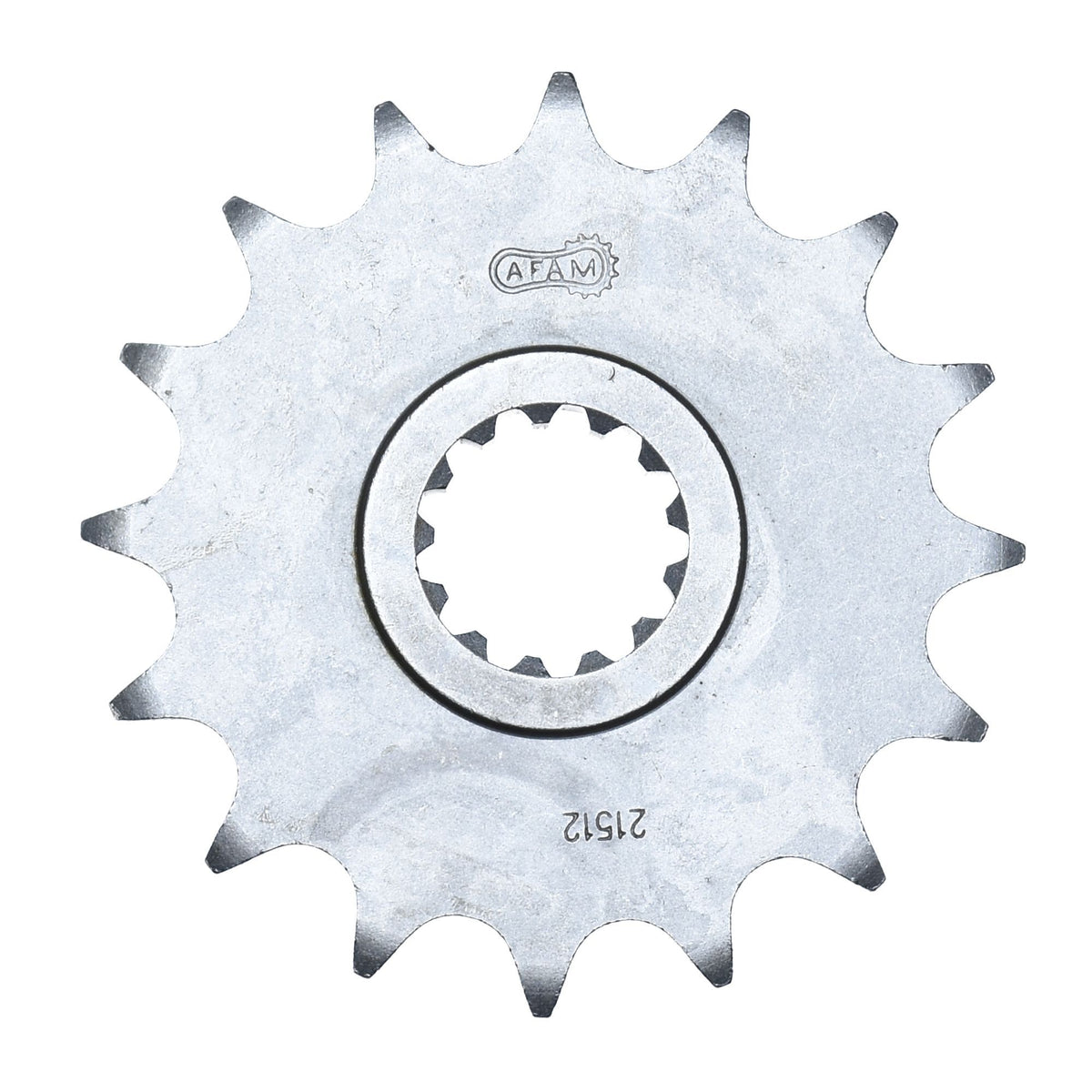

• Front sprocket: AFAM front sprocket #520 f. XJ6 16 teeth - a21512.16
• Chain: AFAM chain 520 XMR3 Xs-ring 118 w. rivet link - a520xmr3.118

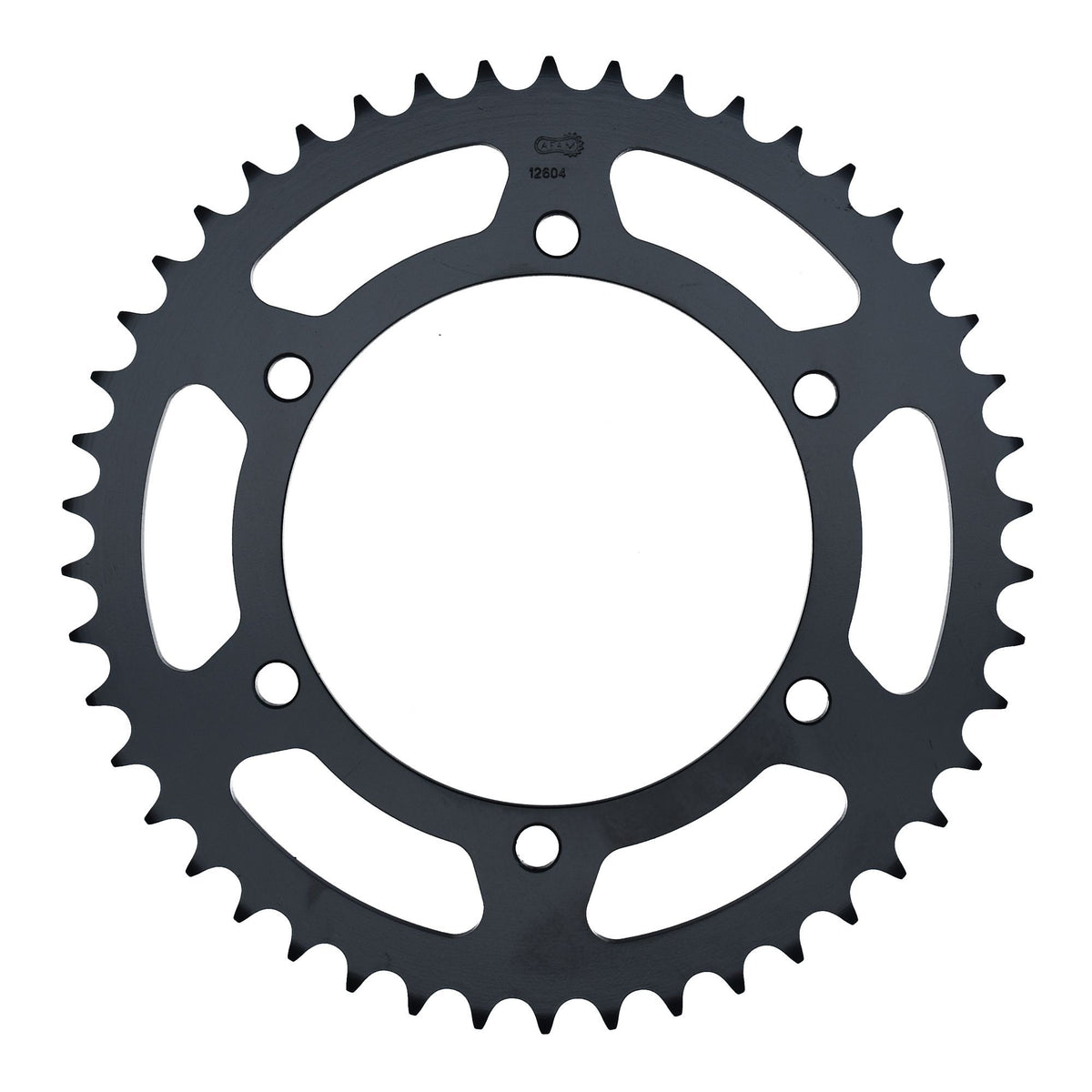

• Rear sprocket: AFAM rear sprocket STEEL #520 46 teeth - a12604.46
• Gear ratio front sprocket-chain-rear sprocket: 16-118-46

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-54505

Fits

Yamaha 501 - 750 cc XJ6 Diversion F ABS RJ22 2013
Yamaha 501 - 750 cc XJ6 Diversion F ABS RJ22 2014
Yamaha 501 - 750 cc XJ6 Diversion F ABS RJ22 2015
Yamaha 501 - 750 cc XJ6 Diversion F ABS RJ22 2016
