AFAM chain kit for Yamaha XJR 1300 99-01 530 XSR2G chain kit

AFAM chain kit for Yamaha XJR 1300 99-01 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

Components of the chain kit Yamaha XJR 1300 RP02 1999-2001

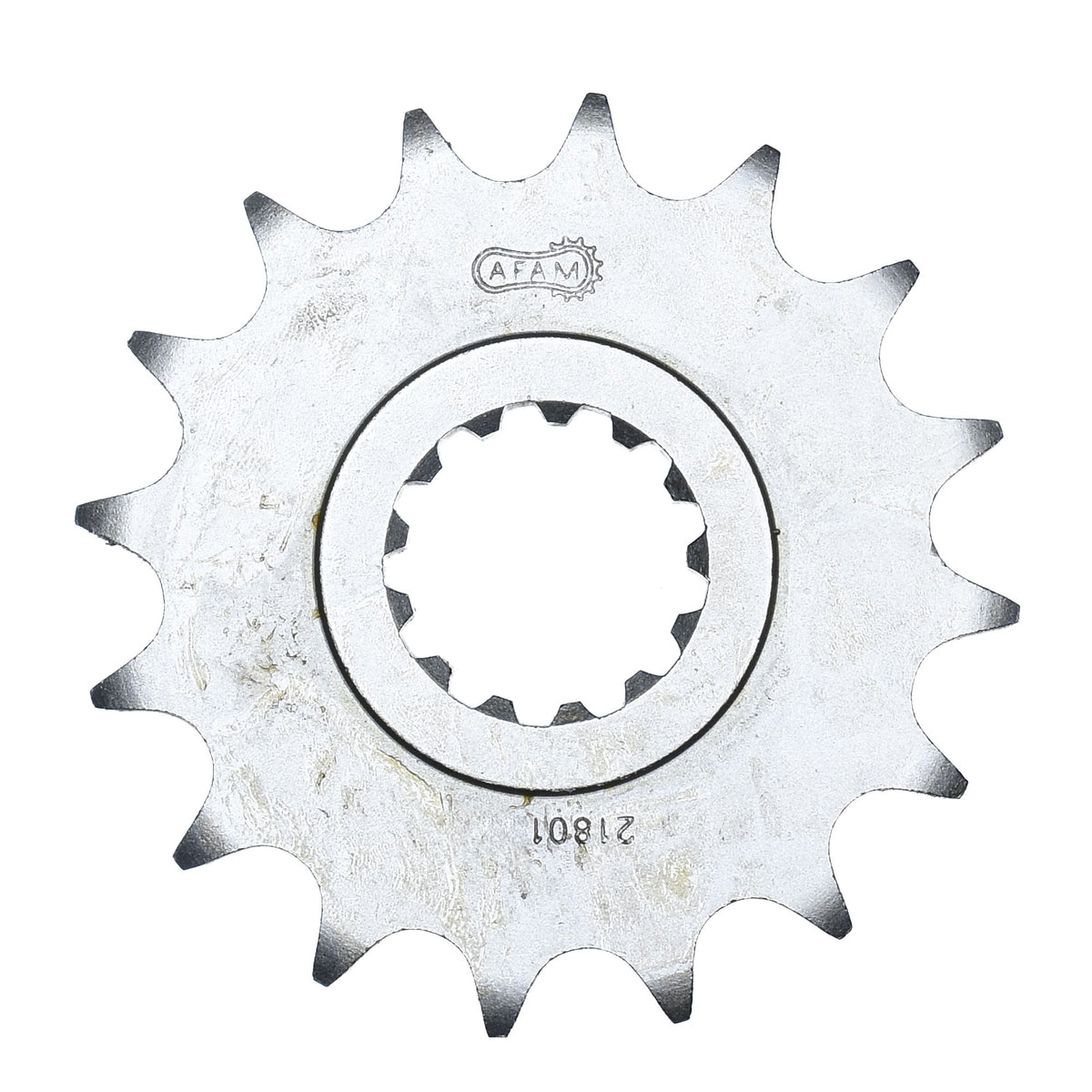

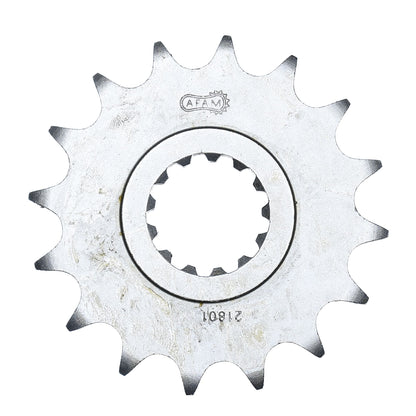

• Front sprocket: AFAM front sprocket #530 17 teeth - a21801.17
• Chain: AFAM chain 530 XSR2-G Xs-Ring 110 w. rivet link - a530xsr2.g.110

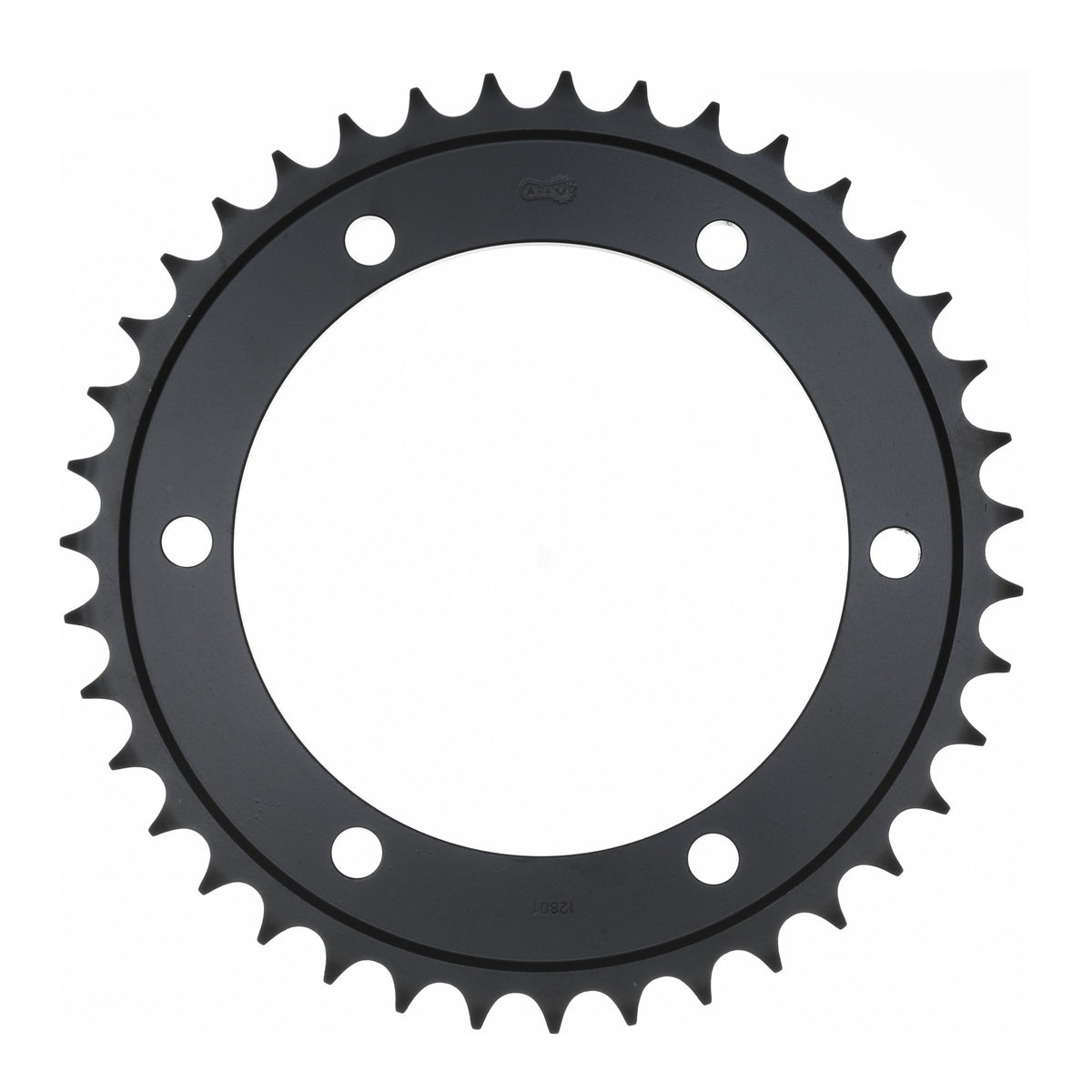

• Rear sprocket: AFAM rear sprocket STEEL #530 38 teeth - a12801.38
• Gear ratio front sprocket-chain-rear sprocket: 17-110-38

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical specifications:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-51565

Fits

Yamaha over 1001 cc XJR 1300 RP02 1999
Yamaha over 1001 cc XJR 1300 RP02 2000
Yamaha over 1001 cc XJR 1300 RP02 2001
