AFAM chain kit for Yamaha XJR 400, R 93-99 520 XMR3 chain kit

AFAM chain kit for Yamaha XJR 400, R 93-99 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha XJR 400, R 4HM 1993-1999

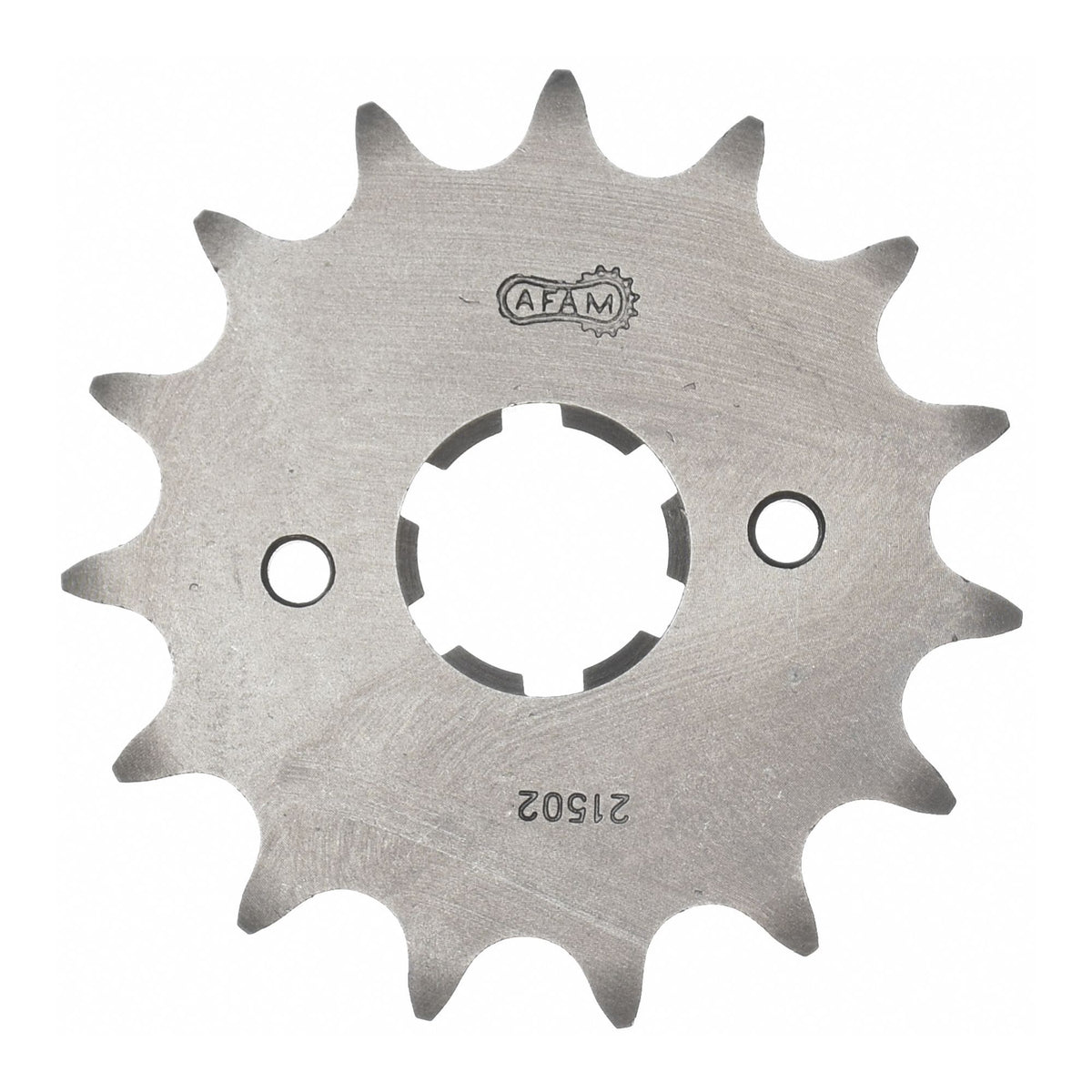

• Front sprocket: AFAM front sprocket #520 15 teeth - a21502.15
• Chain: AFAM chain 520 XMR3 Xs-ring 110 w. rivet link - a520xmr3.110

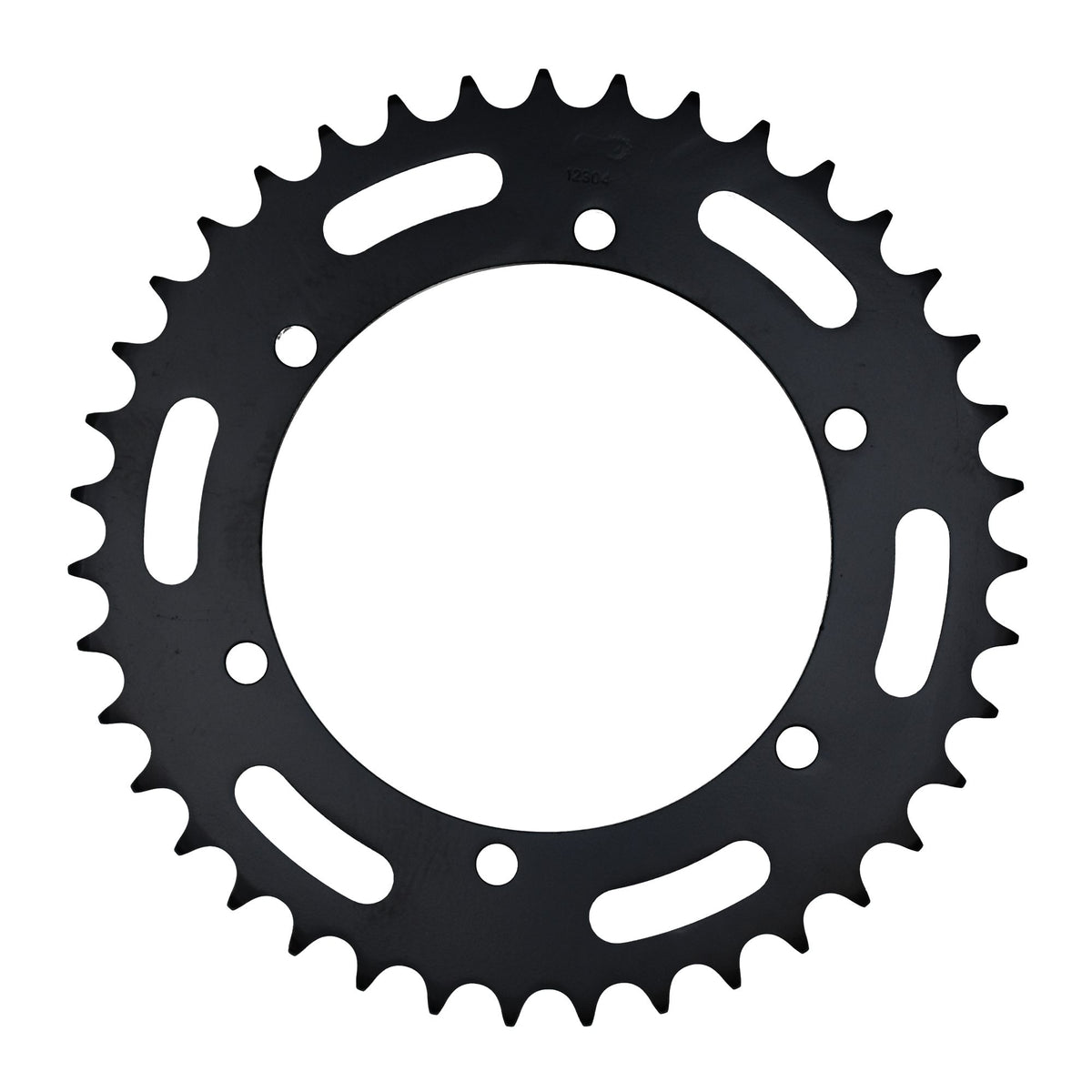

• Rear sprocket: AFAM rear sprocket STEEL #520 45 teeth - a12304.45
• Gear ratio front sprocket-chain-rear sprocket: 15-110-45

AFAM 520 XMR3

Reinforced chain with smooth-running properties
Xs-ring chain
Colour: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. Brand names are used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-51838

Suitable for

Yamaha 251 - 500 cc XJR 400, R 4HM 1993
Yamaha 251 - 500 cc XJR 400, R 4HM 1994
Yamaha 251 - 500 cc XJR 400, R 4HM 1995
Yamaha 251 - 500 cc XJR 400, R 4HM 1996
Yamaha 251 - 500 cc XJR 400, R 4HM 1997
Yamaha 251 - 500 cc XJR 400, R 4HM 1998
Yamaha 251 - 500 cc XJR 400, R 4HM 1999
