AFAM chain kit for Yamaha XS 400 DOHC 82-84 530 XHR2G chain kit

AFAM chain kit for Yamaha XS 400 DOHC 82-84 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Yamaha XS 400 DOHC 12E 1982-1984

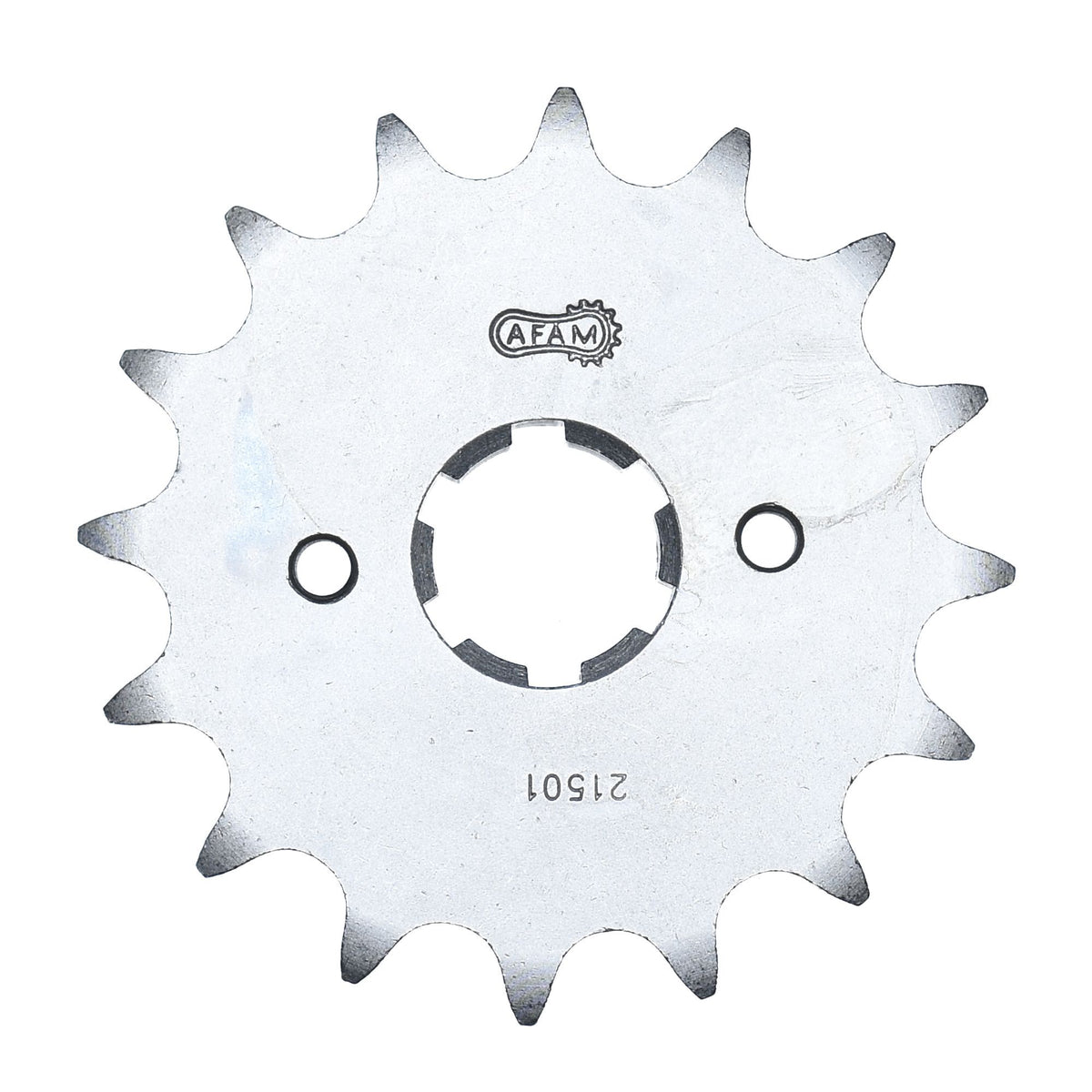

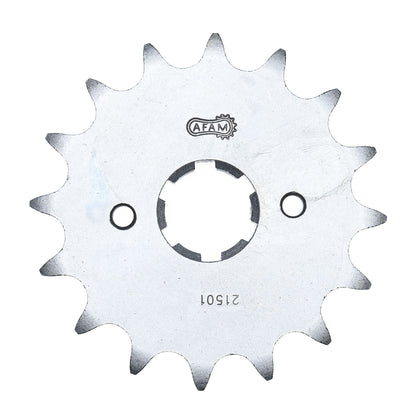

• Front sprocket: AFAM front sprocket #530 16 teeth - a21501.16
• Chain: AFAM chain 530 XHR2-G Xs-ring 102 with rivet link - a530xhr2.g.102

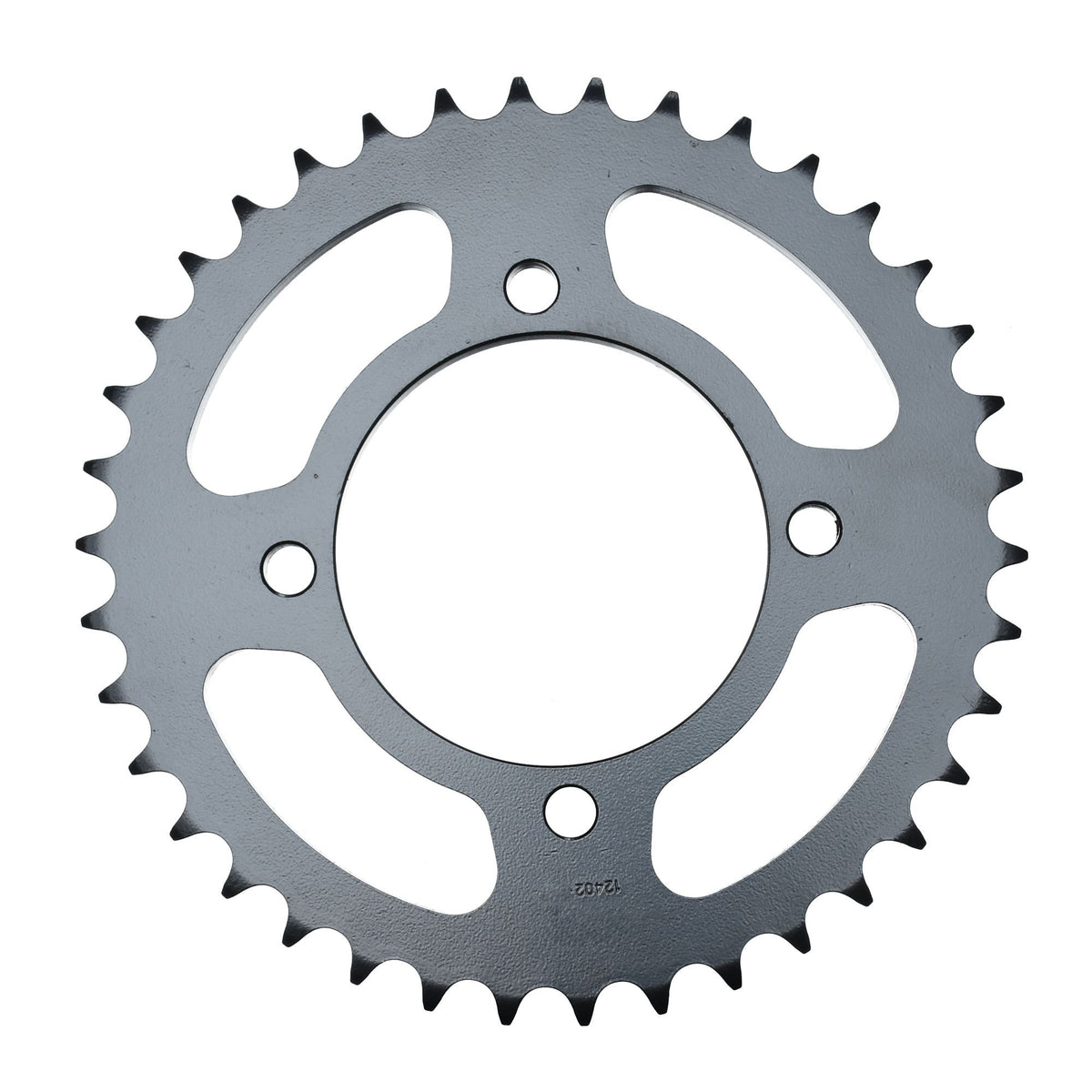

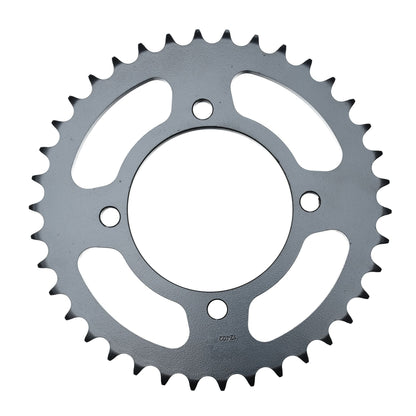

• Rear sprocket: AFAM rear sprocket STEEL #530 38 teeth - a12402.38
• Transmission ratio front sprocket-chain-rear sprocket: 16-102-38

AFAM 530 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-53938

Fits

Yamaha 251 - 500 cc XS 400 DOHC 12E 1982
Yamaha 251 - 500 cc XS 400 DOHC 12E 1983
Yamaha 251 - 500 cc XS 400 DOHC 12E 1984
