AFAM chain kit for Yamaha XS 650 75-83 530 XHR2G chain kit

AFAM chain kit for Yamaha XS 650 75-83 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha XS 650 447 1975-1983

• Front sprocket: AFAM front sprocket #530 17 teeth - a21600.17
• Chain: AFAM chain 530 XHR2-G XS-Ring 104 with rivet link - a530xhr2.g.104

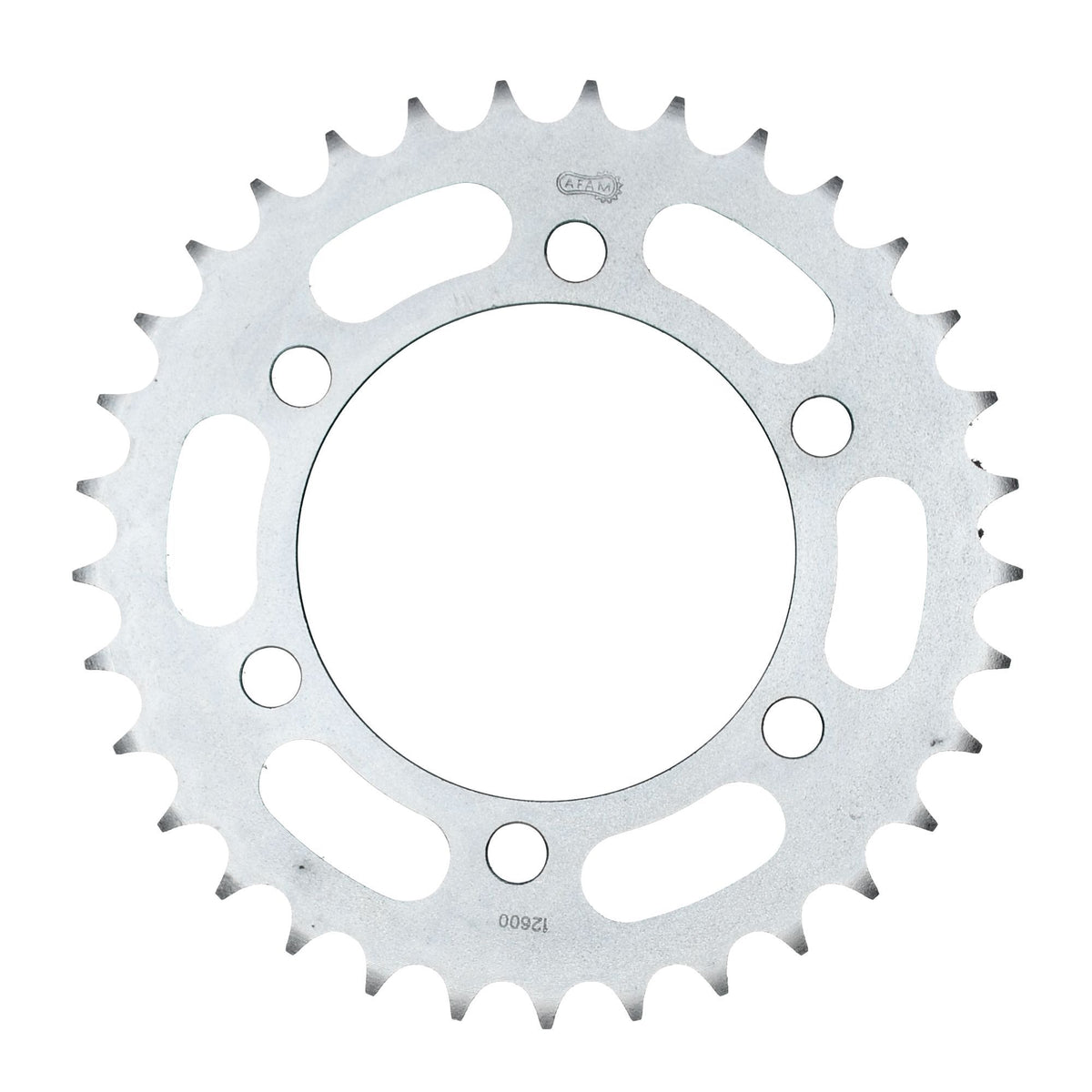

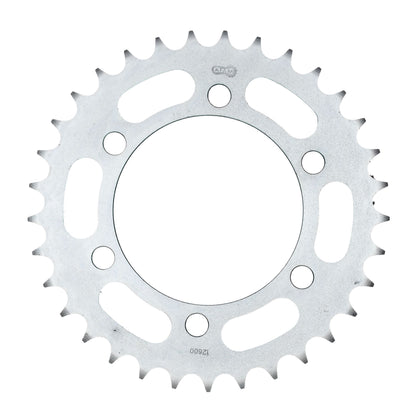

• Rear sprocket: AFAM rear sprocket STEEL #530 33 teeth - a12600.33
• Gear ratio front sprocket-chain-rear sprocket: 17-104-33

AFAM 530 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
XS-Ring chain
Color: Gold
Application by displacement: up to 1400 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-35173

Fits

Yamaha 501 - 750 cc XS 650 447 1975
Yamaha 501 - 750 cc XS 650 447 1976
Yamaha 501 - 750 cc XS 650 447 1977
Yamaha 501 - 750 cc XS 650 447 1978
Yamaha 501 - 750 cc XS 650 447 1979
Yamaha 501 - 750 cc XS 650 447 1980
Yamaha 501 - 750 cc XS 650 447 1981
Yamaha 501 - 750 cc XS 650 447 1982
Yamaha 501 - 750 cc XS 650 447 1983
