AFAM chain kit for Yamaha XSR 900 ABS 2022 525 XHR3G chain kit

AFAM Chain Kit for Yamaha XSR 900 ABS 2022 525 XHR3G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha XSR 900 ABS RN80 2022-2022

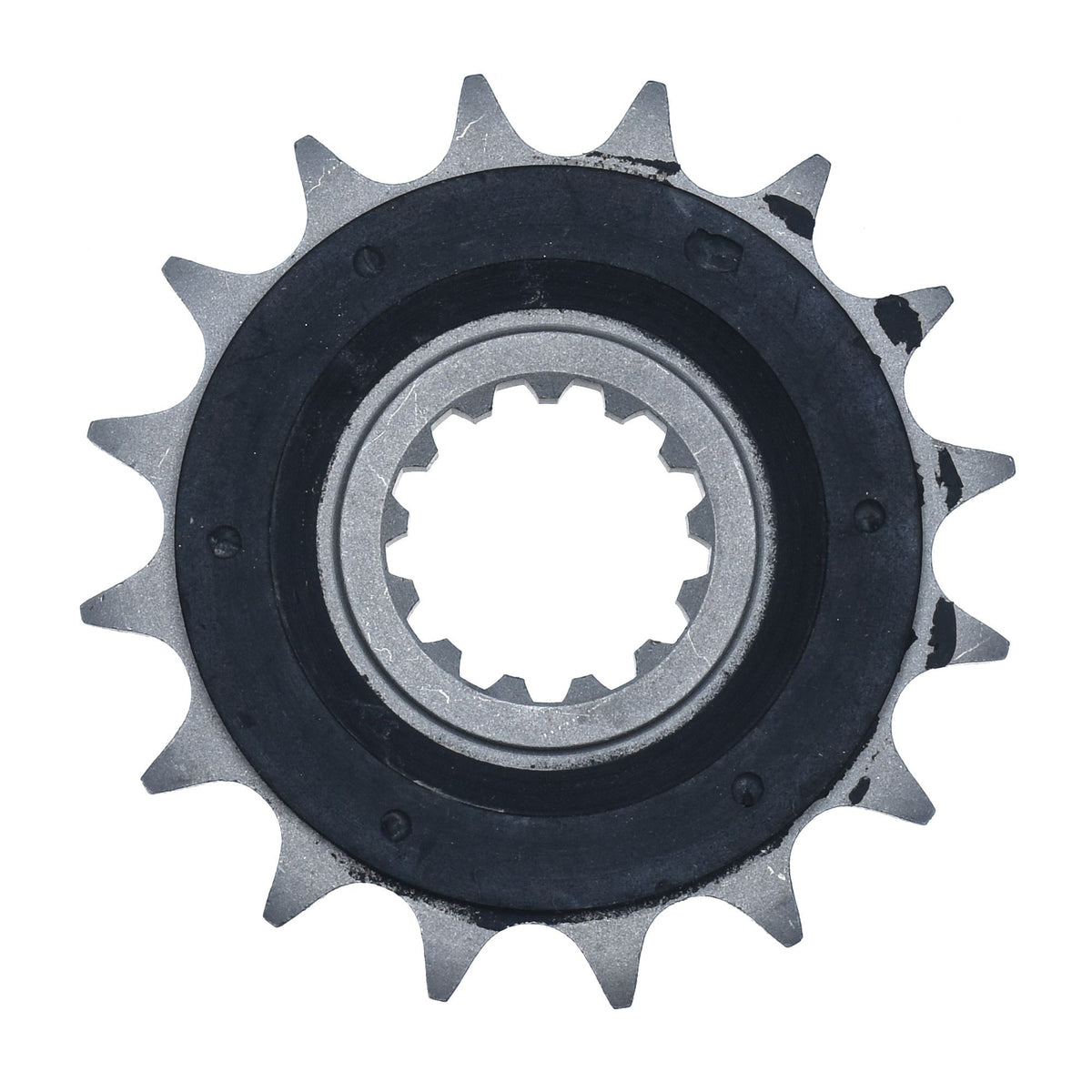

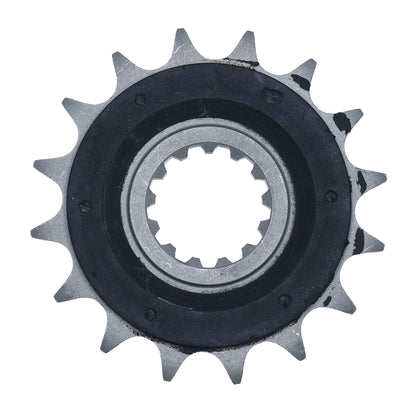

• Front sprocket: AFAM rubberized sprocket #525 Silent Sprocket 16 teeth - a21607oem.16
• Chain: AFAM chain 525 XHR3-G Xs-Ring 118 links with rivet link - a525xhr3.g.118

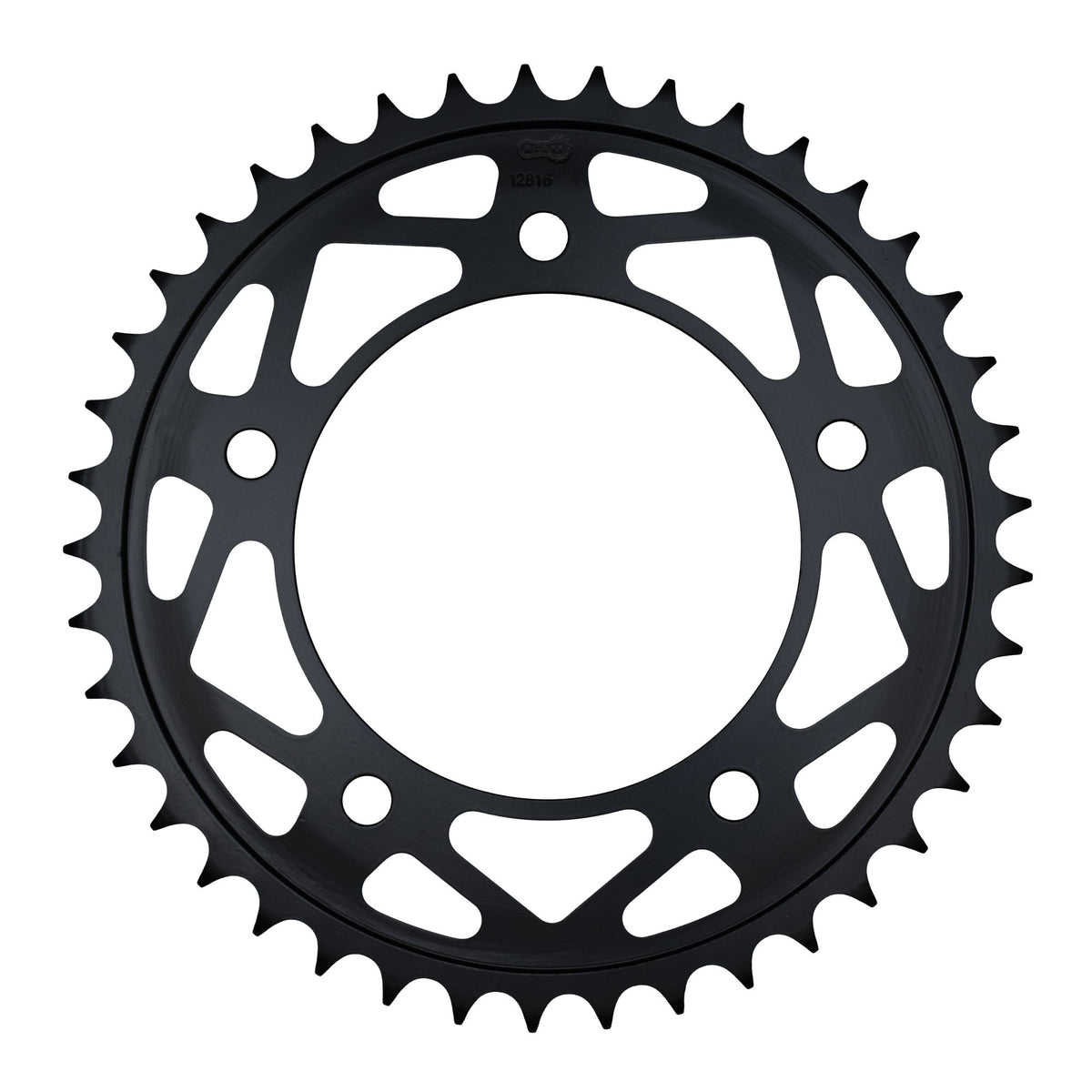

• Rear sprocket: AFAM STEEL sprocket #525 45 teeth - a12816.45
• Gear ratio sprocket-chain-rear sprocket: 16-118-45

AFAM 525 XHR3-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-78651

Suitable for

Yamaha 751 - 1000 cc XSR 900 ABS RN80 2022
