AFAM chain kit for Yamaha XSR 900 ABS 23-24 525 XSR2G chain kit

AFAM Chain Kit for Yamaha XSR 900 ABS 23-24 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a matching connecting link.

Unless otherwise stated: Not an original part - Manufacturer names are mentioned for compatibility purposes only!

Components of the chain kit for Yamaha XSR 900 ABS 2023-2024

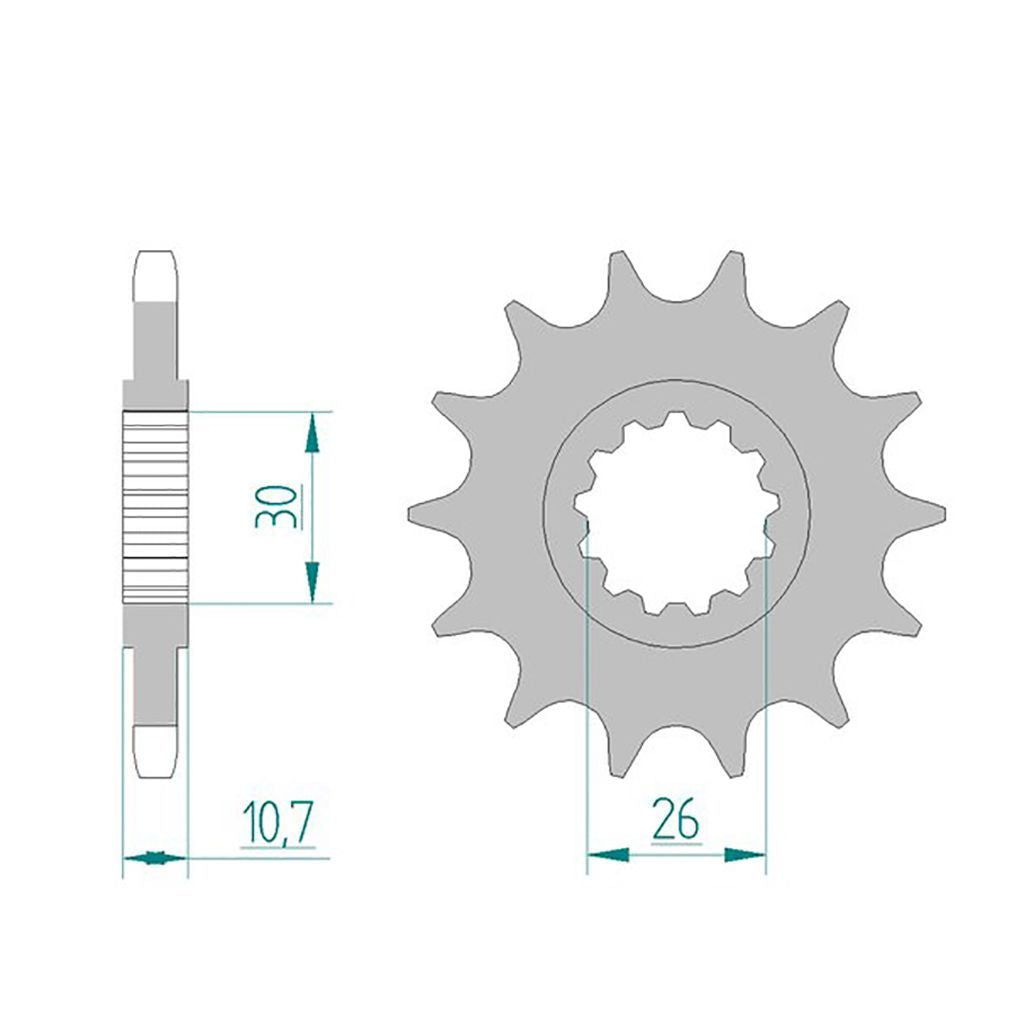

• Front sprocket: AFAM front sprocket #525 16 teeth - a21607.16
• Chain: AFAM chain 525 XSR2-G Xs-ring 118 with rivet link - a525xsr2.g.118

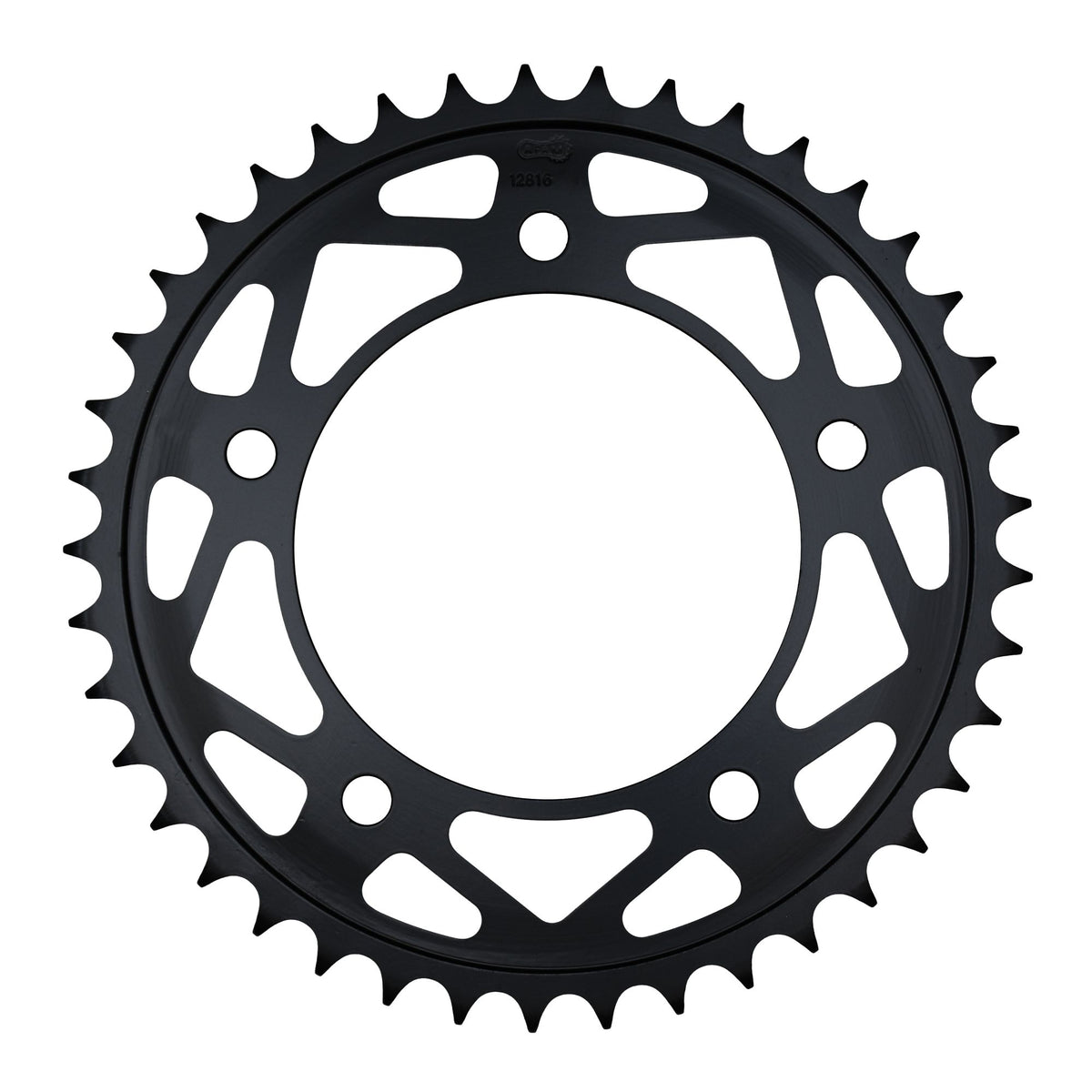

• Rear sprocket: AFAM rear sprocket STEEL #525 45 teeth - a12816.45
• Gear ratio front sprocket-chain-rear sprocket: 16-118-45

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78664

Suitable for

Yamaha 751 - 1000 cc XSR 900 ABS 2023
Yamaha 751 - 1000 cc XSR 900 ABS 2024
