AFAM chain kit for Yamaha XT 600 H 87-90 520 XSRG chain kit

AFAM chain kit for Yamaha XT 600 H 87-90 520 XSRG chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - Mention of manufacturer is for compatibility purposes only!

Components of the chain kit Yamaha XT 600 H 2KF 1987-1990

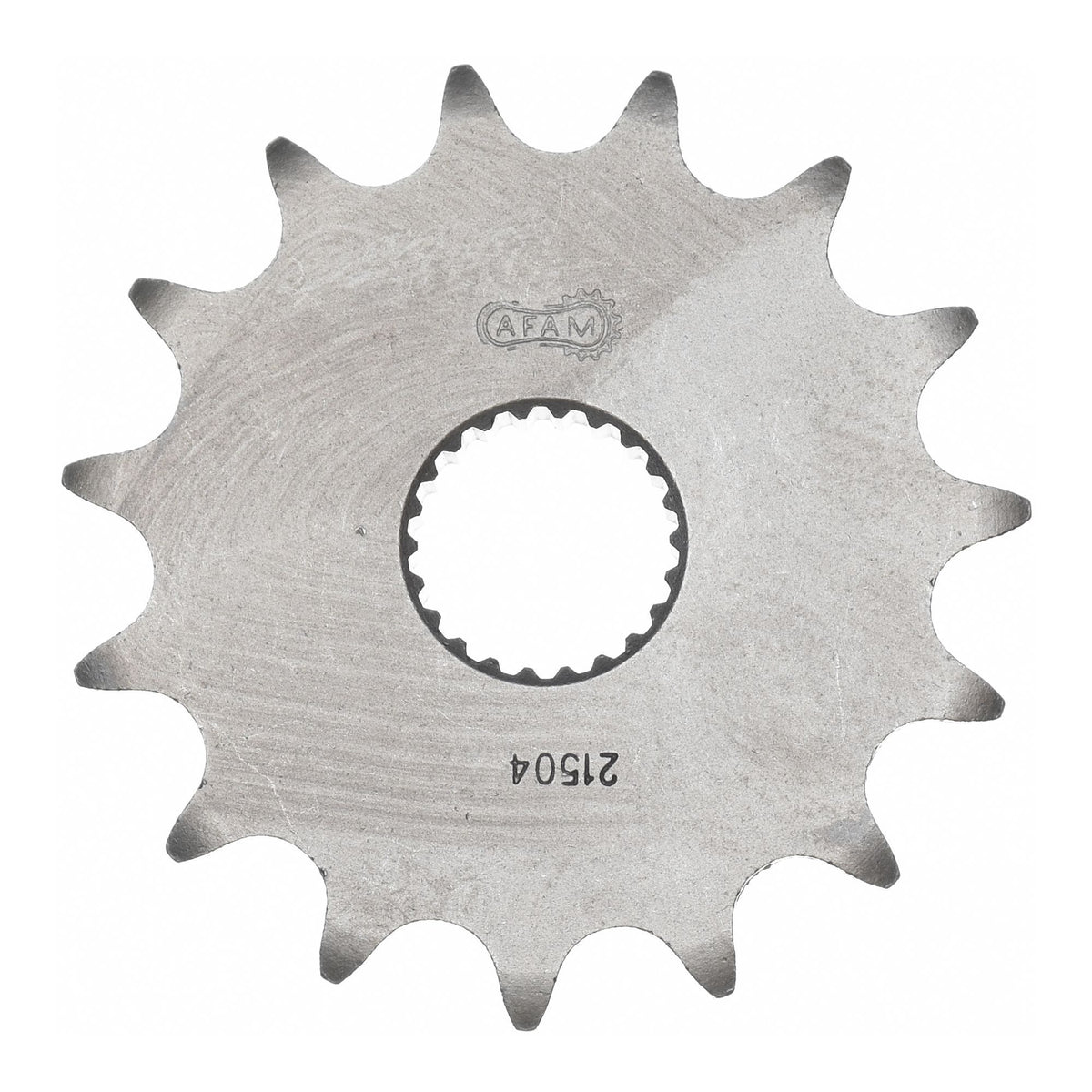

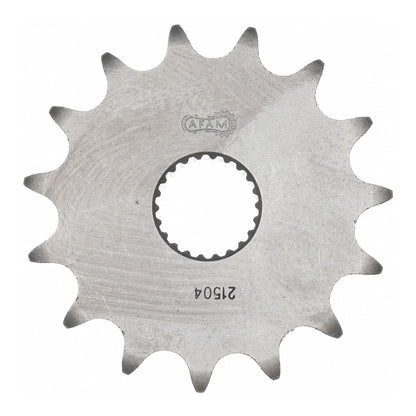

• Sprocket: AFAM sprocket #520 15 teeth - a21504.15
• Chain: AFAM chain 520 XSR-G Xs-ring 102 w. rivet link - a520xsr.g.102

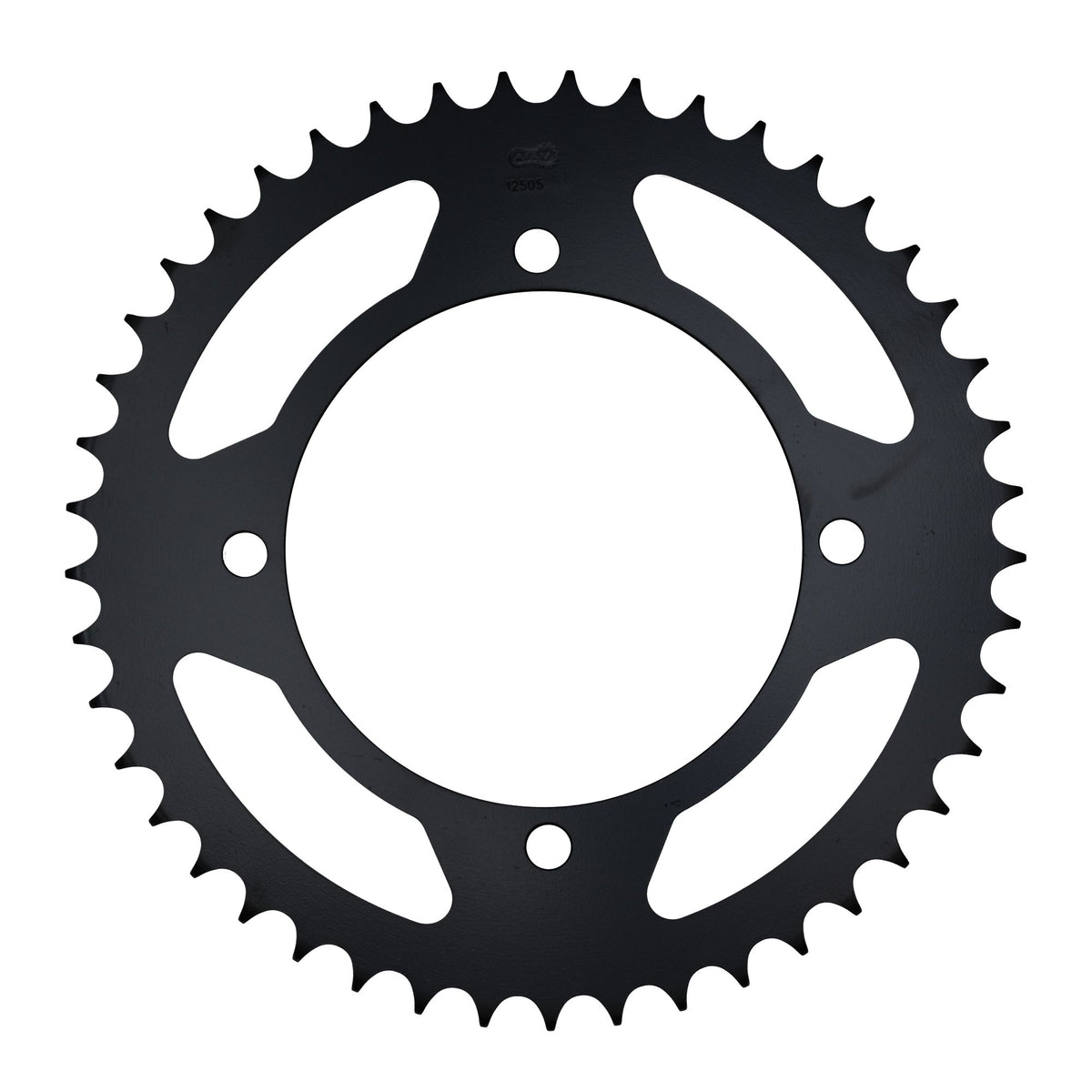

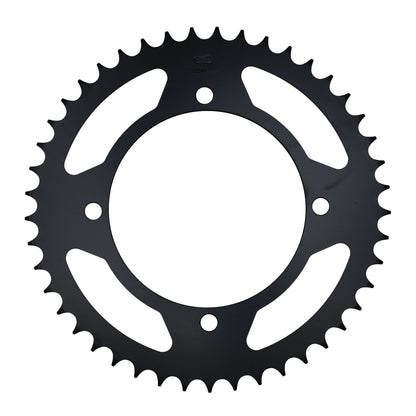

• Chain wheel: AFAM chain wheel STEEL #520 39 teeth - a12505.39
• Gear ratio sprocket-chain-chain wheel: 15-102-39

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-ring chain
Colour: Gold
Application by displacement: up to 800 cc / road, sport and off-road

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-29021

Suitable for

Yamaha 501 - 750 cc XT 600 H 2KF 1987
Yamaha 501 - 750 cc XT 600 H 2KF 1988
Yamaha 501 - 750 cc XT 600 H 2KF 1989
Yamaha 501 - 750 cc XT 600 H 2KF 1990
