AFAM chain kit for Yamaha XT 600 Z Tenere 86-87 520 XSRG chain kit

AFAM chain kit for Yamaha XT 600 Z Tenere 86-87 520 XSRG chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Yamaha XT 600 Z Tenere 1VJ 1986-1987

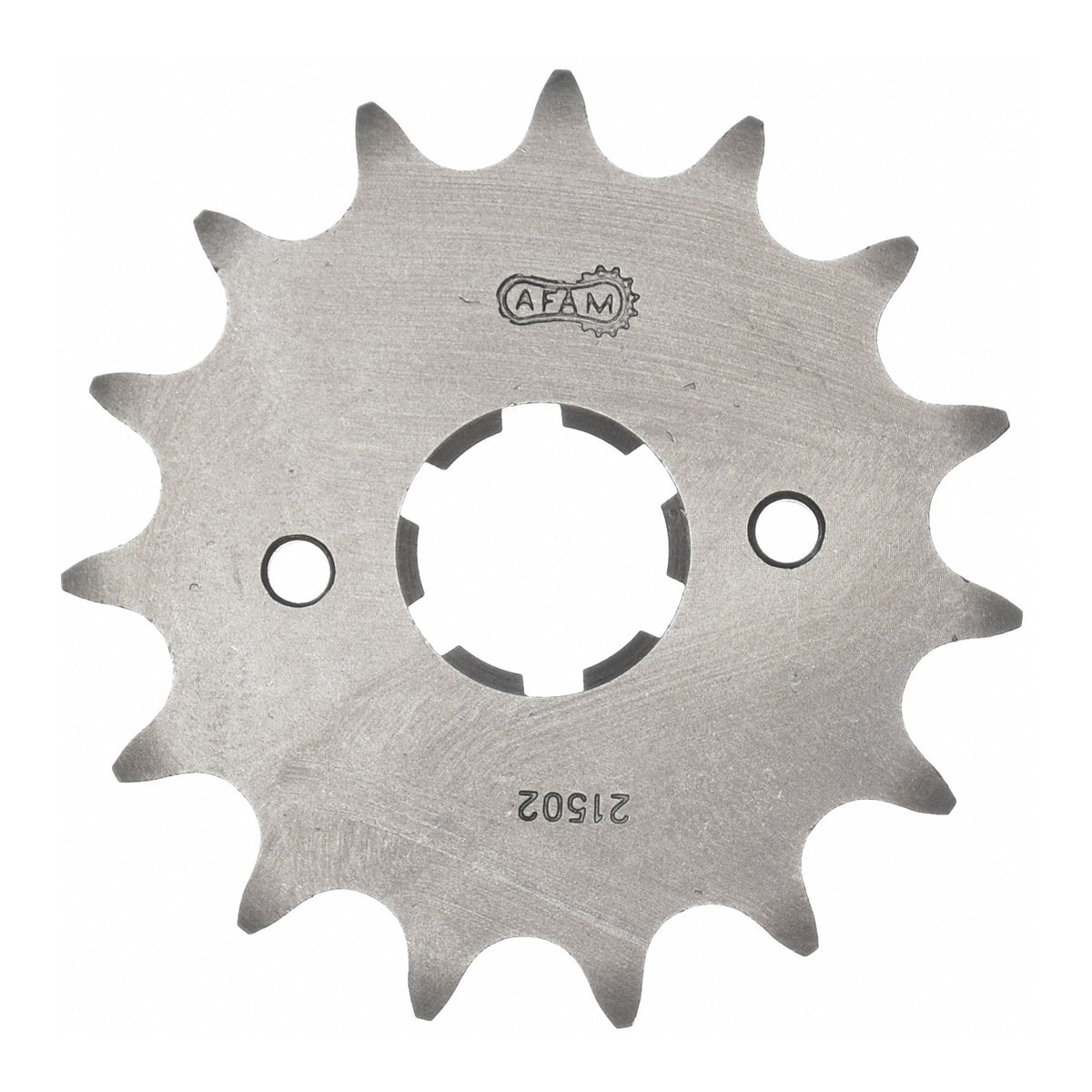

• Front sprocket: AFAM front sprocket #520 15 teeth - a21502.15
• Chain: AFAM chain 520 XSR-G Xs-ring 104 with rivet link - a520xsr.g.104

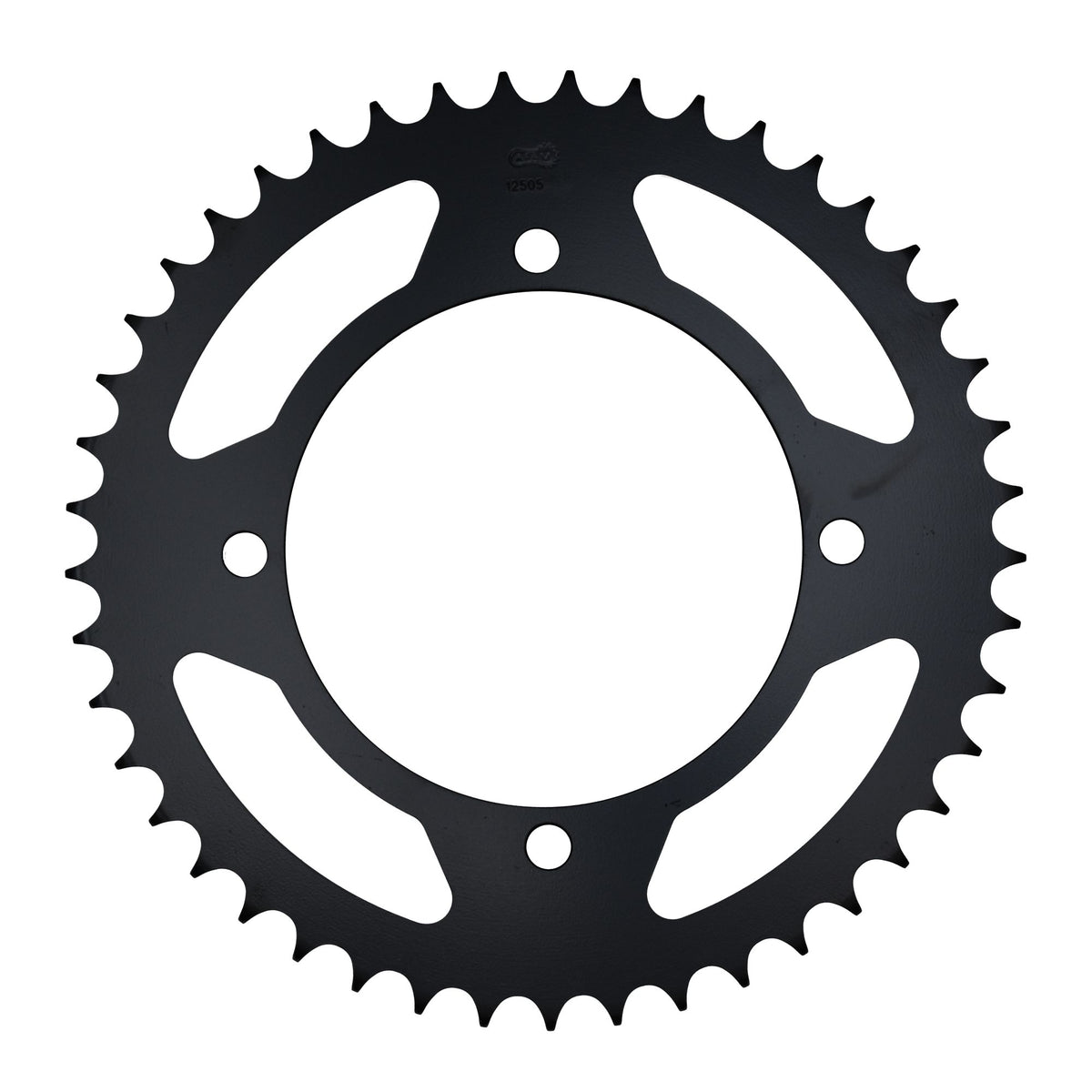

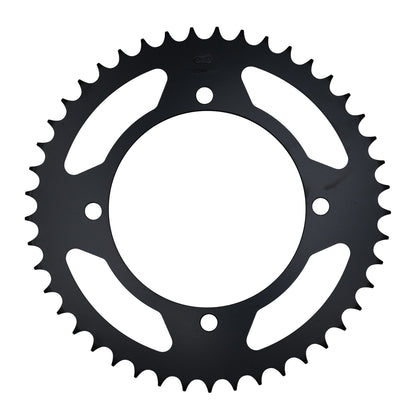

• Rear sprocket: AFAM steel rear sprocket #520 40 teeth - a12505.40
• Gear ratio front sprocket-chain-rear sprocket: 15-104-40

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport and off-road

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-29028

Suitable for

Yamaha 501 - 750 cc XT 600 Z Tenere 1VJ 1986
Yamaha 501 - 750 cc XT 600 Z Tenere 1VJ 1987
