AFAM chain kit for Yamaha XT 600 Z Tenere 90-91 520 XHR2G chain kit

AFAM chain kit for Yamaha XT 600 Z Tenere 90-91 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Yamaha XT 600 Z Tenere 3AJ 1990-1991

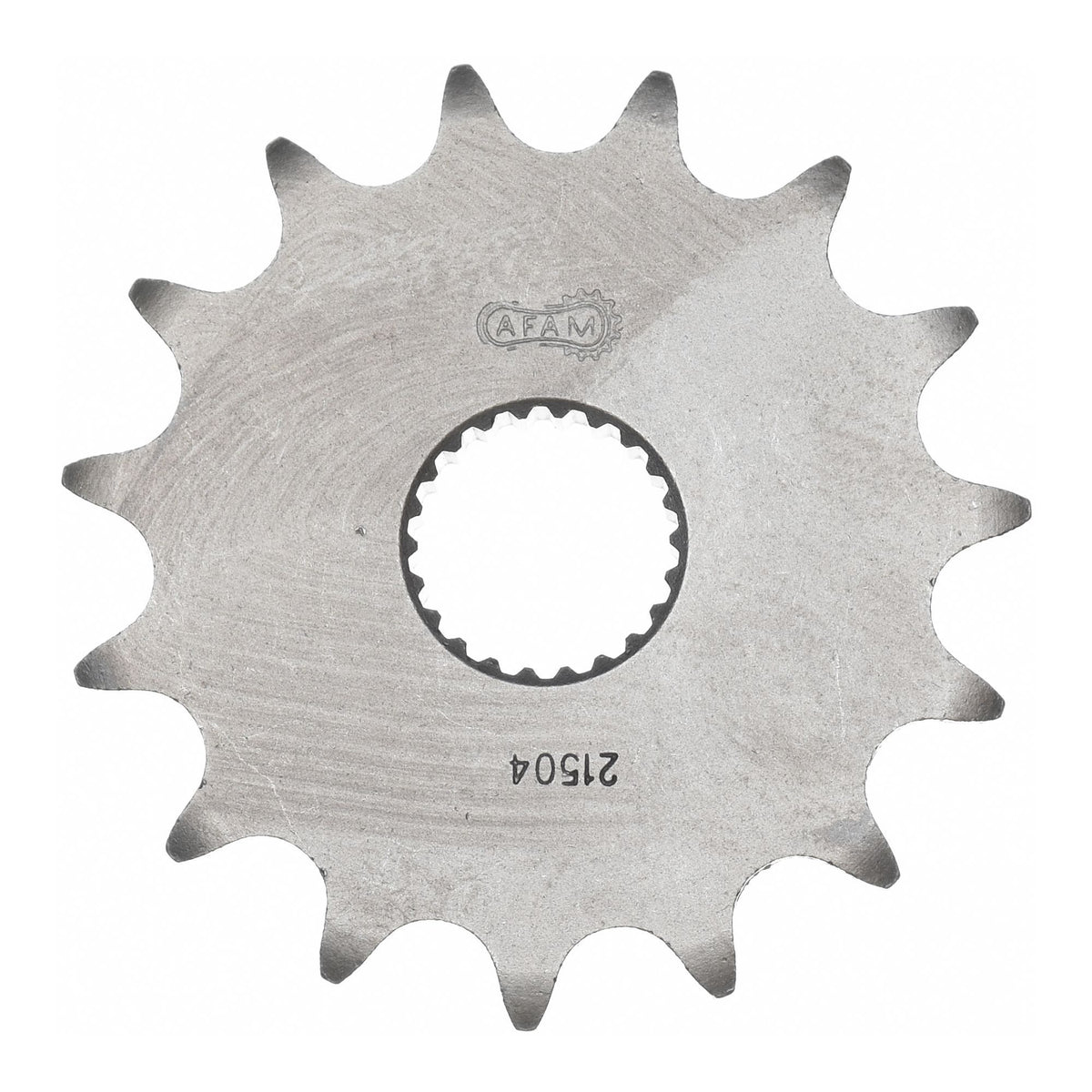

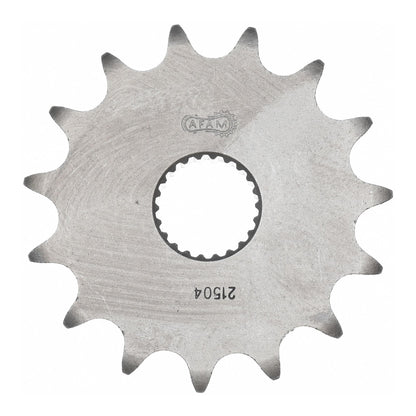

• Front sprocket: AFAM front sprocket #520 15 teeth - a21504.15
• Chain: AFAM chain 520 XHR2-G Xs-Ring 106 w. rivet link - a520xhr2.g.106

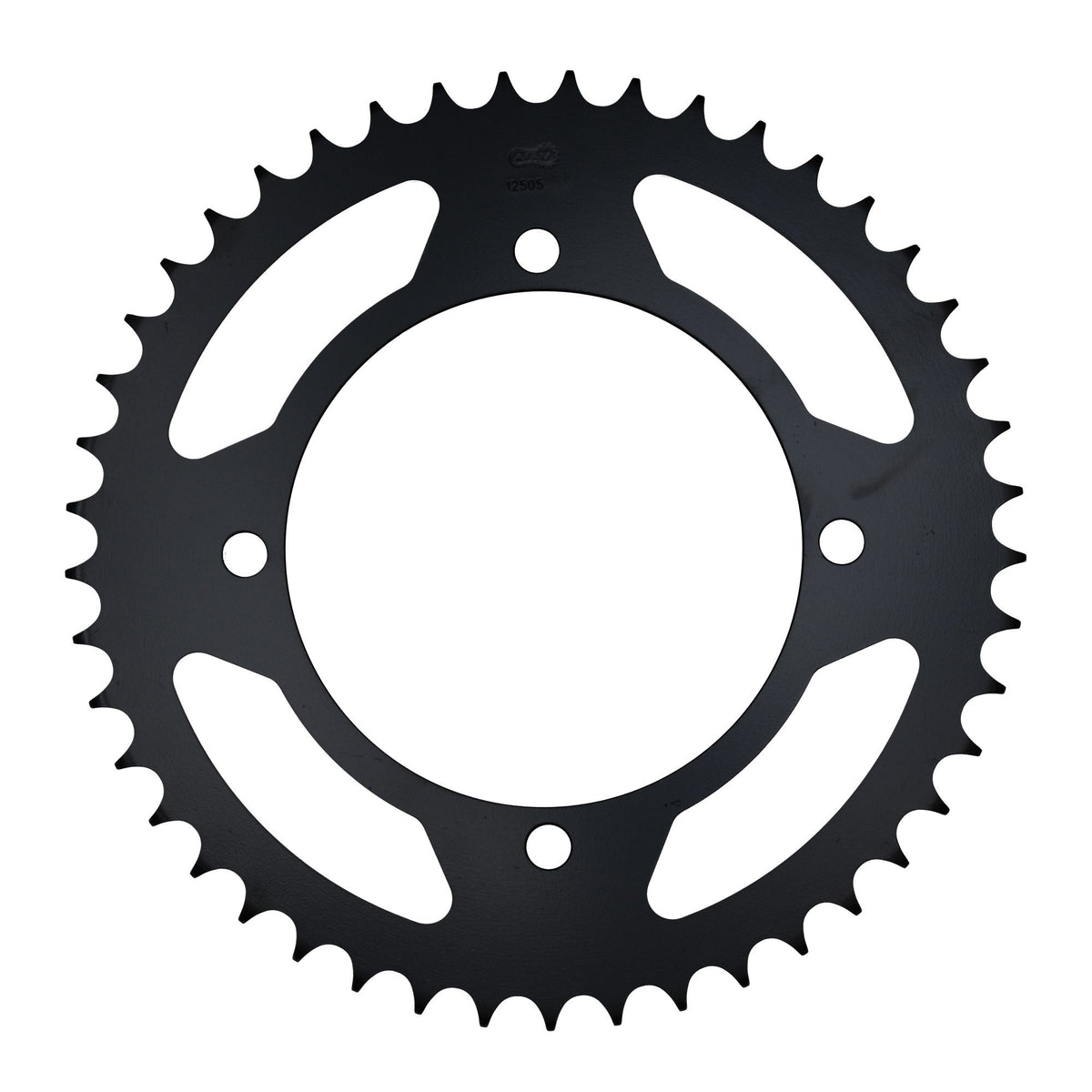

• Rear sprocket: AFAM rear sprocket STEEL #520 45 teeth - a12505.45
• Transmission ratio front sprocket-chain-rear sprocket: 15-106-45

AFAM 520 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-35082

Fits

Yamaha 501 - 750 cc XT 600 Z Tenere 3AJ 1990
Yamaha 501 - 750 cc XT 600 Z Tenere 3AJ 1991
